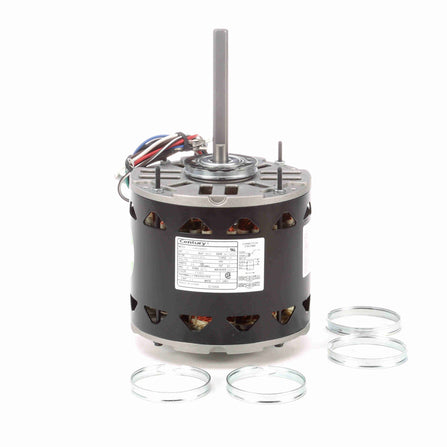

GENTEQ Motors D1056 Indoor Blower Motor

Product Description

The GENTEQ Motors D1056 is an indoor blower motor that operates at 208-230 volts and runs at 1075 RPM. Engineered for fan coil and dual wheel blower operations, this motor is a reliable choice for various heating and cooling applications.

• Reversible rotation for flexible installation.
• Capable of withstanding ambient temperatures of up to 40 degrees Celsius.
• Designed with class B insulation and sleeve bearings.

Product Highlights

This motor can easily accommodate different configurations due to its reversible design, making it suitable for a range of setups. The efficient operation and robust construction ensure longevity and dependable performance.

Product Information

Standard Information

• Brand: GENTEQ Motors
• MPN: D1056

Technical Specifications

• Horse Power: 1/2 HP
• Input Voltage: 208 - 230 Volts
• Speed: 1075 RPM
• Number of Speeds: 3
• Rated Current: 3.2 Amps
• Maximum Current: 4.3 Amps
• Rotation: Reversible
• Bearings: Sleeve
• Insulation Class: Class B
• Lead Reversible: Yes
• Ambient Temperature: 40 degrees Celsius
• Rings: 2-1/4 Rings with 2-1/2 Adapters included
• Shaft Extension: 4 inches
• Leads Length: 26 inches
• Frequency: 60 Hz
• Frame Size: 48
