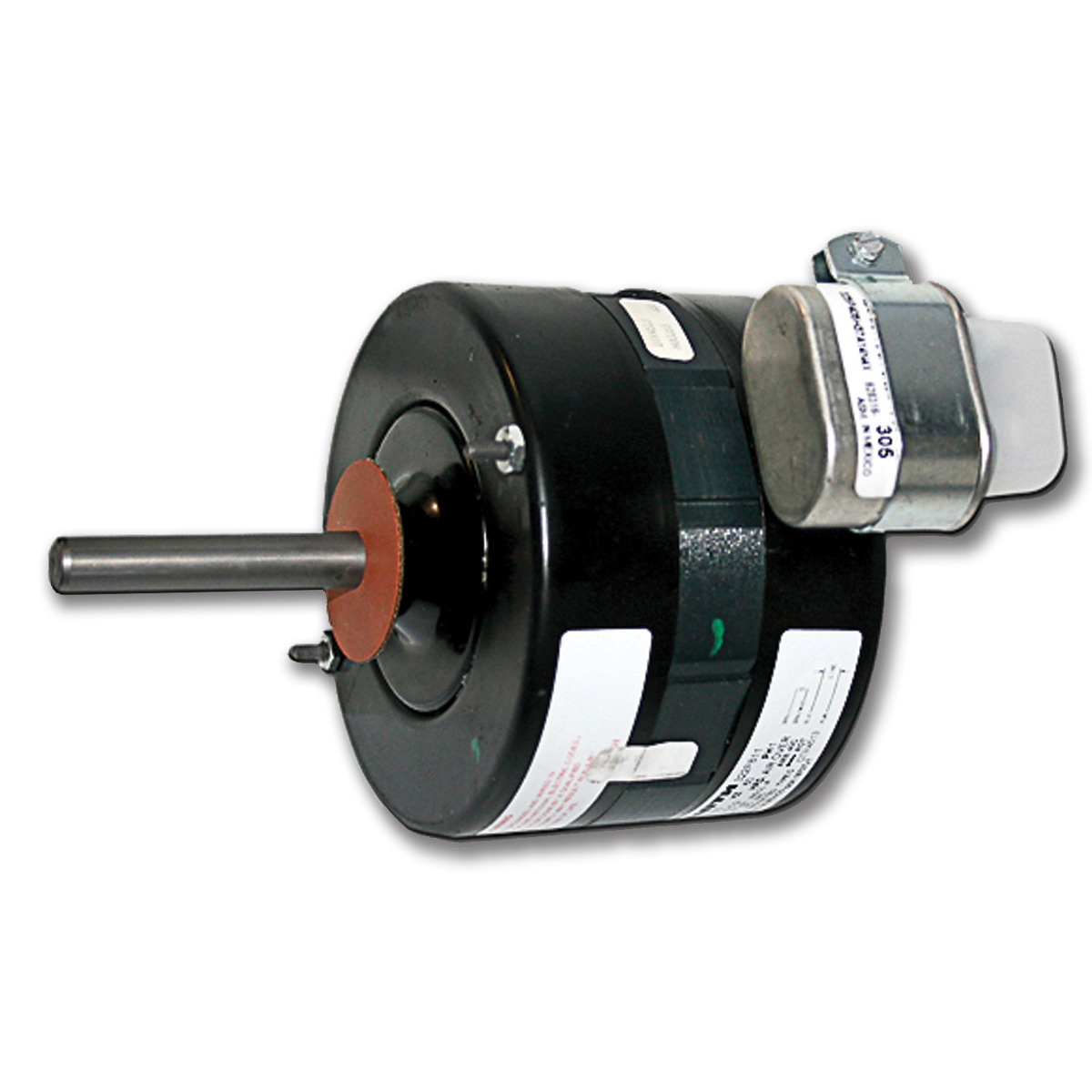

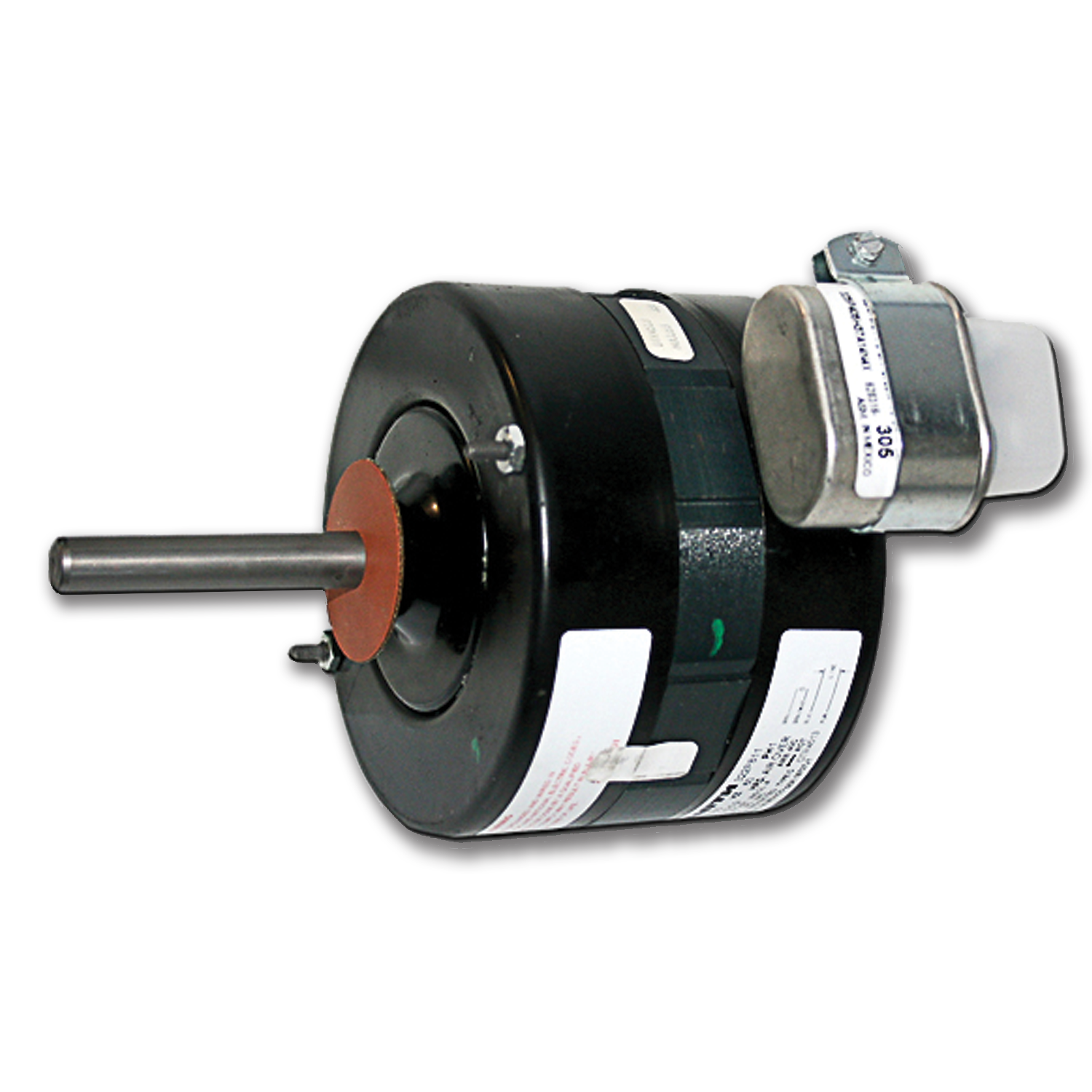

GENTEQ MOTORS D1050A FASCO OEM Replacement Motor 1/8 HP

Product Description

The GENTEQ MOTORS D1050A is a FASCO OEM replacement motor. This motor operates at two hundred thirty volts and sixty hertz. It provides one eighth horsepower and runs at fifteen hundred fifty RPM. The motor features an open air over enclosure and is designed for continuous duty. Automatic thermal protection ensures safety during operation. This motor is ideal for HVAC systems and applications needing a dependable motor.

• OEM Direct Replacement Motor
• Five Inch Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: Five Mfd-370 Volts (Supplied with Motor)

Product Highlights

The D1050A is suitable for many applications where a reliable motor performance is essential.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: D1050A

Technical Specifications

• Phase: 1
• Output HP: 1/8 HP
• Output KW: 0.10 kW
• Voltage: 230 V
• Speed: 1550 RPM
• Service Factor: 1
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.1 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Clockwise Shaft End
• Mounting: Round Belly Band
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Flat
• Overall Length: 6.68 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 2.95 in
