Genteq Motors 8110 Replacement Fan Motor

Product Description

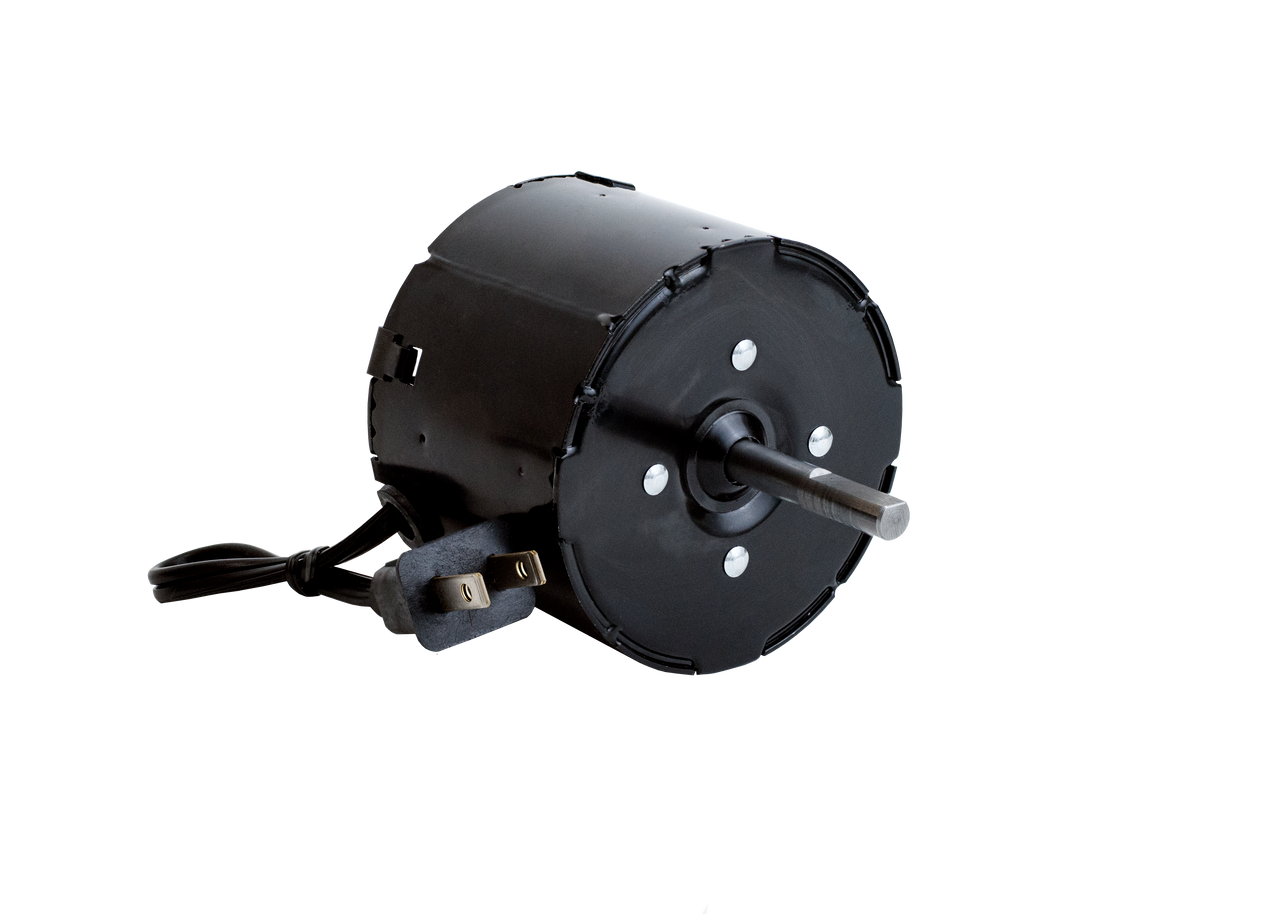

The Genteq Motors 8110 is a replacement fan motor specifically designed for various Nutone models. This motor operates at 115 volts and sixty Hertz, featuring a single speed of 1500 rotations per minute (RPM). The direction of the shaft end rotation is counter-clockwise (CCW). It is equipped with a five-sixteenths inch diameter shaft that is one and three-quarters inches long. A two-prong plug is included for electrical connection, along with two mounting bolts located on the lead end (back side).

• Single-speed motor operating at 1500 RPM.
• Counter-clockwise shaft end rotation.
• Includes a two-prong plug for connection.

Product Highlights

This motor is essential for replacing and maintaining compatible Nutone fan models.

Product Information

Standard Information

• Brand: Genteq Motors
• MPN: 8110

Technical Specifications

• RPM: 1500
• Output Current: 0.85 Amps
• Input Voltage: 115 Volt
• Frequency: 60 Hz
• Rotation: CCW Shaft End
• Shaft Size: 5/16 Dia. x 1.75 Long
