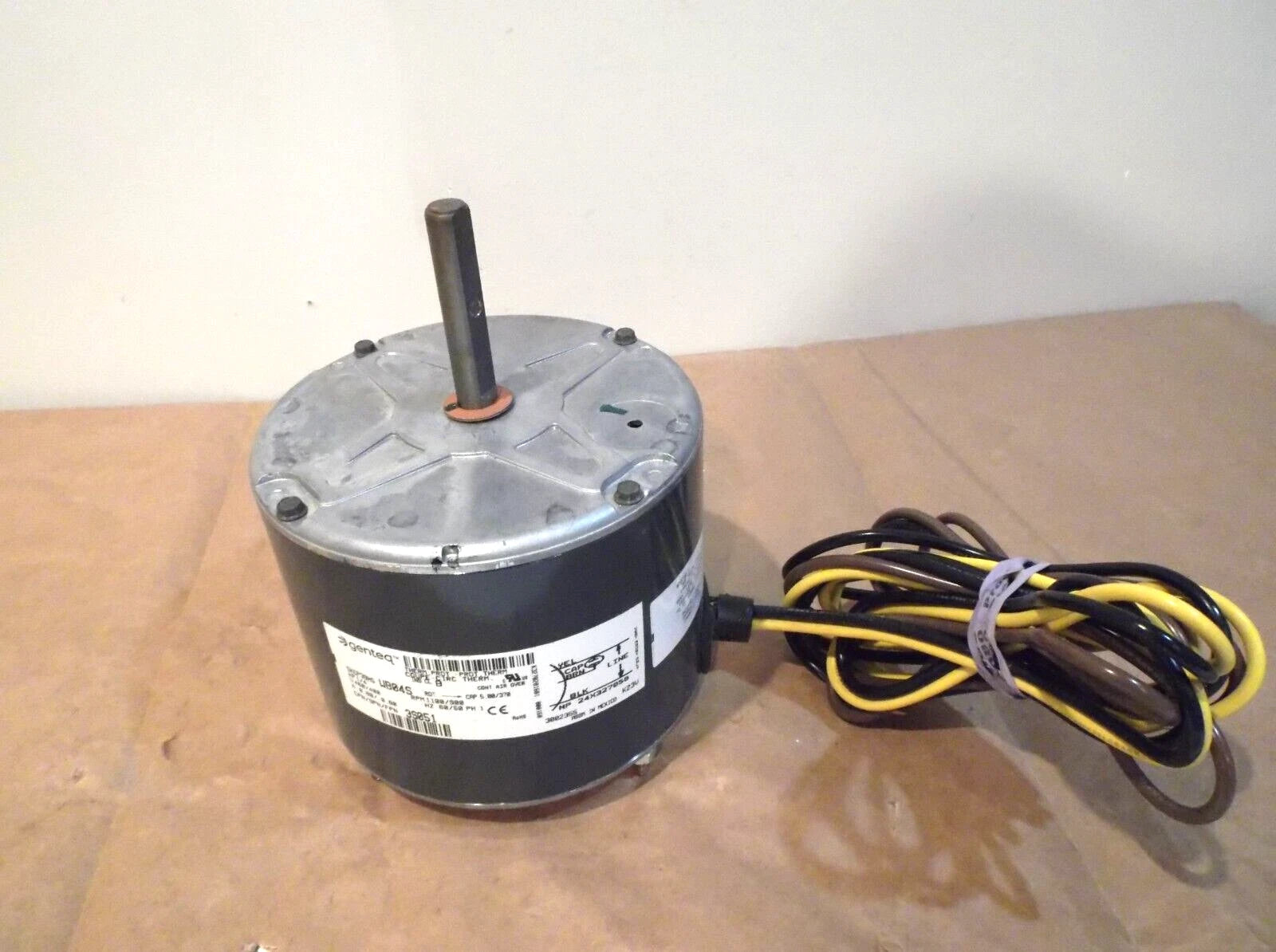

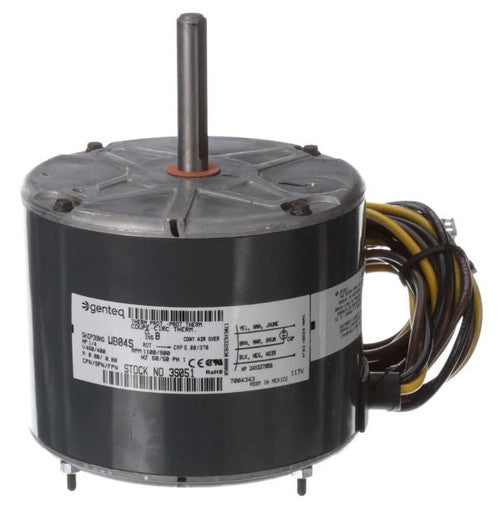

GENTEQ MOTORS 5KCP39HGWB04S-S Condenser Fan Motor

Product Description

The GENTEQ MOTORS 5KCP39HGWB04S-S is a condenser fan motor ideal for HVAC systems. This unit converts electrical energy to mechanical energy for fan operation. It features a single-phase design with clockwise rotation at the lead end.

• Power: 1/4 HP
• Speed: 1100 RPM
• Capacitor: Requires 5 MFD/370VAC

Product Highlights

This motor is designed as a direct replacement and offers reliable performance in various heating and cooling applications.

Product Information

Standard Information

• Motor Type: Condenser Fan
• Housings Enclosure: Totally Enclosed Air Over

Technical Specifications

• Horsepower: 1/4 HP
• Input Voltage: 460V
• Output Current: 0.8 amps
• Frequency: 50/60HZ
• RPM: 1100
• Speed: 1-Speed
• Phase: Single Phase
• Rotation: CW Lead End
• Shaft Dimensions: 1/2 x 2.5 inches
• Ambient Temperature: 40 degrees
• Bearings: Ball Bearings
• Body Diameter: 5-5/8 inches
• Motor Case Length: 4 3/8 inches
• Stud Pattern: 3-5/8 x 3-5/8 inches
