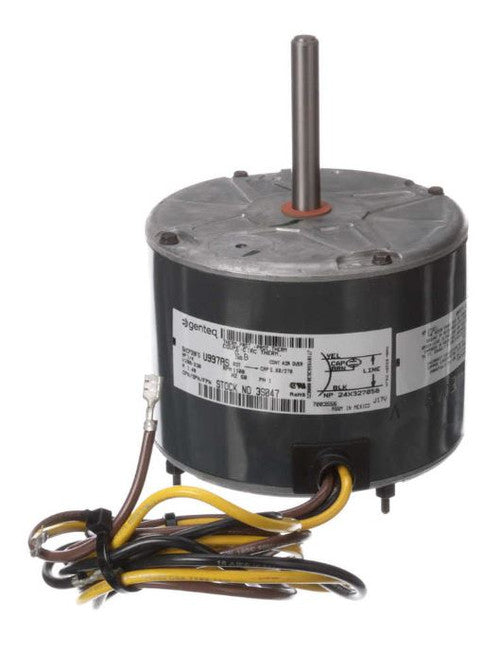

GENTEQ MOTORS 5KCP39FGU997AS-S Condenser Fan Motor

Product Description

The GENTEQ MOTORS 5KCP39FGU997AS-S is a condenser fan motor specifically designed for HVAC systems. This fan motor effectively converts electrical energy into mechanical energy, enabling the operation of the fan blade. It includes several features essential for performance and durability.

• Converts electrical energy into mechanical energy for HVAC fan operation.
• Features a 5-5/8 inches diameter body and a 1/2 x 3 inches shaft.
• Thermally protected with a permanent split capacitor.

Product Highlights

This motor is built to withstand ambient temperatures up to forty degrees Celsius. It uses ball bearings for smooth operation and has a split capacitor for improved energy efficiency.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: 5KCP39FGU997AS-S

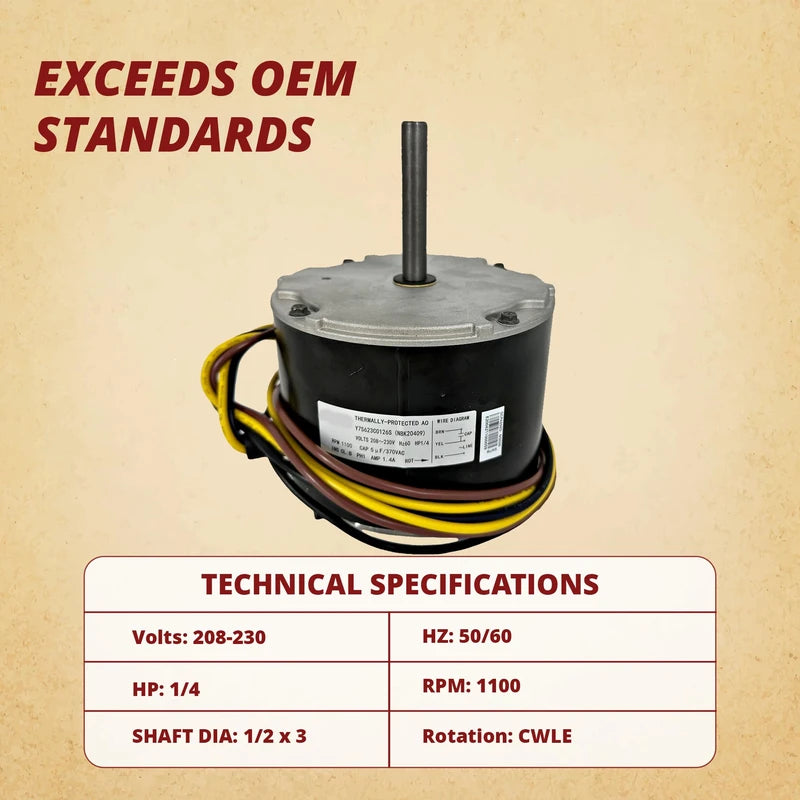

Technical Specifications

• Horsepower: 1/4 hp
• Input Voltage: 208-230V
• Output Current: 1.4 amps
• RPM: 1100 RPM
• Frequency: 50/60 Hz
• Required Capacitor: 5 MFD/370VAC
• Rotation: CW Lead End
• Shaft Dimensions: 1/2 x 3 inches
• Ambient Temperature: 40 degrees Celsius
• Enclosure: TEAO
• Bearings: Ball Bearings
• Body Diameter: 5-5/8 inches
• Motor Case Length: 4 3/8 inches
• Stud Pattern: 3-5/8 x 3-5/8 inches
