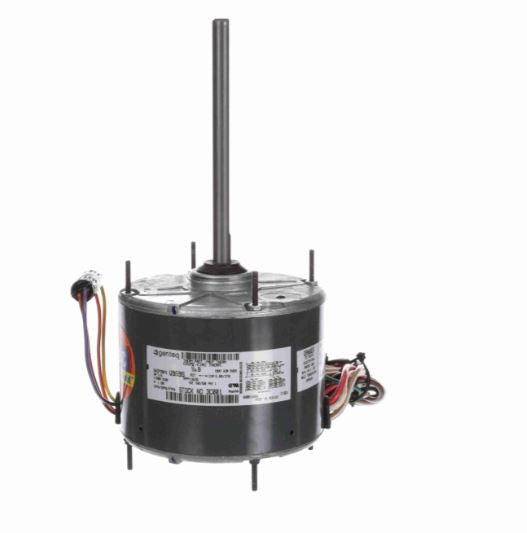

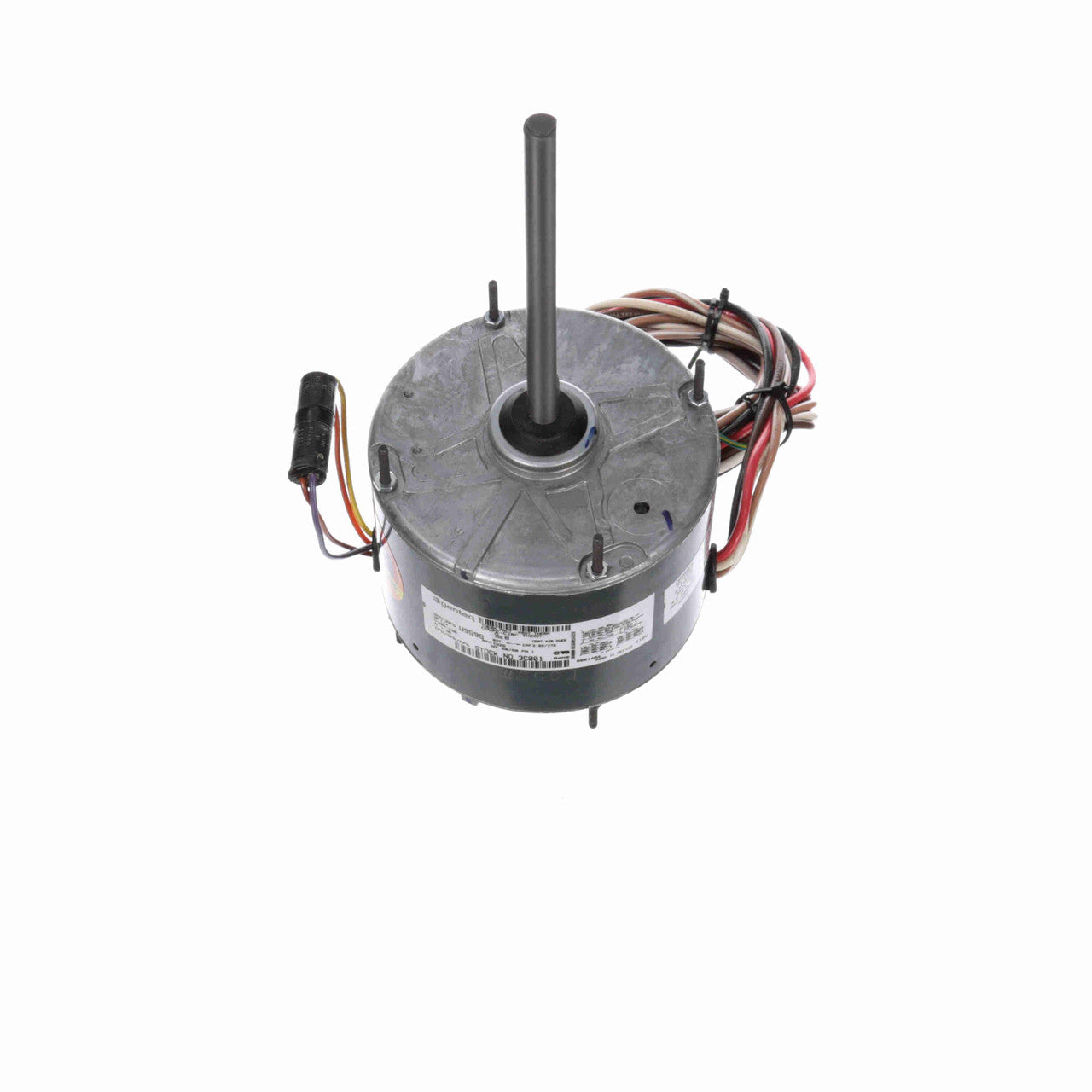

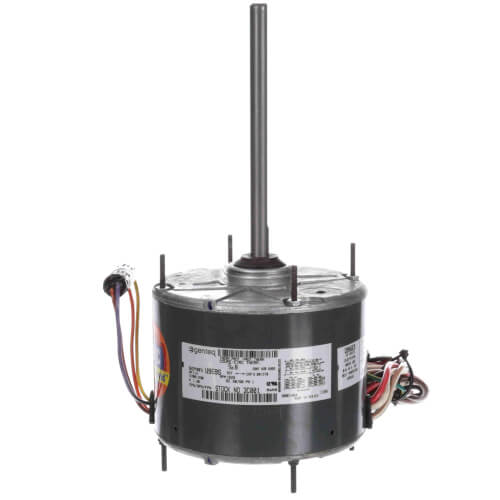

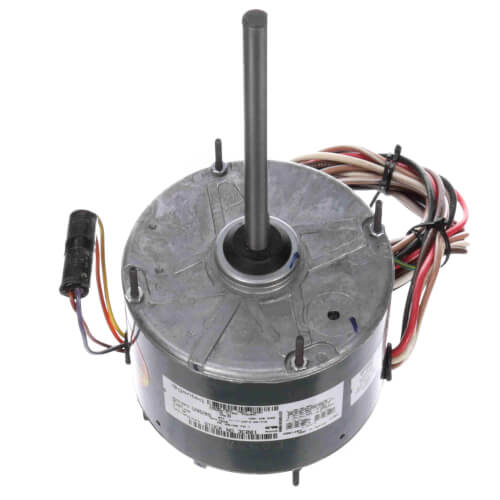

Genteq Motors 3C001 Outdoor Condenser Fan Heat Shield Motor 1/4 HP (5/370V)

Product Description

The GENTEQ MOTORS 3C001 is designed for continuous air over applications, suitable for direct drive residential, commercial, and industrial air conditioners, fans, and blowers. This condenser fan motor is rated at 1/4 HP and 1625 RPM for 208-230 volts 1 phase supply. It features a 48 frame and ball bearings, with a totally enclosed air over enclosure.

• Designed for 70° C ambient environments.
• Features a reversible rotation and extended studs for mounting.
• Includes quick connects on capacitor leads and drain holes with plugs.

Product Highlights

This condenser fan motor is ideal for outdoor condenser units in central air conditioning systems, offering efficient and reliable performance.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: 3C001
• Country of Origin: Mexico

Technical Specifications

• Motor: Permanent Split Capacitor
• Horse Power: 1/4 HP
• RPM: 1625
• Voltage: 208/230V
• Duty: Continuous Air Over
• Rotation: Reversible
• Bearings: Ball
• Capacitor Rating: 5/370V
• Amperage: 1.30 A
• Mount: Extended Studs
• Poles: 4
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Phase: 1
• Speeds: 2
• Overload Protection: Thermally Protected
• Insulation Class: B
• Frame: 48
• Max Ambient Temp (°F): 104 °F
• Motor Orientation: Any
• Approvals: UL, CSA
• Brand: Genteq
• Catalog Number: 3C001
• Frequency: 60/50 Hz
• Frame Material: Rolled Steel
• Shaft Diameter (In.): 0.500
• Shaft Extension (In.): 6.50
• Shaft Type: Double Flat
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension (In.): 11.21
• Electrical Type: Permanent Split Capacitor
• Service Factor: 1
• UL: Recognized
• CSA: Y
• Ambient Temperature: 40 °C
• Overall Length: 11.21 in
• Frame Length: 3.57 in
• Shaft Diameter: 0.5"
• Shaft Extension: 6.50 in
• Enclosure: TEAO
• Capacitor Required: 5 MFD/370 VAC (Not Included)
• Rated Current: 1.30
• Rated Voltage: 208-230
• Speed: 1625
