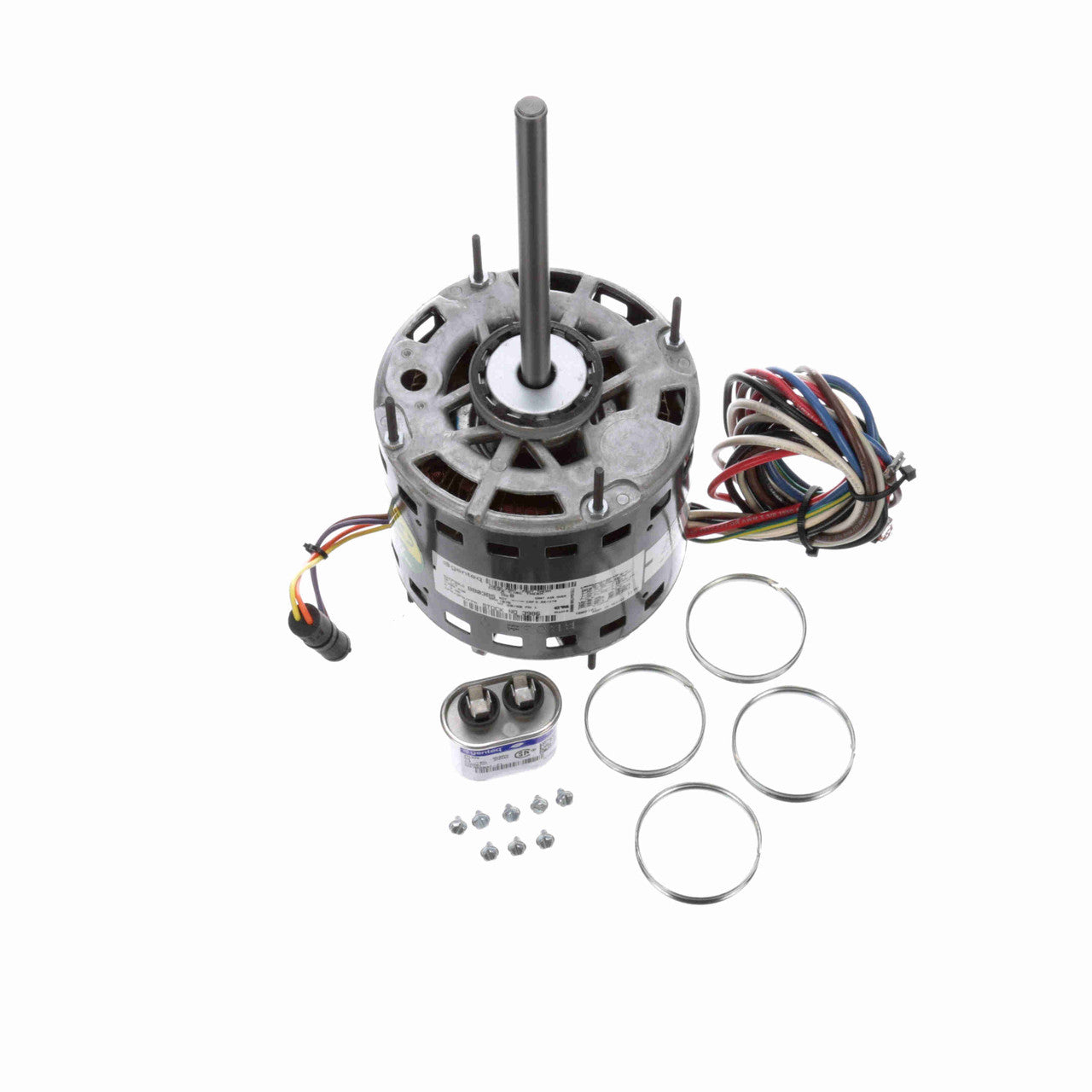

Genteq Motors 3986 Direct Drive Blower Motor 1/3 HP 208-230V 1075 RPM

Product Description

The Genteq Motors 3986 is a direct drive blower motor designed for use in HVAC systems. This motor operates at a voltage of 208-230V and provides an output power of 1/3 HP while achieving a speed of 1075 RPM. The unit is built with a 48-frame construction and features an open air over enclosure, making it suitable for various HVAC applications.

• Permanent split capacitor (PSC) type motor.
• Includes ball bearings for smooth operation.
• Requires a 5 Mfd-370 volts capacitor that is supplied with the motor.

Product Highlights

This blower motor is thermally protected, ensuring safe operation under continuous duty. With a flat shaft measuring 1/2 inch in diameter, it is designed for easy mounting and installation.

Product Information

Standard Information

• Brand: Genteq
• MPN: 3986

Technical Specifications

• Output HP: 1/3 HP
• Input Voltage: 208-230 V
• Frequency: 60 Hz
• Output Current: 2.50 A
• Speed: 1075 RPM
• Number of Speeds: 3
• Phase: 1
• Enclosure Type: Open Air Over
• Rotation: Counterclockwise/Clockwise
• Mounting Type: Round Belly Band
• Frame Size: 48
• Frame Material: Rolled Steel
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6.50 inches
• Shaft Type: Flat
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Overall Length: 12.39 inches
• Frame Length: 4.32 inches
• Electrical Type: Permanent Split Capacitor
• Duty: Continuous Air Over
• Motor Orientation: Any
• Service Factor: 1
• Thermal Protection: Thermally Protected
• Insulation Class: B
• Ambient Temperature: 40 °C
• UL: Recognized
• CSA: Y
• CE: N
• Poles: 6
