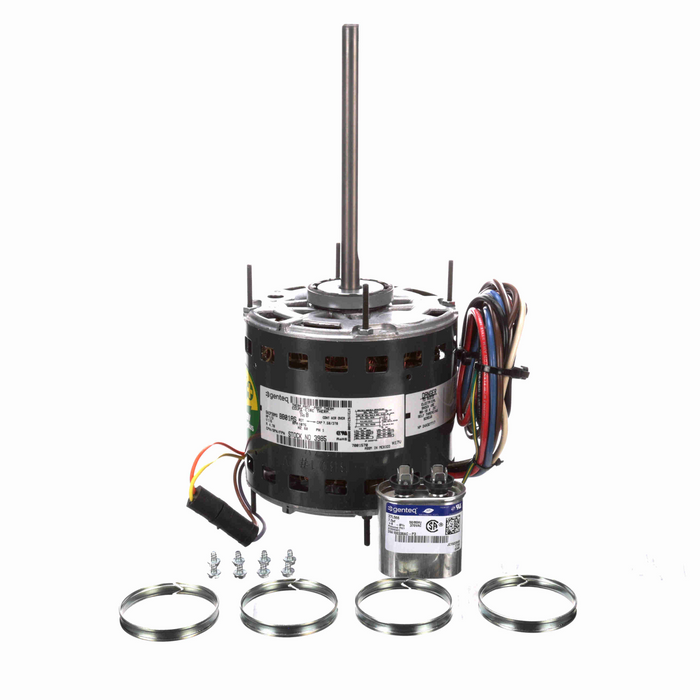

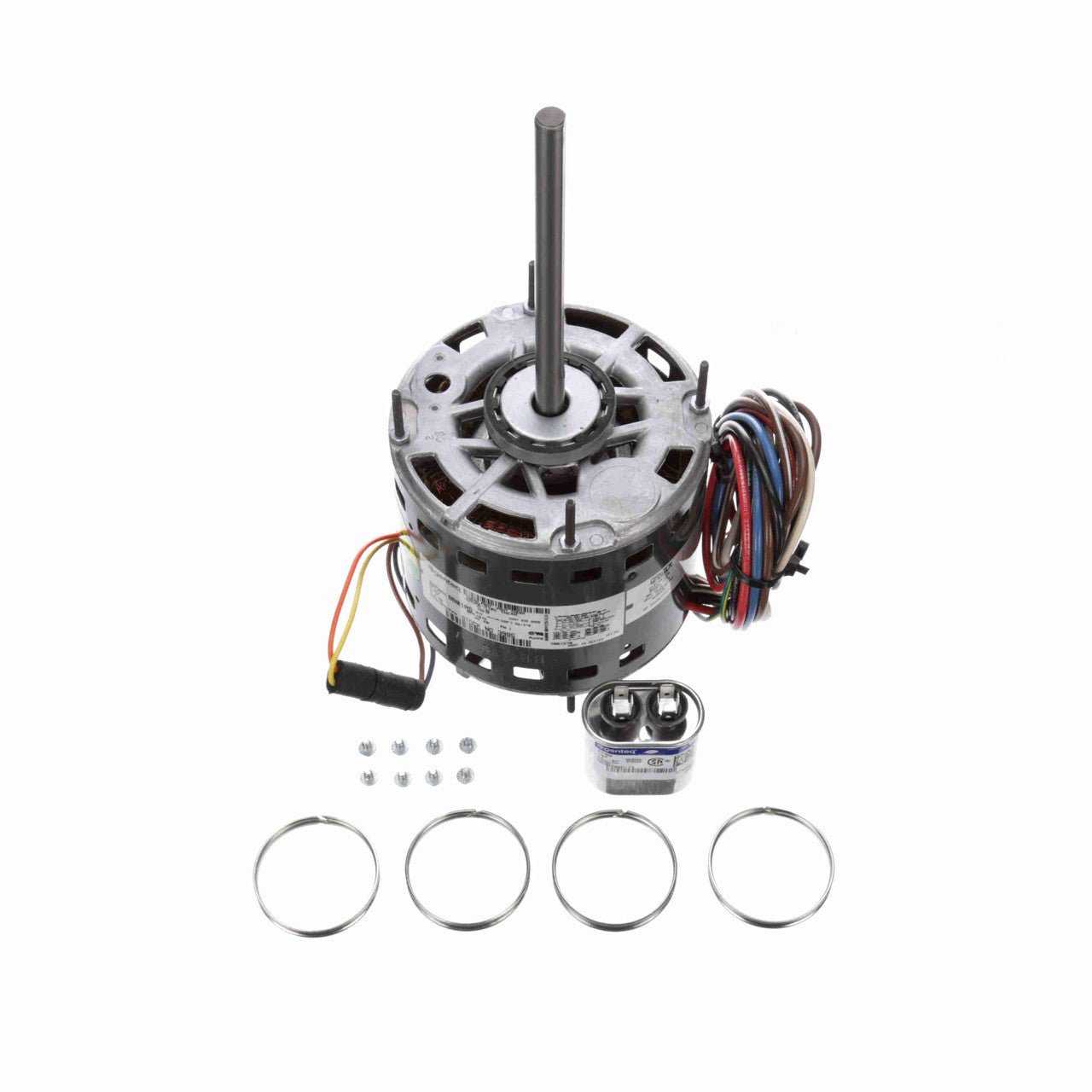

Genteq Motors 3985 Direct Drive Blower Motor 1/3 HP replacement 3985

Product Description

The Genteq Motors 3985 is a direct drive blower motor with 1/3 HP and 1075 RPM. It operates at 115 Volts and features reversible rotation. The motor has open ventilation and ball bearings, with a 5.6" diameter and 1/2" shaft diameter. It is designed for continuous air over duty and includes thermal overload protection.

• Direct Drive Blower Motor
• 1/3 HP, 1075 RPM, 115 Volts
• Reversible rotation with open ventilation

Product Highlights

This Genteq direct drive blower motor is suitable for HVAC applications requiring reliable and efficient air movement.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: 3985
• Country of Origin: MEXICO

Technical Specifications

• Brand: Genteq
• Catalog Number: 3985
• Product Category: HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors
• HP: 1/3
• Volts: 115
• Frequency: 60 Hz
• Amps: 4.70 A
• RPM (Number of Poles): 6 (901 RPM to 1200 RPM)
• RPM (Nameplate): 1075
• Speeds: 3
• Phase: 1
• Enclosure Type: Open Air Over
• Rotation: Reversible
• Mounting Type: Round Belly Band
• Frame Type: 48
• Frame Material: Rolled Steel
• Shaft Diameter: 0.5 in
• Shaft Extension: 6.50 in
• Shaft Type: Flat
• DE Bearing Type: Ball
• ODE Bearing Type: Ball
• C-Dimension: 12.39 in
• Electrical Type: Permanent Split Capacitor
• Duty: Continuous Air Over
• Motor Orientation: Any
• Service Factor: 1
• Type of Overload Protector: Thermally Protected
• Insulation Class: B
• Max Ambient: 40°C
• UL: Recognized
• CSA: Y
• IP Code: -
• KVA Code: -
• DEM Reference: 3985
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Poles: 6
• Overall Length: 12.39 in
• Frame Length: 4.32 in
• Run Capacitor: 7.5 Mfd-370 Volts
• Agency Approvals: CSA & UL
