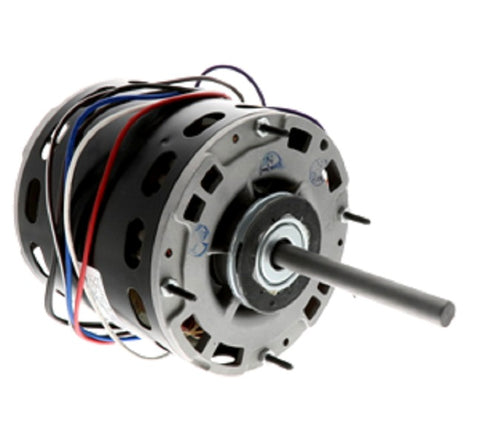

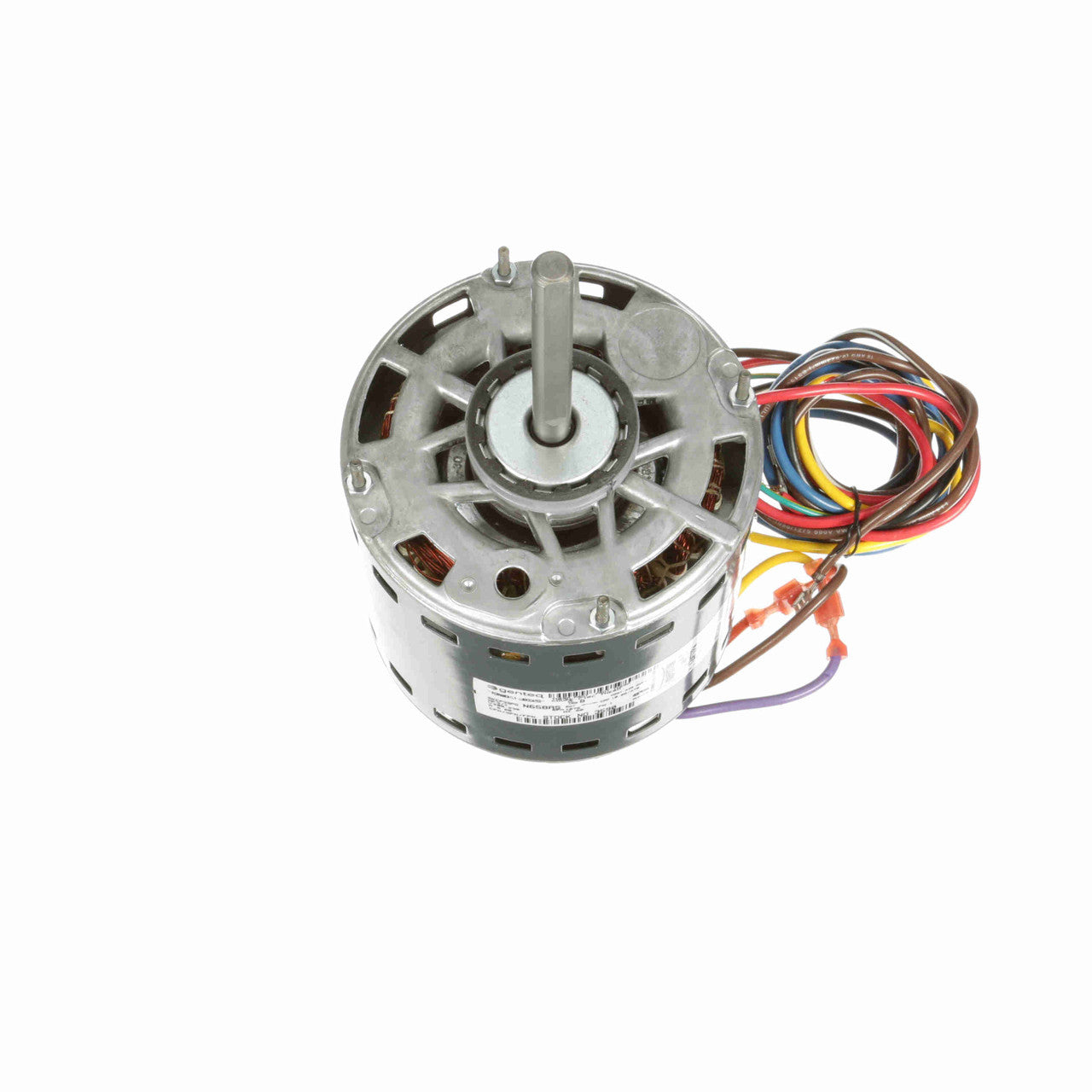

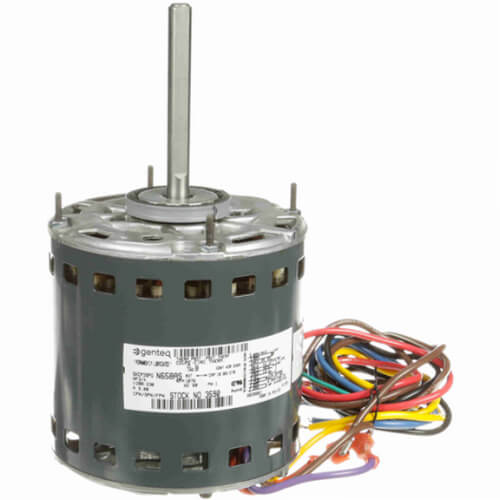

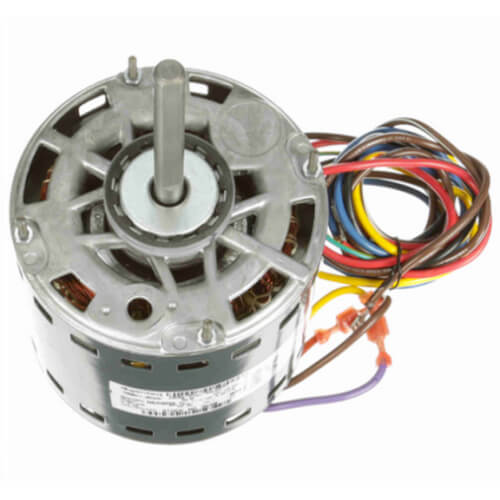

Genteq Motors 3590 5-1/2 inches 3 Speed Direct Drive Furnace Motor 3/4 HP

Product Description

The GENTEQ MOTORS 3590 is designed for continuous air over applications, such as furnace blowers or central air handling units with single shaft requirements. It features reversible rotation and automatic thermal overload protection. Designed for a 370 Volt capacitor (not furnished).

• Energy Saver Plus design
• Reversible rotation
• Automatic thermal overload protection

Product Highlights

This direct drive furnace motor operates at 208/230V, 1075 RPM, and 3 speeds, making it suitable for HVAC and industrial applications.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: 3590
• Country of Origin: Mexico

Technical Specifications

• Motor: Permanent Split Capacitor
• RPM: 1075
• Horse Power: 3/4
• Type: Permanent Split Capacitor
• Voltage: 208/230V
• Duty: Continuous Air Over
• Rotation: Reversible
• Amperage: 5
• Mount: Resilient Rings
• Bearings: Sleeve
• Speeds: 3
• Enclosure Type: Open Air Over
• Poles: 6
• Phase: 1
• Overload Protection: Thermally
• Insulation Class: B
• Frame: 48
• Max Ambient Temp (°F): 104°F
• Motor Orientation: Any
• Approvals: UL, CSA
• Output HP: 3/4 Hp
• Output KW: 0.56 kW
• Service Factor: 1
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 5.00 A
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.39 in
• Frame Length: 4.82 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.00 in
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Electrical Type: Permanent Split Capacitor
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Catalog Number: 3590
• Product Category: HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors
• HP: 3/4
• Volts: 208-230
• RPM (Number of Poles): 6 (901 RPM to 1200 RPM)
• RPM (Nameplate): 1075
• Mounting Type: Resilient Rings
• Frame Type: 48
• DE Bearing Type: Sleeve
• ODE Bearing Type: Sleeve
• C-Dimension: 10.39 (in.)
• Type of Overload Protector: Thermally Protected
• Max Ambient: 40°C
• IP Code: -
• KVA Code: -
• DEM Reference: 3590
