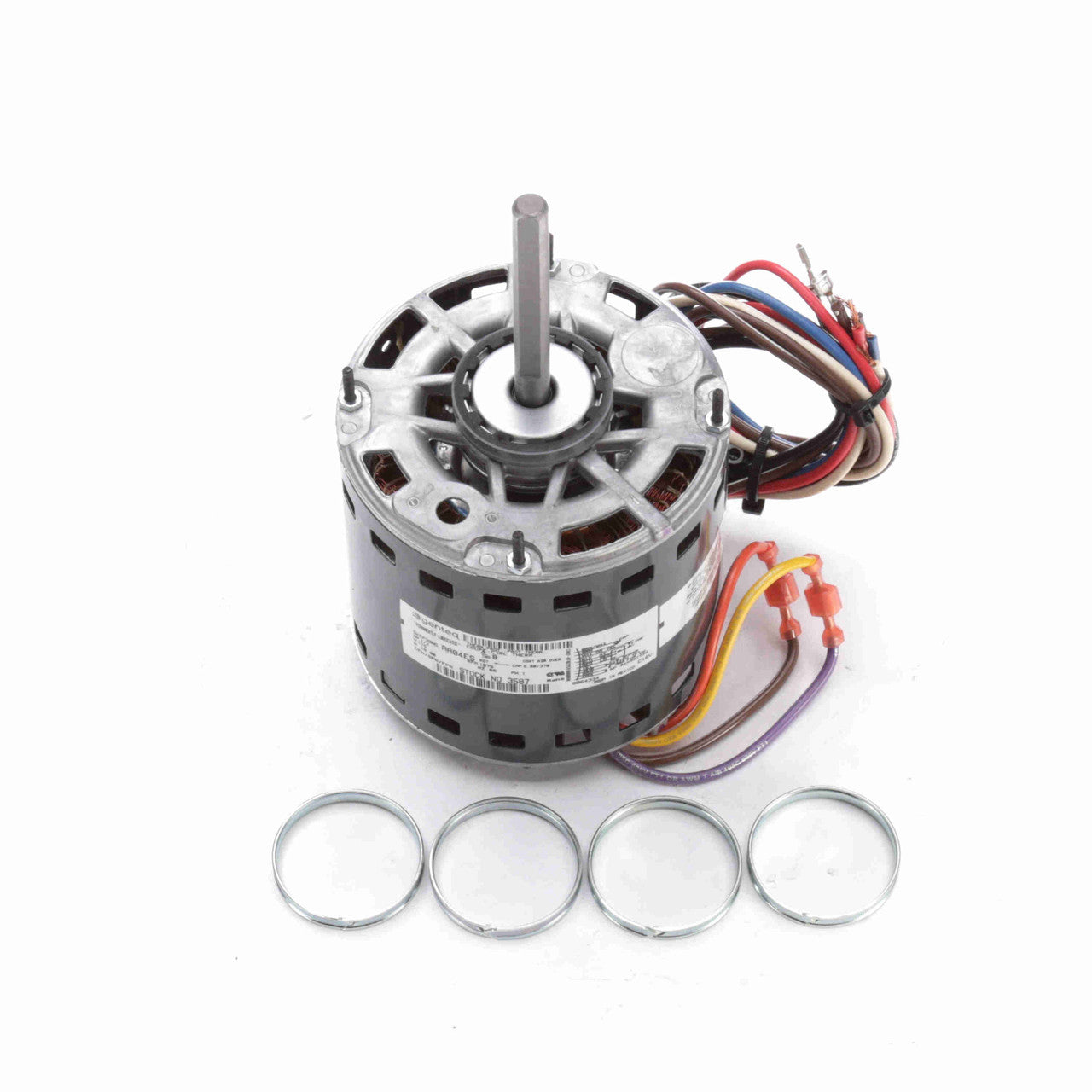

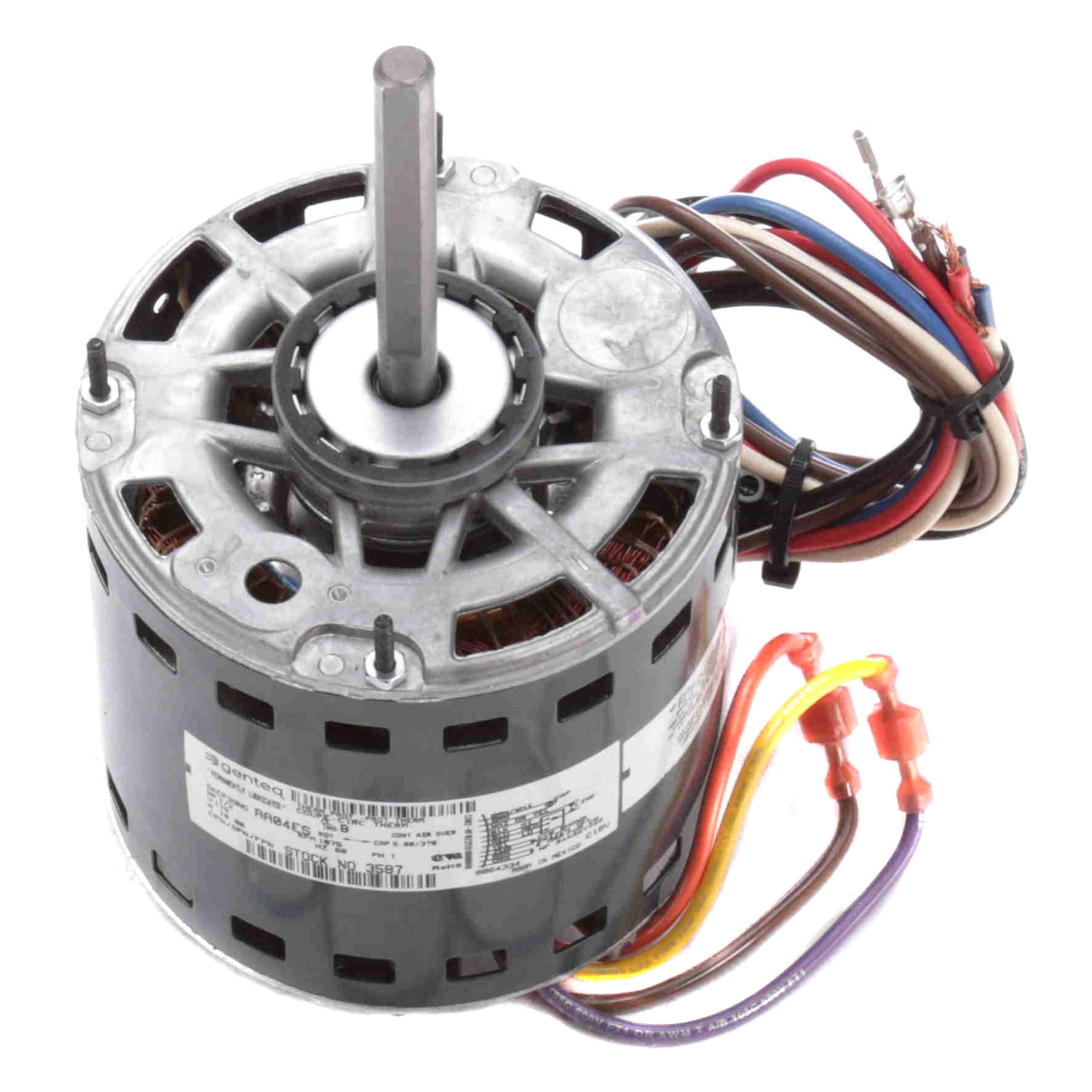

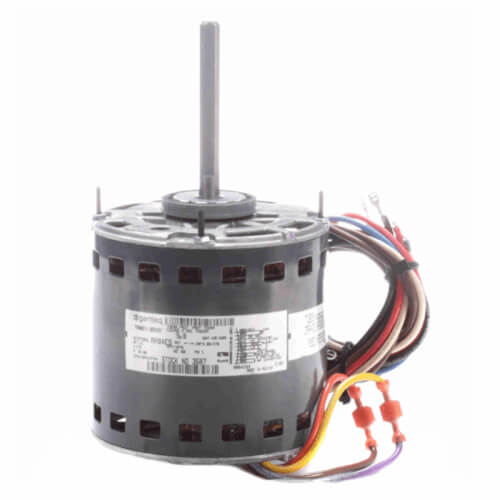

Genteq Motors 3587 Direct Drive Furnace Motor 1/2 HP 1075 RPM

Product Description

The GENTEQ MOTORS 3587 is designed for continuous air over applications, such as furnace blowers or central air handling units with single shaft requirements. It features reversible rotation and automatic thermal overload protection. Designed for a 370 Volt capacitor (not furnished).

• Energy Saver Plus design (u)
• Reversible rotation
• Automatic thermal overload protection

Product Highlights

This direct drive motor has a 4" shaft extension and mounting holes in the shell for a capacitor bracket. It is designed for 370 Volt capacitor (not furnished).

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: 3587

Technical Specifications

• RPM: 1075
• Duty: Continuous Air Over
• Type: Permanent Split Capacitor
• Frame: 48
• Motor: Permanent Split Capacitor
• Mount: Resilient Rings
• Phase: 1
• Poles: 6
• Speeds: 3
• Voltage: 115V
• Amperage: 10
• Bearings: Sleeve
• Rotation: Reversible
• Approvals: CSA, UL
• Horse Power: 1/2
• Enclosure Type: Open Air Over
• Motor Orientation: Any
• Overload Protection: Thermally
• Max Ambient Temp (°F): 104°F
• Catalog Number: 3587
• Product Category: HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors
• Frequency: 60
• Shaft Diameter: 1/2 (in.)
• Shaft Extension: 4.00 (in.)
• Shaft Type: Flat
• DE Bearing Type: Sleeve
• ODE Bearing Type: Sleeve
• C-Dimension: 10.39 (in.)
• Electrical Type: Permanent Split Capacitor
• Service Factor: 1
• Type of Overload Protector: Thermally Protected
• Insulation Class: B
• Max Ambient: 40°C
• Output HP: 1/2 Hp
• Output KW: 0.37 kW
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Current: 10.00 A
• Number of Speeds: 3
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Overall Length: 10.39 in
• Frame Length: 4.82 in
• Manufacturer: Genteq
• Capacitor: 5MFD/370VAC
• Motor Diameter: 5.6"
• Motor Shell Length: 5-1/2"
• Mounting: Stud
• Product Type: PSC (Permanent Split Capacitor)
