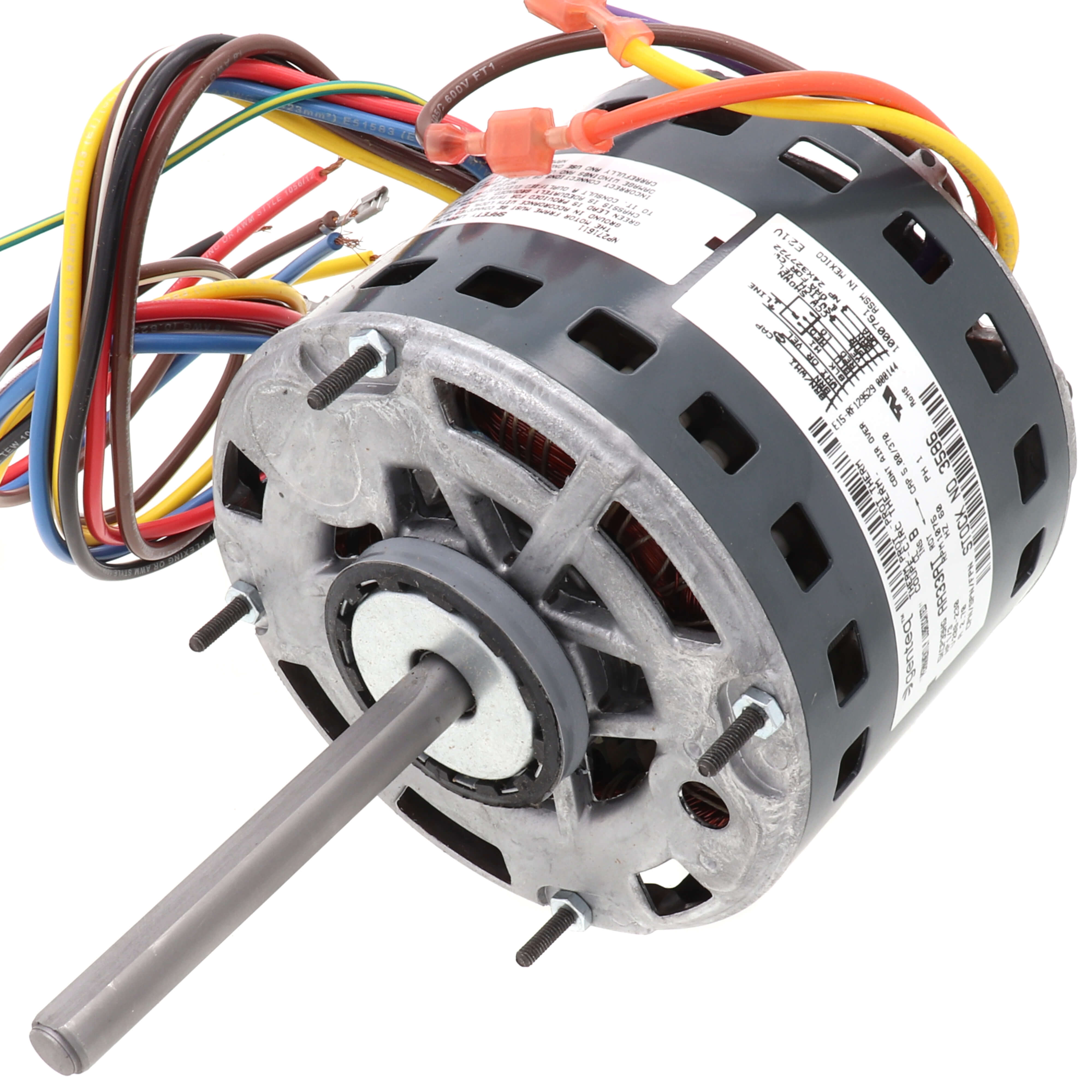

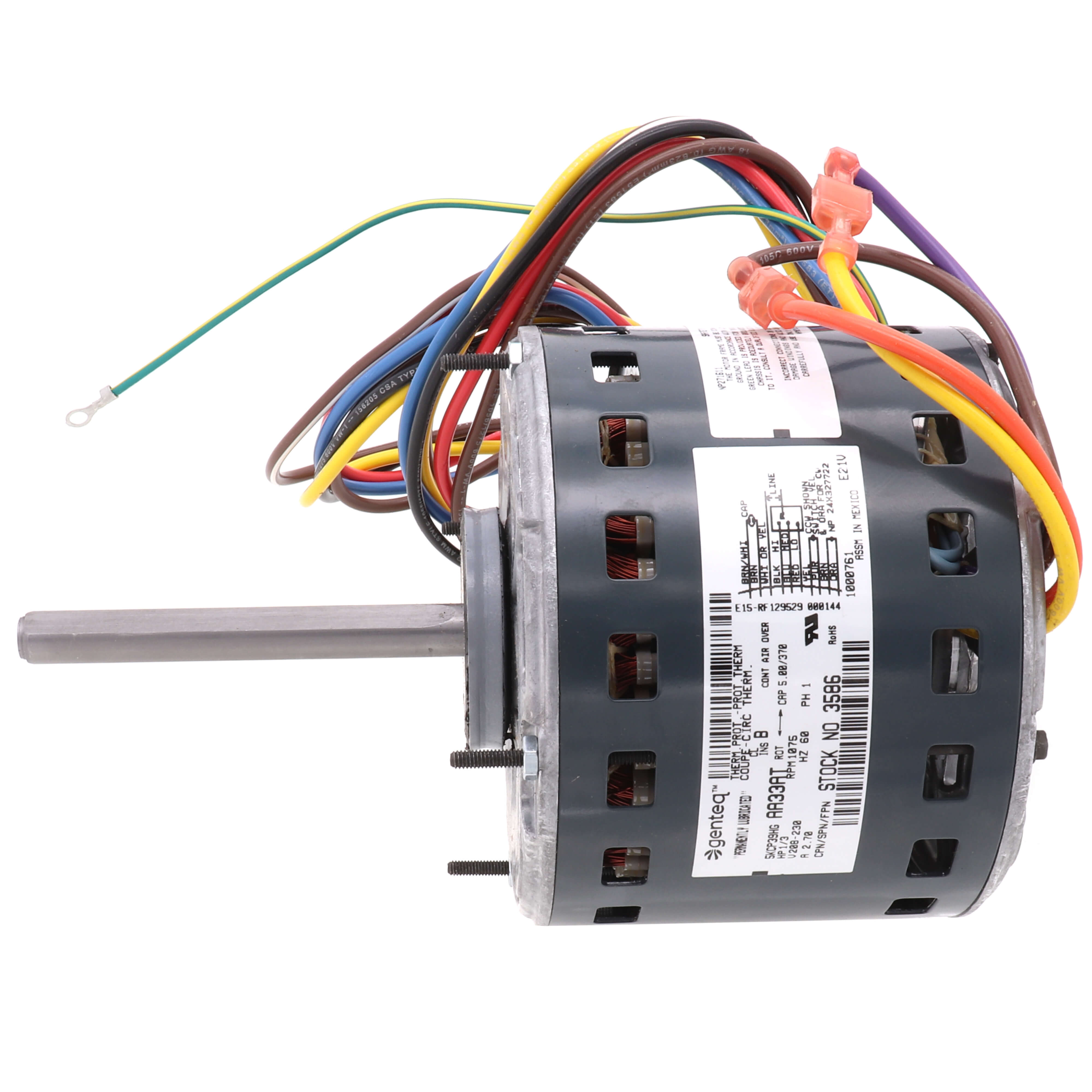

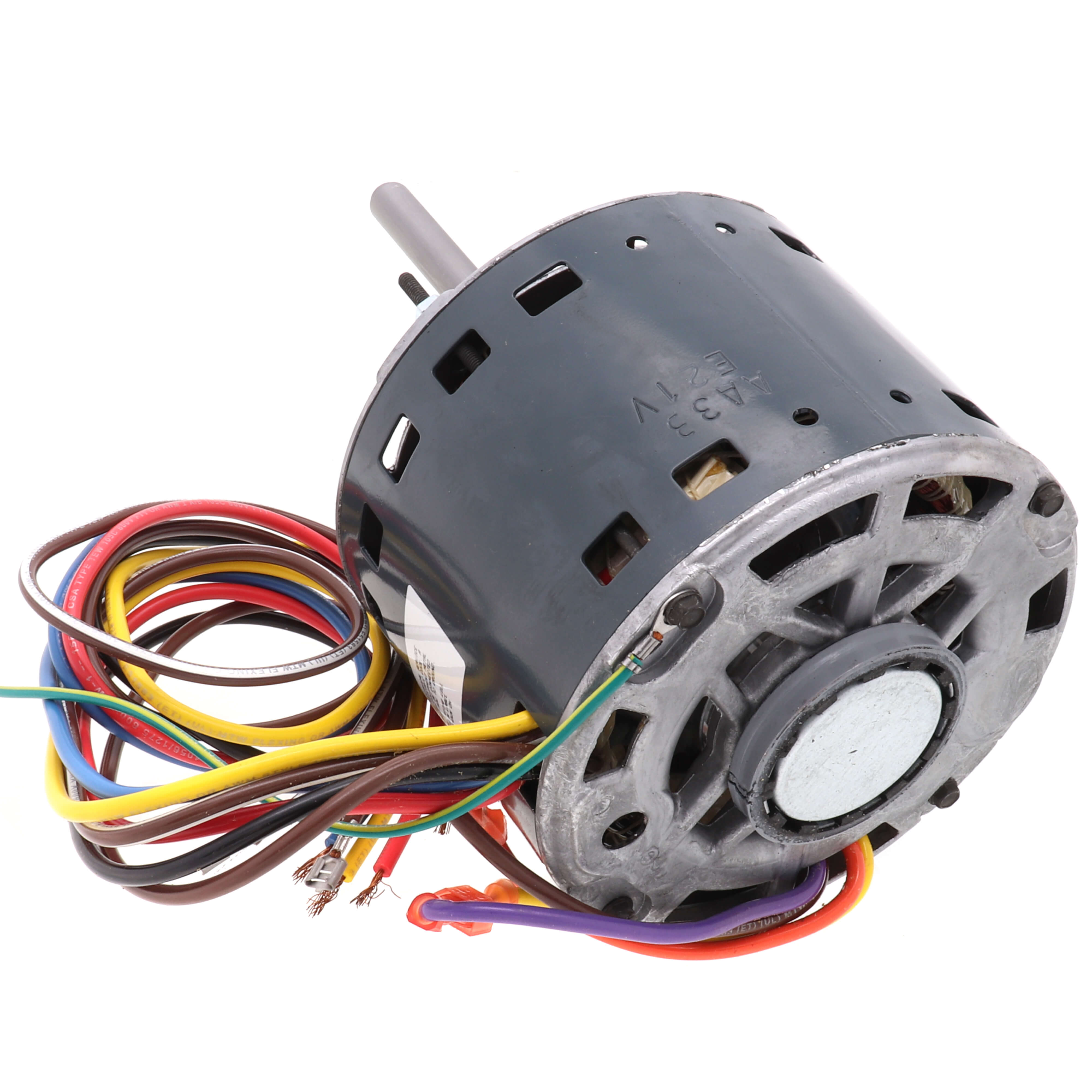

Genteq Motors 3586 5-1/2 inches 3 Speed Direct Drive Furnace Motor 1/3 HP (208-230V)

Product Description

The GENTEQ MOTORS 3586 is designed for continuous air over applications, such as furnace blowers or central air handling units with single shaft requirements. This direct drive motor features reversible rotation and automatic thermal overload protection. It is designed for a 370 Volt capacitor (not furnished).

• Energy Saver Plus design (u)
• Reversible rotation
• Automatic thermal overload protection

Product Highlights

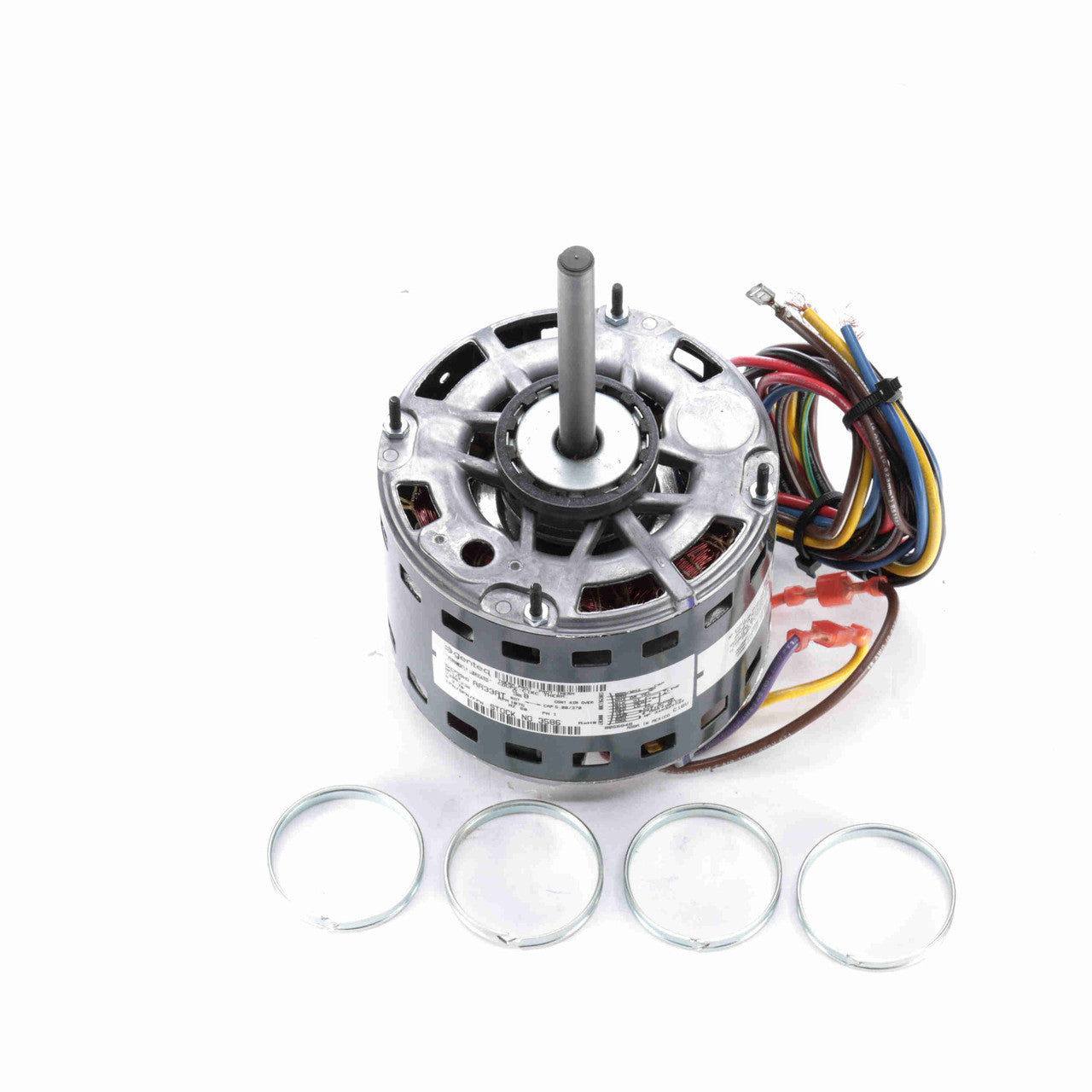

This 1/3 HP motor operates at 208/230V, 1075 RPM, and includes mounting holes for a capacitor bracket. It has a 4" shaft extension and extended clamp screws with a ring kit for resilient ring mounting.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: 3586
• Country of Origin: Mexico

Technical Specifications

• RPM: 1075
• Duty: Continuous Air Over
• Type: Permanent Split Capacitor
• Frame: 48
• Motor: Permanent Split Capacitor
• Mount: Resilient Rings
• Phase: 1
• Poles: 6
• Speeds: 3
• Voltage: 208/230v
• Amperage: 2.7
• Bearings: Sleeve
• Rotation: Reversible
• Horse Power: 1/3
• Enclosure Type: Open Air Over
• Insulation Class: B
• Motor Orientation: Any
• Overload Protection: Thermally
• Max Ambient Temp (°F): 104°F
• Frequency: 60 Hz
• Shaft Diameter: 1/2 (in.)
• Shaft Extension: 4.00 (in.)
• Shaft Type: Flat
• DE Bearing Type: Sleeve
• ODE Bearing Type: Sleeve
• C-Dimension: 9.39 (in.)
• Electrical Type: Permanent Split Capacitor
• Service Factor: 1
• Type of Overload Protector: Thermally Protected
• Max Ambient: 40°C
• Output HP: 1/3 Hp
• Output KW: 0.25 kW
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Current: 2.70 A
• Number of Speeds: 3
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Overall Length: 9.39 in
• Frame Length: 3.82 in
• H.P: 1/3
• Amps: 2.9
• Supplier Part #: 3586
• Alt Part #: DT3586
