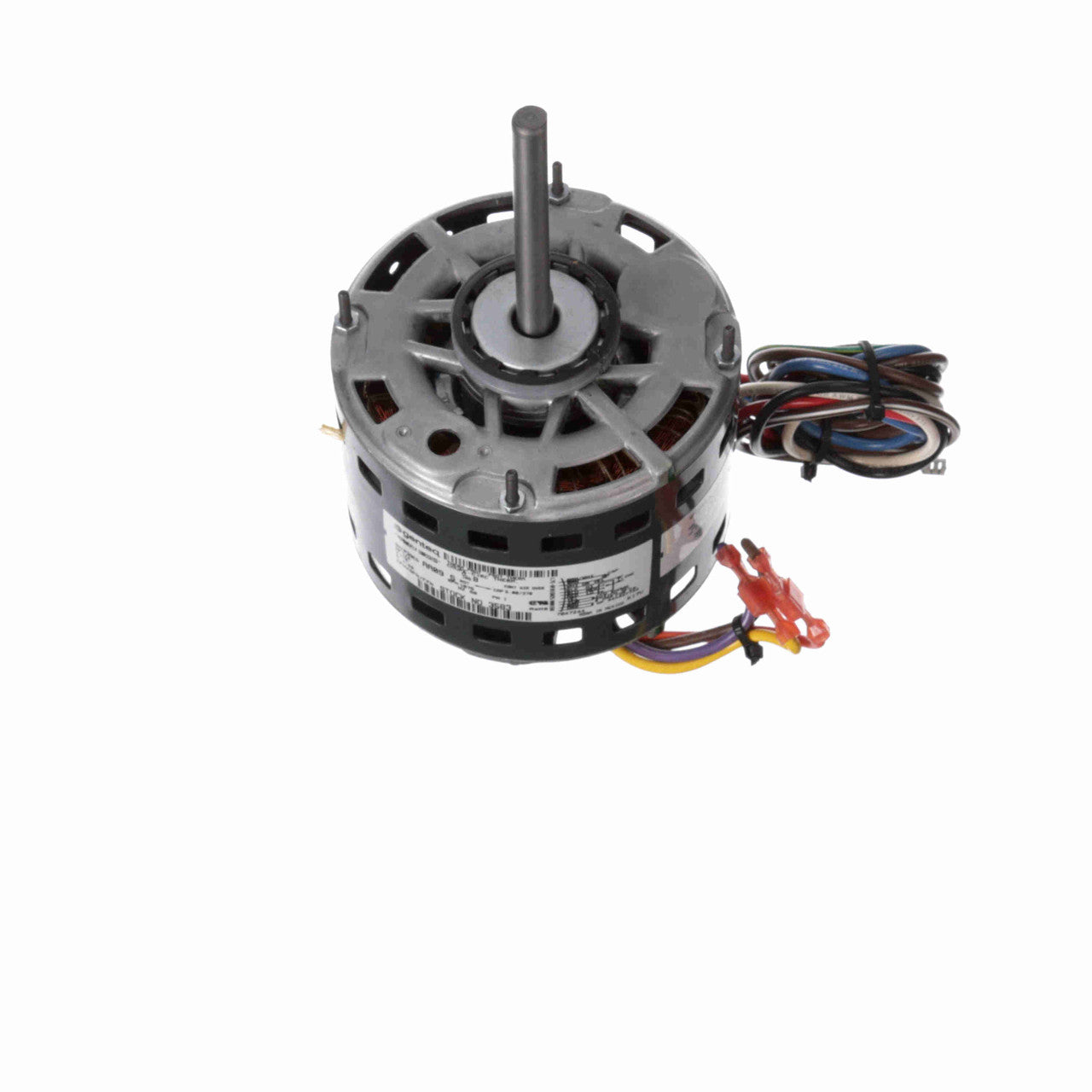

Genteq Motors 3583 Fan and Blower Motor 1/4 hp 115 v

Product Description

The Genteq Motors 3583 is a fan and blower motor operating at 115V. This direct drive motor delivers 1/4 HP at 1075 RPM. It features open air over enclosure and a reversible rotation. Designed with sleeve bearings and a 0.5" diameter shaft, it is suitable for continuous air over applications.

• Direct Drive Fan and Blower Motor
• 1/4 HP, 1075 RPM, 115 Volts
• Reversible rotation with Open Air Over enclosure

Product Highlights

The Genteq 3583 is a 1/4 HP, 115V direct drive blower motor with reversible rotation and open air over enclosure.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: 3583
• Country of Origin: MEXICO

Technical Specifications

• Rated Motor Output Power: 1/4 HP
• Output KW: 0.19 kW
• Rated Motor Speed: 1075 RPM
• RPM (Number of Poles): 6 (901 RPM to 1200 RPM)
• Rated Motor Voltage: 115V
• Voltage: 115 V
• Rated Motor Current: 4.2 AMP
• Current: 4.20 A
• Phase: 1
• Poles: 6
• Service Factor: 1
• Frequency: 60 Hz
• Frame: 48
• Enclosure: OAO
• Enclosure Type: Open Air Over
• Mounting: Resilient
• Mounting Type: Resilient Rings
• Number of Speeds: 3
• Rotation: Reversible
• Duty: Continuous Air Over
• Insulation Class: B
• Ambient Temp: 40°C
• Max Ambient: 40°C
• DE Bearing: SLEEVE
• DE Bearing Type: Sleeve
• NDE Bearing: SLEEVE
• ODE Bearing Type: Sleeve
• Shaft Diameter: 0.5"
• Shaft Extension: 4.00 (in.)
• Shaft Type: Flat
• C-Dimension: 9.14"
• Electrical Type: Permanent Split Capacitor
• Motor Orientation: Any
• UL: Recognized
• CSA: Y
• Model: 5KCP39EGAA095
• Type: Blower Motor
• Frame Material: Rolled Steel
• Thermal Protection: Thermally Protected
• Overall Length: 9.14 in
• Frame Length: 3.57 in
