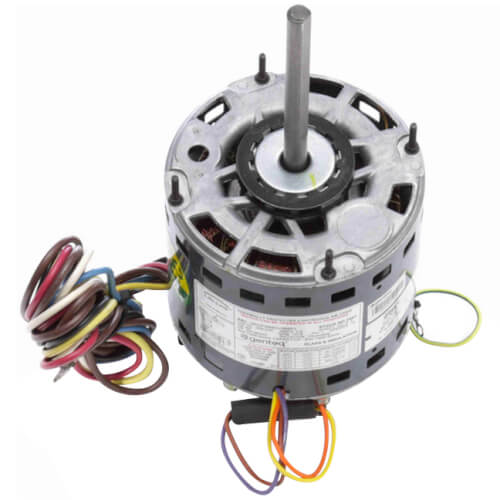

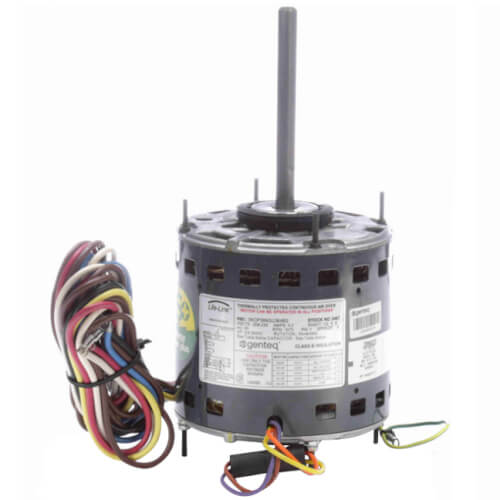

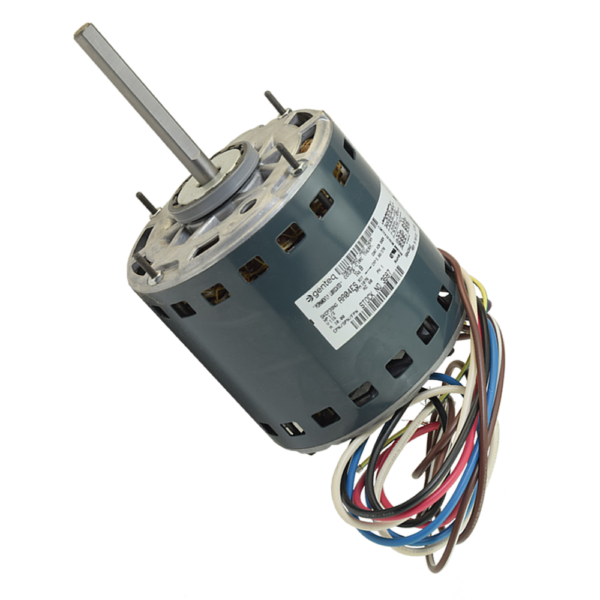

GENTEQ MOTORS 3467 Direct Drive Fan and Blower Motor

Product Description

The Genteq Motors 3467 is a reliable direct drive fan and blower motor. It is ideal for continuous air over applications. The motor is a permanent split capacitor (PSC) type, and it includes automatic thermal overload protection for enhanced safety.

• Designed for various air conditioning and ventilation systems.
• Features durable ball bearings for longevity.
• Suitable for residential, commercial, and industrial use.

Product Highlights

This motor is designed for direct drive applications and proves to be versatile with multiple mounting options.

Product Information

Standard Information

• Brand: Genteq
• MPN: 3467

Technical Specifications

• Motor Type: Permanent Split Capacitor
• Horse Power: 3/4 Hp
• Output KW: 0.56 kW
• Input Voltage: 208-230 V
• Frequency: 60 Hz
• Full Load Amps: 3.8
• Current: 4.50 A
• RPM: 1075
• Number of Speeds: 4
• Rotation: Reversible
• Duty: Continuous Air Over
• Enclosure Type: Open Air Over
• Thermal Protection: Thermally Protected
• Insulation Class: B
• Ambient Temperature: 40 °C
• Frame: 48
• Mounting: Resilient Rings, Round Belly Band
• Motor Orientation: Any
• Shaft Diameter: 0.500 in
• Shaft Length: 5
• Shaft Type: Double Flat
• Shaft Extension: 6.50 in
• Lead Length: 36
• Weight: 16.60 lbs
