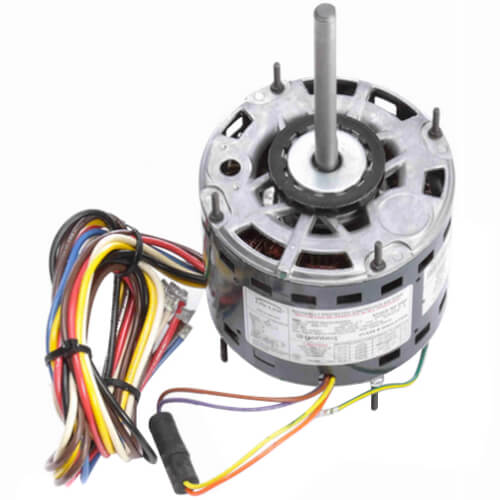

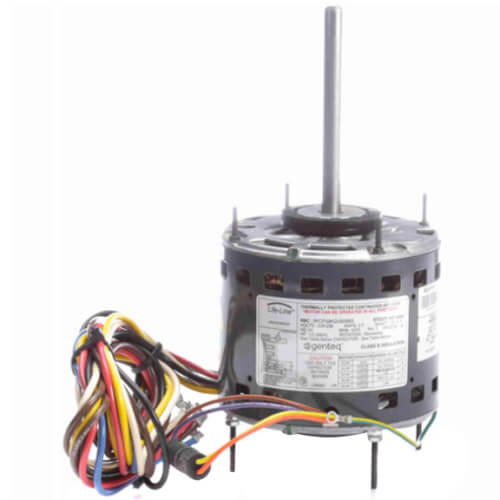

Genteq Motors 3464 Fan & Blower Motor 1/2 HP 1075 RPM 4 Speed

Product Description

The Genteq Motors 3464 is a reliable fan and blower motor designed for continuous air over systems. It is suitable for various applications including residential, commercial, and industrial air conditioning units, fans, and blowers.

• Energy Saver Plus design for efficiency
• Includes automatic thermal overload protection
• Compatible with Rheem mounting holes

Product Highlights

The motor has versatile mounting options and a durable construction, making it ideal for trade professionals in HVAC applications.

Product Information

Standard Information

• Brand: Genteq Motors
• MPN: 3464

Technical Specifications

• Motor Type: Permanent Split Capacitor
• RPM: 1075
• Horse Power: 1/2
• Voltage: 208/230V
• Duty: Continuous Air Over
• Amperage: 2.7
• Rotation: Reversible
• Bearings: Sleeve
• Mounting: Resilient Rings
• Speeds: 4
• Poles: 6
• Enclosure Type: Open Air Over
• Phase: 1
• Insulation Class: B
• Overload Protection: Thermally
• Frame: 48
• Max Ambient Temp (°F): 104°F
• Motor Orientation: Any
• Approvals: UL, CSA
• Frequency: 60 Hz
• Electrical Type: Permanent Split Capacitor
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.64 inches
• Frame Length: 4.07 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.00 inches
• Run Capacitor: 10 Mfd-370 Volts
• Enclosure: OAO
• Mounting Type: Resilient
• Approximate Weight: 13.8 pounds
• Shaft Length: 5 inches
• Greaseable: No
• Base Type: 2 RR
