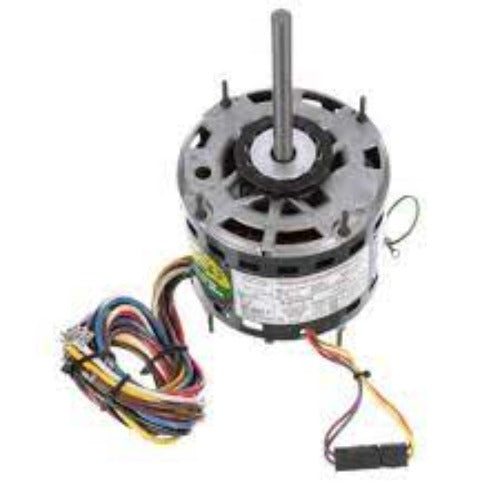

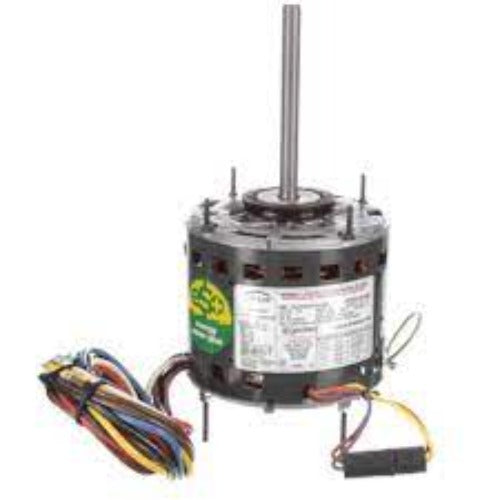

Genteq Motors 3463 4 Speed Direct Drive Fan & Blower 1/2 HP, 1075 RPM (115V)

Product Description

The GENTEQ MOTORS 3463 is designed for continuous air over applications, such as direct drive residential, commercial, and industrial air conditioners, fans, and blowers. It features an Energy Saver Plus design and automatic thermal overload protection. This motor has class B insulation and extended clamp screws for multiple mounting requirements.

• Energy Saver Plus design
• Permanent split capacitor
• Automatic thermal overload protection

Product Highlights

This permanent split capacitor motor has ball and sleeve bearings, Rheem mounting holes, and different capacitor/speed combinations to fit various HP applications.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: 3463

Technical Specifications

• RPM: 1075
• Duty: Continuous Air Over
• Type: Permanent Split Capacitor
• Frame: 48
• Motor: Permanent Split Capacitor
• Mount: Resilient Rings
• Phase: 1
• Poles: 6
• Speeds: 4
• Voltage: 115V
• Amperage: 5.7
• Bearings: Sleeve
• Rotation: Reversible
• Approvals: UL, CSA
• Horse Power: 1/2
• Enclosure Type: Open Air Over
• Insulation Class: B
• Motor Orientation: Any
• Overload Protection: Thermally
• Max Ambient Temp (°F): 104°F
• Output KW: 0.37 kW
• Frequency: 60 Hz
• Current: 5.70 A
• Service Factor: 1
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.64 in
• Frame Length: 4.07 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 5.00 in
• Thru-bolts Extension: 0.75 in
• Power: 1/2-1/6 hp
• Brand: Regal Rexnord - Genteq
