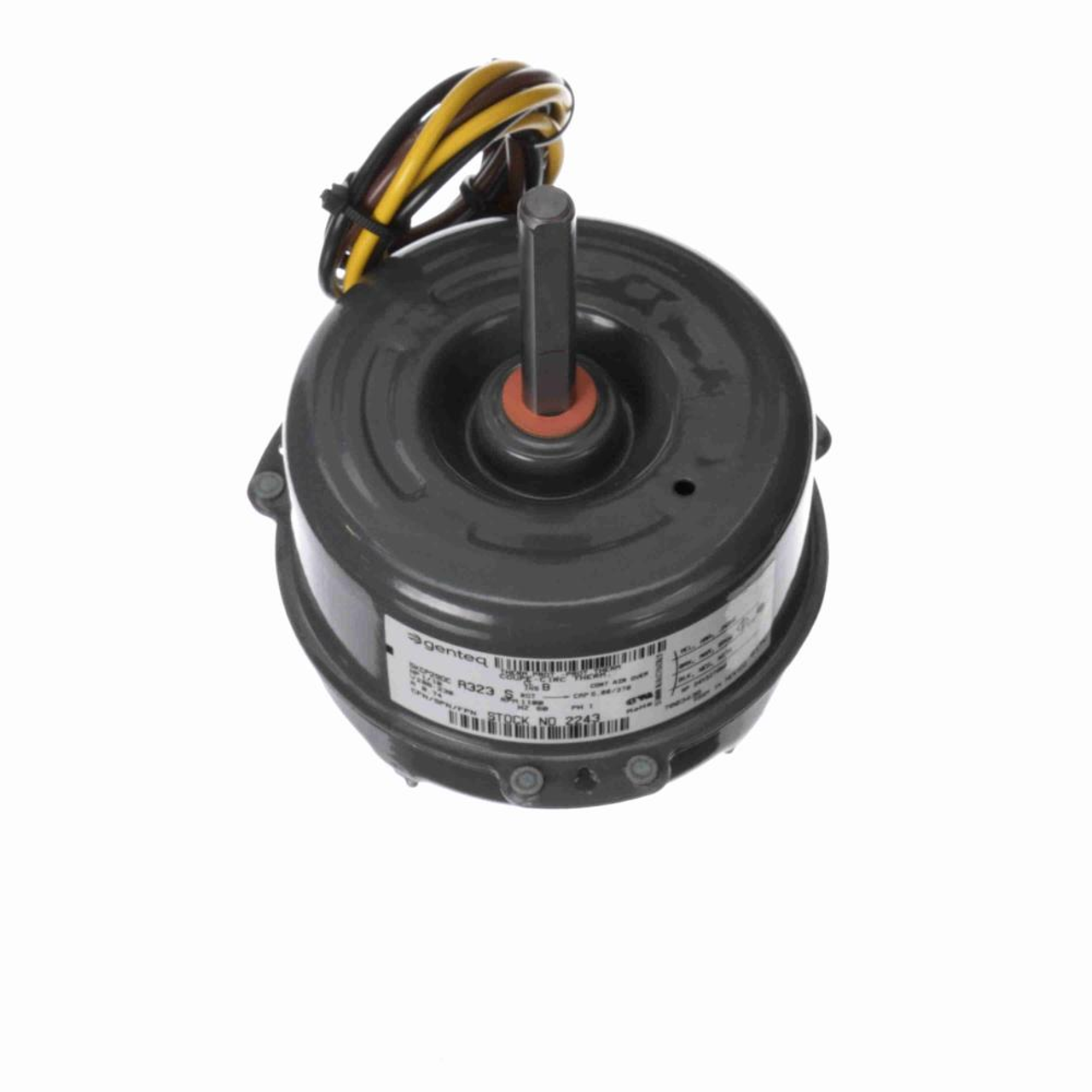

GENTEQ MOTORS 2S004 Motor

Product Description

The GENTEQ MOTORS 2S004 is a multi-purpose motor suitable for HVAC applications. It operates in a voltage range of 208-230V. This replacement motor features a permanent split capacitor design and ball bearing construction. It can be mounted using stud or belly band options with a totally enclosed air over design.

• Voltage range of 208-230V
• Designed for HVAC applications
• Features PSC design and ball bearing construction

Product Highlights

Product Information

Standard Information

• Manufacturer Part Number: 2S004
• Horsepower: 1/4-1/5-1/6

Technical Specifications

• Speeds: 1
• Full Load Amps: 1.6-0.7-1.0
• Rotation: Reversible
• RPM: 1625 - 1715 - 1759
• Bearing Type: Ball
• Diameter: 5 inches
• Enclosure: Totally Enclosed
• Mounting Type: Stud or Belly Band
• Service Factor: 1.00
• Shaft Length: 3 inches
• Motor Type: Permanent Split Capacitor
• Frame: 42
• Overload Protection: Automatic
• Phase: 1
• Shaft Diameter: 1/2 inches
• Shaft Orientation: Vertical Shaft Down
• Input Voltage: 208 - 230 V
• Capacitor Required: 5MFD/370V
• Motor Length: 4.1 inches
• Leads Length: 34 inches
• Weight: 11 lbs
