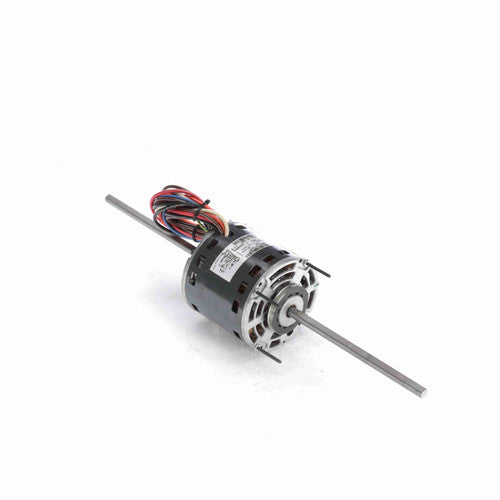

GENTEQ MOTORS 2837 Direct Drive Blower Motor - 1/6 HP, 115V, 1625 RPM

Product Description

The Genteq 2837 Direct Drive Blower Motor is designed for HVAC applications, including fan coil and room air conditioning. This motor operates at 1/6 HP and runs on 115V, providing a speed of 1625 RPM. The Permanent Split Capacitor (PSC) construction ensures efficient operation, reducing energy costs.

• Thermally protected motor
• Open air over design for effective cooling
• Easy installation with color-coded leads

Product Highlights

Reliable for various settings, the Genteq 2837 motor features a robust design ideal for continuous operation.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Product Type: Direct Drive Blower Motor

Technical Specifications

• Phase: 1
• Frequency: 60 Hz
• Horsepower: 1/6 HP
• Voltage: 115 V
• Amperage: 2.10 A
• Rotation: Counter-Clockwise
• Speed: 1625 RPM
• Bearings: Sleeve
• Capacitor: 5MFD/370VAC
• Enclosure Type: Open Air Over
• Frame: 42
• Motor Diameter: 5 inches
• Motor Shell Length: 4.5 inches
• Mounting Orientation: All Angle
• Shaft Diameter: 0.5 inches
• Thermal Protection: Thermally Protected
• Ship Weight: 12 lbs.
• Material: Rolled Steel
• Agency Approvals: CSA & UL
• Warranty: 1 YEAR
• Motor Orientation: Horizontal
