Product Information

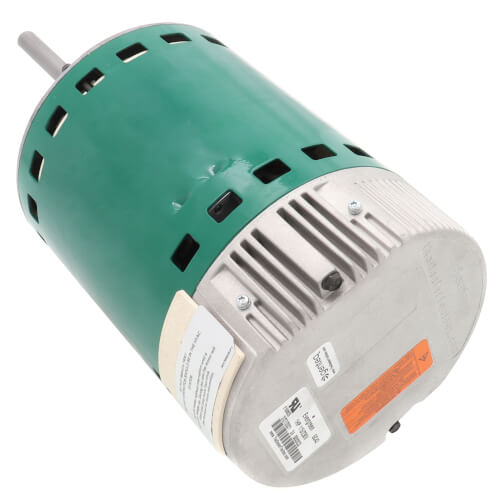

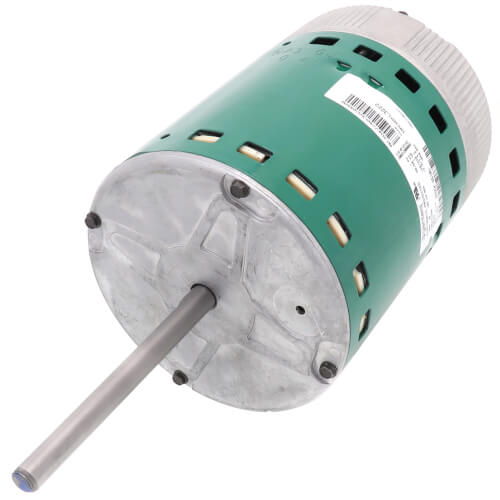

• Item: ECM Direct Drive Blower Motor
• Body Dia.: 5-1/2"
• Bolt Circle Dia.: 5-13/16"
• Capacitor Required: No
• Duty: Continuous
• Frame: 48
• Full Load Amps: 12.8/7.4
• HP: 1
• Hz: 60/50
• Length Less Shaft: 4-1/2"
• Max. Ambient Temp.: 45 Deg C
• Motor Application: H VAC/R
• Motor Design: ECM
• Motor Enclosure Design: Open Air-Over
• Motor Mounting Position: Vertical Shaft Down
• Motor Mounting Type: Band
• Motor Shaft Design: Flat
• Motor Shaft Rotation: CW/CCW
• Nameplate RPM: 1050
• Overall Length: 12-23/32"
• Phase: 1
• Shaft Dia.: 1/2"
• Shaft Length: 5"
• Voltage: 120/240
