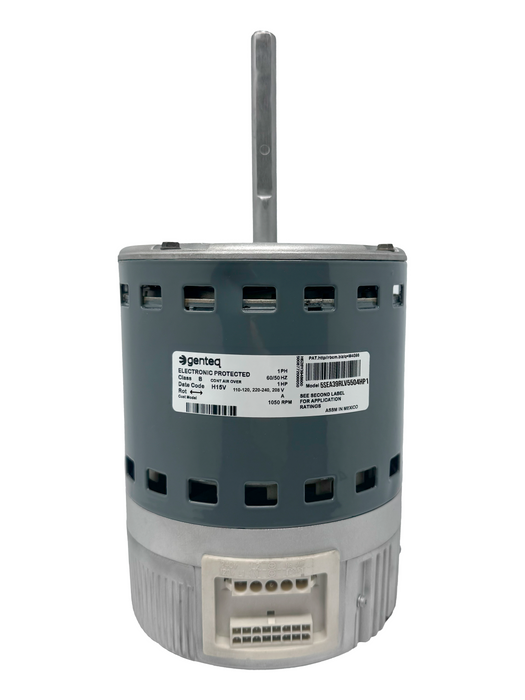

Genteq 5sea39rlv5504 Ecm Blower Motor 1 Hp 115/208-230V

Product Description

The GENTEQ 5sea39rlv5504 is an electronically commutated motor (ECM) designed for residential and light-commercial HVAC blower applications. Rated at 1 horsepower and operating on 115/208-230 volt single-phase power, this motor delivers variable-speed airflow control with up to 82% efficiency — a significant improvement over standard PSC motors. Built on a 48-frame platform with a 1/2-inch by 5-inch shaft, the 5sea39rlv5504 fits common blower assemblies in forced-air furnaces and air handlers. A licensed HVAC technician performs this replacement as part of a motor swap or full blower service.

This motor is suited for residential forced-air systems requiring a 16-pin variable-speed ECM replacement. It carries an EZ Interface (EZI) module included in the package, simplifying the transition from older ECM 2.0 and ECM 2.3 platform motors to the EON design. The motor is referenced as a compatible replacement for ECM 2.0, ECM2.0, ECM 2.3, ECM2.3, and EON 16-pin applications. Open air-over enclosure makes it appropriate for in-airstream blower compartment mounting. Optional mounting legs are available to fit varying blower housings.

Key Features

• ECM variable-speed design provides up to 82% motor efficiency
• Built-in 6000-volt surge protection guards against power transients
• EZ Interface (EZI) module included for simplified ECM 2.0/2.3 replacement wiring
• 16-pin connector compatible with existing ECM 2.0 and ECM 2.3 control wiring
• Reversible rotation (CW/CCW, Rev/Auto) for flexible installation orientation
• Ball bearings rated for continuous blower duty in open air-over enclosures

Compatibility

Referenced as a direct replacement for ECM 2.0, ECM2.0, ECM 2.3, ECM2.3, and EON 16-pin variable-speed blower motors in residential forced-air furnaces and air handlers requiring a 48-frame, 1 HP ECM motor.

Installation Notes

Installation must be performed by a qualified HVAC technician. Disconnect all power to the air handler or furnace at the breaker before removing the existing motor. Confirm that the replacement module harness and 16-pin connector seat fully before restoring power. Refer to the equipment manufacturer's wiring diagram and applicable local codes when re-terminating control and line-voltage connections.

Technical Specifications

• Horsepower: 1 HP
• Voltage: 115/208-230 volts
• Amperage: 9.3/5.9-5.5 amps
• RPM: 1075 (speed reference 1050 RPM)
• Frequency: 50/60 Hz
• Phase: 1
• Frame: 48
• Shaft Dimensions: 1/2 inch x 5 inches
• Enclosure: Open Air Over
• Motor Type: ECM - Electronically Commutated Motor
• Efficiency: Up to 82%
• Bearings: Ball (RACEM5861)
• Rotation: Reversible / Auto, CW/CCW
• Surge Protection: 6000 volts built-in
• Connector: 16-pin variable speed
• Mounting: Optional mounting legs available

Standard Information

• Brand: GENTEQ
• Manufacturer Part Number: 5sea39rlv5504
