Genteq 5sea39mlp7016 Ecm Motor 1 Hp 1050 Rpm 115V

Product Description

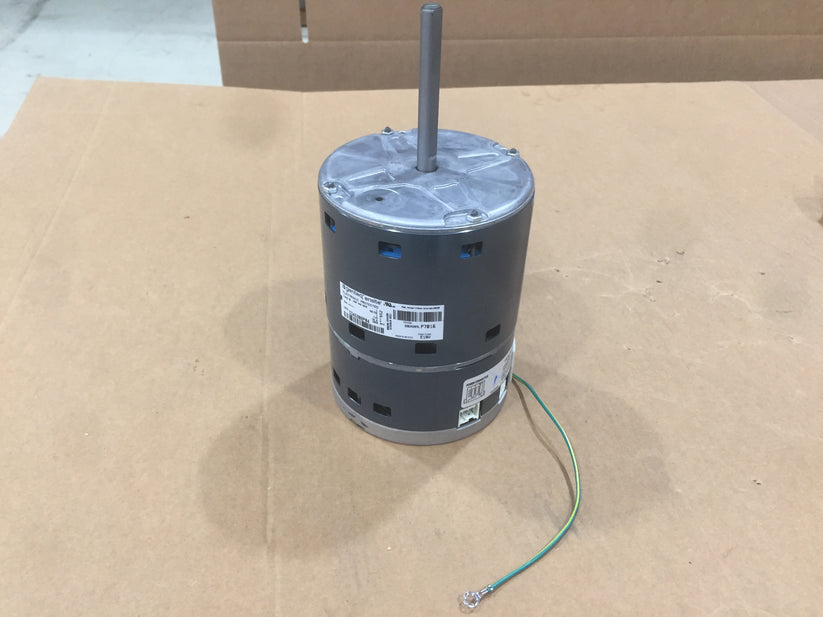

The GENTEQ 5sea39mlp7016 is a 1 HP unprogrammed ECM (electronically commutated motor) designed for use in HVAC air-handling applications. Running at 1050 RPM on 115 volts single-phase power at 50-60 Hz, it draws 10.9 amps and operates on a continuous duty cycle. The Frame 48 construction features an open air-over body with ball bearings for reliable, long-service rotation. Shaft dimensions measure 3-7/8 inches by 3-1/2 inches with a flat. Motor length less shaft is 7-3/8 inches, overall length is 11-1/4 inches, and motor diameter is 5-3/4 inches. Licensed HVAC technicians typically install this motor as a direct replacement in residential and light-commercial air-handling equipment.

This motor suits residential and light-commercial HVAC systems where an ECM blower or fan motor is required. The unprogrammed configuration allows the motor to be matched and programmed to the specific control module used in the target system. Clockwise rotation is standard. Typical installations include furnace blower assemblies, air handler units, and fan coil applications where variable-speed or efficient motor operation is needed. Cabinet size 6 is indicated for this unit.

Key Features

• 1 HP continuous-duty ECM motor rated at 1050 RPM
• 115V single-phase input, compatible with 50-60 Hz supply
• 10.9 amp draw for efficient operation in air-handling systems
• Frame 48 open air-over construction with ball bearings
• Clockwise rotation with 3-7/8 by 3-1/2 inch flat shaft
• Unprogrammed design for flexible field configuration with compatible ECM modules

Compatibility

Designed as an OEM-style replacement ECM motor for residential and light-commercial HVAC air-handling and furnace blower applications requiring a Frame 48, 1 HP, 1050 RPM, 115V single-phase motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing motor or making any wiring connections. Verify that the replacement motor matches the voltage, phase, and RPM requirements of the application before installation. As an unprogrammed ECM motor, proper pairing and programming with the system control module must be completed per the equipment manufacturer guidelines before returning the system to service.

Technical Specifications

• Horsepower: 1 HP
• Voltage: 115 volts
• Amperage: 10.9 amps
• Frequency: 50-60 Hz
• Phase: Single phase
• RPM: 1050
• Motor Type: ECM (Electronically Commutated Motor)
• Frame: 48
• Bearing Type: Ball
• Body Style: Open Air Over
• Duty: Continuous
• Rotation: Clockwise
• Shaft Dimensions: 3-7/8 inches x 3-1/2 inches flat
• Motor Length Less Shaft: 7-3/8 inches
• Overall Length: 11-1/4 inches
• Motor Diameter: 5-3/4 inches
• Cabinet Size: 6
• Circuit Voltage: 115-120 volts

Standard Information

• Brand: GENTEQ
• Manufacturer Part Number: 5sea39mlp7016
