Genteq 5sbc39glv5502 Ecm Blower Motor 1/2 Hp

Product Description

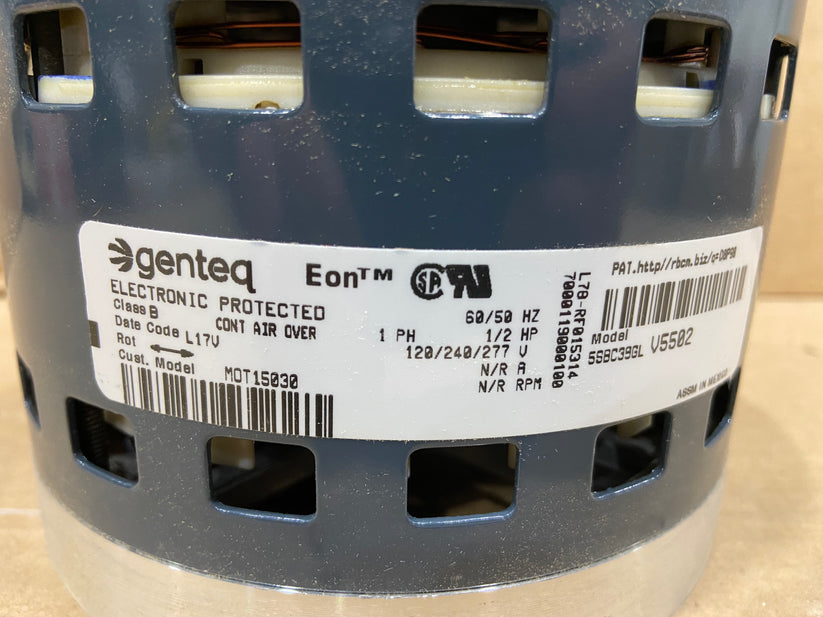

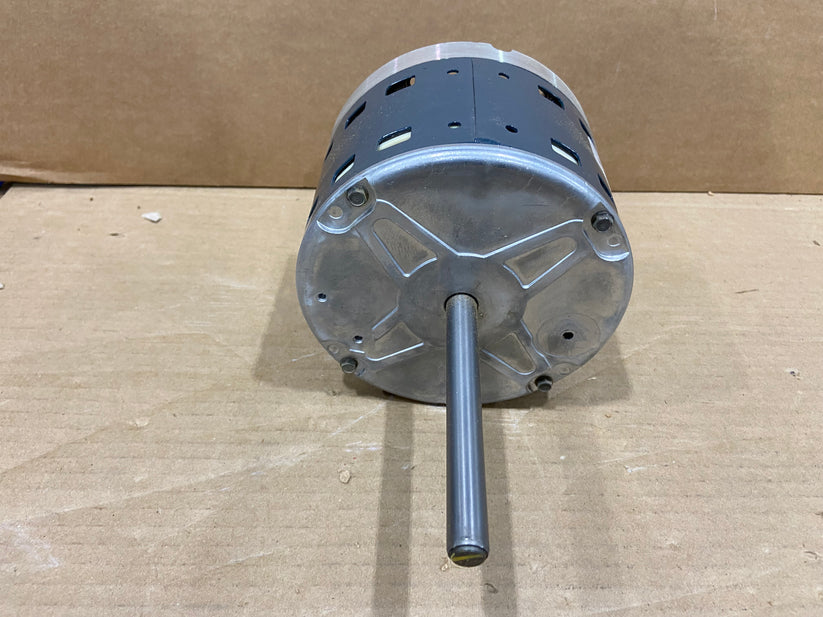

The GENTEQ 5sbc39glv5502 is a 1/2 HP electronically commutated motor (ECM) designed for blower applications in forced-air HVAC systems. It operates on multi-voltage input — 120, 240, or 277 volts — at 50 or 60 Hz, making it adaptable to a range of residential and light commercial installations. The motor features a Frame 48 configuration, ball bearings for long service life, and an open air-over body rated for continuous duty. Rotation is reversible, and the shaft measures 0.5 inches in diameter by 4.25 inches in length with a flat. A licensed HVAC technician typically handles installation and startup.

This ECM blower motor is suited for air handler and furnace blower assemblies where multi-voltage flexibility and continuous-duty operation are required. The belly band mounting style is common in residential and light commercial air handlers. Its open air-over enclosure is designed for applications where airflow passes over the motor to provide cooling during operation. The reversible rotation feature allows field configuration to match the specific blower assembly orientation without stocking multiple motor variants.

Key Features

• ECM motor type for improved efficiency over standard PSC motors
• Multi-voltage capable: 120, 240, and 277 volts single phase
• 50/60 Hz compatible for broad application flexibility
• Reversible rotation — field configurable to match blower orientation
• Ball bearing construction rated for continuous duty operation
• Belly band mounting with 0.5 x 4.25 inch flat shaft
• Open air-over body design — cooled by system airflow

Compatibility

Designed as an OEM-style replacement ECM blower motor for residential and light commercial forced-air HVAC systems using a Frame 48 belly band mount configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the air handler or furnace before removing the existing motor or making any wiring connections. Verify that supply voltage matches one of the motor rated inputs (120, 240, or 277 volts) before energizing. Consult NEC requirements and local codes for proper wiring methods and disconnect sizing when replacing ECM blower motors.

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 120/240/277 volts
• Frequency: 50-60 Hz
• Phase: Single phase
• Motor Type: ECM
• Frame: 48
• Speeds: 1
• Rotation: Reversible
• Bearing Type: Ball
• Enclosure: Open Air Over
• Duty: Continuous
• Shaft Diameter: 0.5 inches
• Shaft Length: 4.25 inches
• Shaft Style: Flat
• Motor Length (Less Shaft): 4 inches
• Overall Length: 8.5 inches
• Motor Diameter: 5.5 inches
• Mounting: Belly Band
• Weight: 9 pounds
• Country of Origin: Mexico

Standard Information

• Brand: GENTEQ
• Manufacturer Part Number: 5sbc39glv5502
