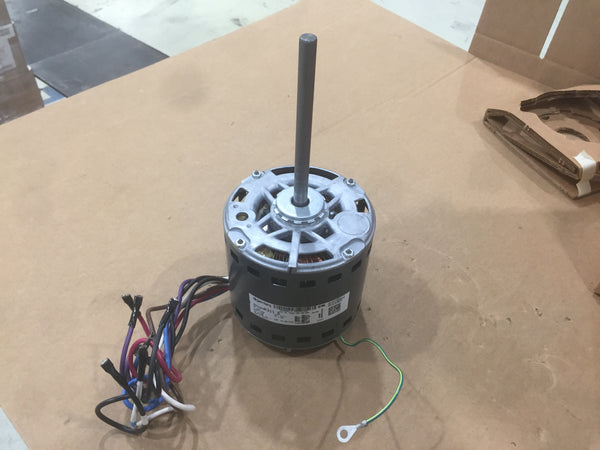

Genteq 5kcp39ngk311s Psc Motor 1/2 Hp 1120 Rpm 48 Frame

Product Description

The GENTEQ 5kcp39ngk311s is a 1/2 HP permanent split capacitor (PSC) electric motor designed for continuous-duty HVAC blower applications. Rated at 400-460 volts, 50/60 Hz, single-phase, it delivers 1120 RPM across three speeds, making it well suited for air handler and furnace blower assemblies where variable airflow is required. The motor draws 1.6 amps and is built on a 48 frame with an open air-over body, sleeve bearings, and belly band mounting. The shaft measures 6 inches long by 1/2 inch diameter with a flat, and overall motor length is 11.5 inches. Licensed HVAC technicians and refrigeration mechanics are the primary installers for this unit.

This motor is intended for residential and light commercial HVAC systems, specifically in forced-air applications where an open air-over PSC blower motor is specified. The three-speed configuration allows field selection of airflow to match system design requirements. Counter-clockwise rotation must be confirmed against the existing blower assembly before installation. The 48 frame and belly band mounting are standard configurations found across a wide range of air handler and furnace blower housings.

Key Features

• 1/2 HP continuous-duty PSC motor rated for 400-460 volts, 50/60 Hz, single phase
• Three-speed operation at 1120 RPM for field-selectable airflow
• 48 frame with belly band mounting for broad housing compatibility
• Open air-over body with sleeve bearings suited for blower-in-airstream installations
• Counter-clockwise rotation shaft: 6 inches long, 1/2 inch diameter with flat
• Manufactured in Mexico and shipped in original manufacturer packaging

Compatibility

Designed as an OEM-style replacement PSC blower motor for residential and light commercial forced-air HVAC systems requiring a 48 frame, belly band mount, open air-over motor with counter-clockwise rotation and three-speed operation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing motor. Confirm shaft rotation direction, speed tap wiring, and voltage rating match system requirements before energizing. Belly band mounting hardware should be inspected and torqued to the housing manufacturer's specification using the existing mounting band.

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 400-460 volts
• Frequency: 50/60 Hz
• Phase: 1
• Amperage: 1.6 amps
• RPM: 1120
• Number of Speeds: 3
• Motor Type: PSC
• Frame: 48
• Bearing Type: Sleeve
• Body Type: Open Air Over
• Duty: Continuous
• Rotation: Counter Clockwise
• Shaft Dimensions: 6 inches x 1/2 inch with flat
• Motor Length Less Shaft: 5.5 inches
• Overall Length: 11.5 inches
• Motor Diameter: 5.75 inches
• Mounting: Belly Band
• Weight: 15 pounds
• Country of Origin: Mexico

Standard Information

• Brand: GENTEQ
• Manufacturer Part Number: 5kcp39ngk311s
