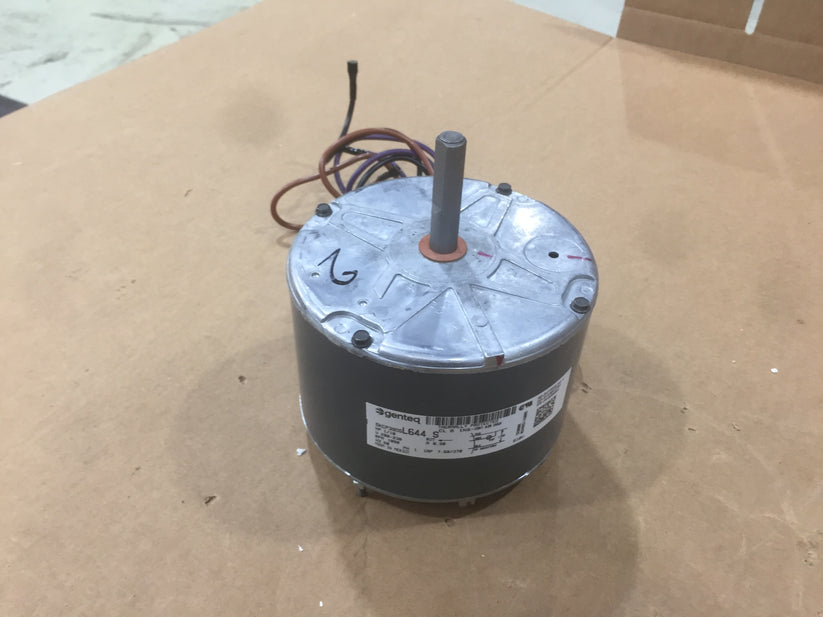

Genteq 5kcp39dgl644s Psc Motor 1/10 Hp 1080 Rpm

Product Description

The GENTEQ 5kcp39dgl644s is a permanently split capacitor (PSC) motor rated at 1/10 horsepower, designed for use in HVAC equipment where reliable, continuous-duty fan operation is required. Running at 1080 RPM on a single-speed configuration, it operates on 200-230 volts at 60 Hz, drawing 0.9 amps. The motor uses ball bearings for long service life and features a totally enclosed body to protect internal components from contaminants. It is installed by licensed HVAC technicians as a direct replacement in residential and light commercial air-handling applications.

This motor fits cabinet size 6 equipment and is suited for single-phase, 208-230 volt systems running at 60 Hz. The 48 frame designation and belly band mounting style make it a common replacement in evaporator fan and condenser fan assemblies. Counter-clockwise shaft rotation must be confirmed against the original equipment requirement before installation. The shaft measures 2.125 inches in length with a 1.25-inch flat, accommodating standard fan blade hubs used in typical HVAC installations.

Key Features

• PSC motor type for efficient single-phase fan drive applications
• Totally enclosed body protects against dust and debris in HVAC environments
• Ball bearing construction supports continuous-duty operation and extended service life
• Belly band mounting for straightforward drop-in replacement in standard 48 frame housings
• Counter-clockwise rotation — verify against OEM specification before installation
• Manufactured in Mexico and shipped in original manufacturer packaging

Compatibility

Designed as an OEM-style replacement PSC motor for single-phase residential and light commercial HVAC fan applications using a 48 frame, belly band mount configuration with 200-230 volt, 60 Hz single-phase power.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all power to the unit before removing the original motor. Confirm shaft rotation direction, voltage rating, and RPM match the original motor before wiring. Secure the belly band mount evenly to prevent vibration and verify shaft coupling to the fan blade is tight before returning the system to service.

Technical Specifications

• Horsepower: 1/10 HP
• Voltage: 200-230 volts
• Frequency: 60 Hz
• Phase: 1
• Amperage: 0.9 amps
• Speed: 1080 RPM
• Motor Type: PSC
• Frame: 48
• Bearing Type: Ball
• Enclosure: Totally Enclosed
• Duty: Continuous
• Rotation: Counter Clockwise
• Shaft Dimensions: 2.125 inches x 1.25 inches flat
• Motor Length Less Shaft: 3.75 inches
• Overall Length: 5.875 inches
• Motor Diameter: 5.75 inches
• Mounting: Belly Band
• Weight: 9 pounds
• Country of Origin: Mexico

Standard Information

• Brand: GENTEQ
• Manufacturer Part Number: 5kcp39dgl644s
