Genteq 45963-101 Ecm Motor Module 3/4 Hp Variable Speed

Product Description

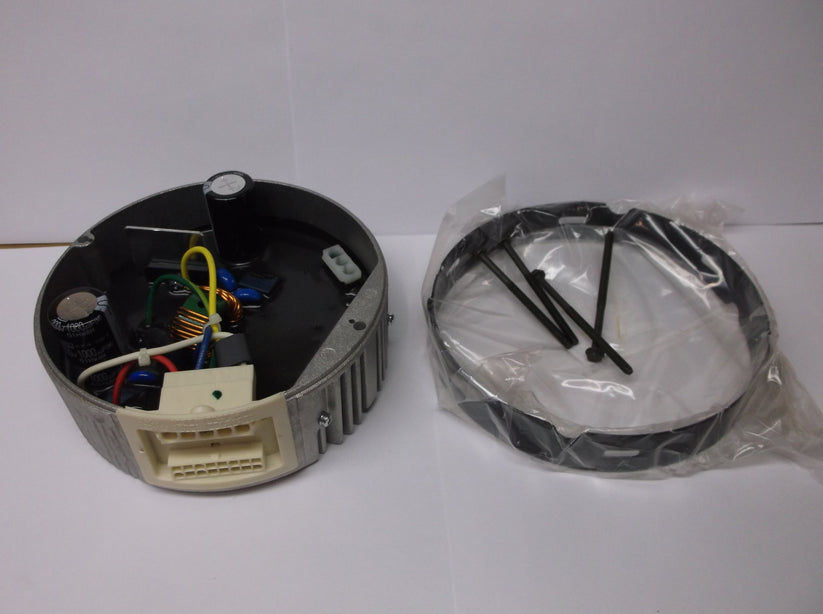

The GENTEQ 45963-101 is a programmed ECM motor module rated at 3/4 HP, designed as a variable-speed replacement module for VS 5.0 ECM motor platforms. Operating on 208-230 volts, single-phase, 60 Hz power at 4.3 amps, this module delivers variable-speed control across an RPM range of 0 to 1200. It is housed in a standard 48-frame configuration and rotates counter-clockwise from the lead end. HVAC technicians install this module as part of a two-component ECM system, separating the electronics from the motor windings to simplify service and reduce parts cost on blower motor replacements.

This module is used in residential forced-air heating and cooling systems that use the VS 5.0 ECM platform. It is typically found in gas furnaces, air handlers, and fan coil units where variable-speed blower operation is required for efficiency and comfort control. The programmed configuration means the module arrives ready for drop-in installation on compatible VS 5.0 motor stators without additional programming. Licensed HVAC technicians performing blower section service or module-only replacements are the primary installers of this part.

Key Features

• Programmed for VS 5.0 ECM platform — no field programming required
• Variable speed operation from 0 to 1200 RPM for precise airflow control
• Rated 3/4 HP at 208-230V, single-phase, 60 Hz
• 4.3-amp draw supports standard residential HVAC electrical circuits
• 48-frame housing for compatibility with standard blower motor mounting configurations
• Counter-clockwise rotation from lead end — verify rotation before installation

Compatibility

Designed as a programmed replacement module for VS 5.0 ECM motor platforms in residential forced-air HVAC systems. Confirm stator compatibility and rotation requirement before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the air handler or furnace before removing or installing the motor module. Verify that the replacement module rotation matches the existing stator and blower wheel orientation before completing installation. Follow NEC guidelines for low-voltage control wiring and equipment grounding during reassembly.

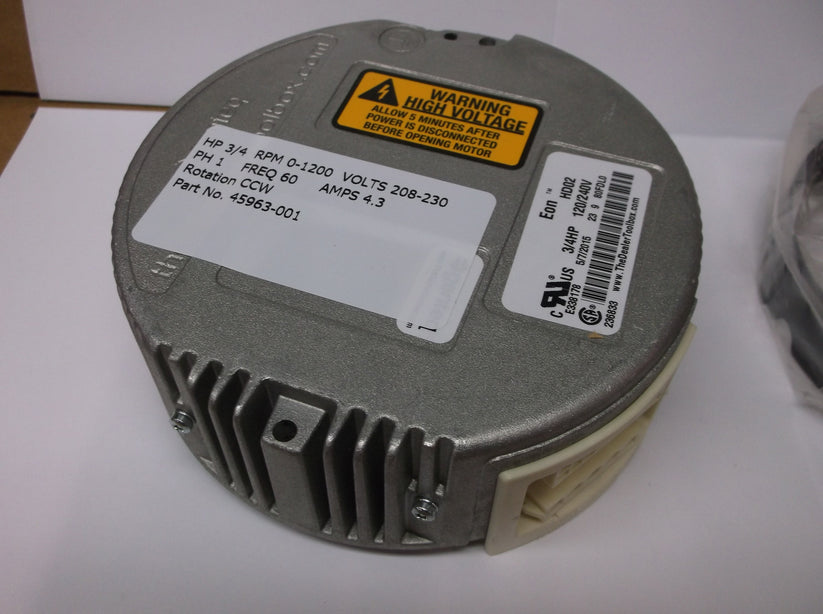

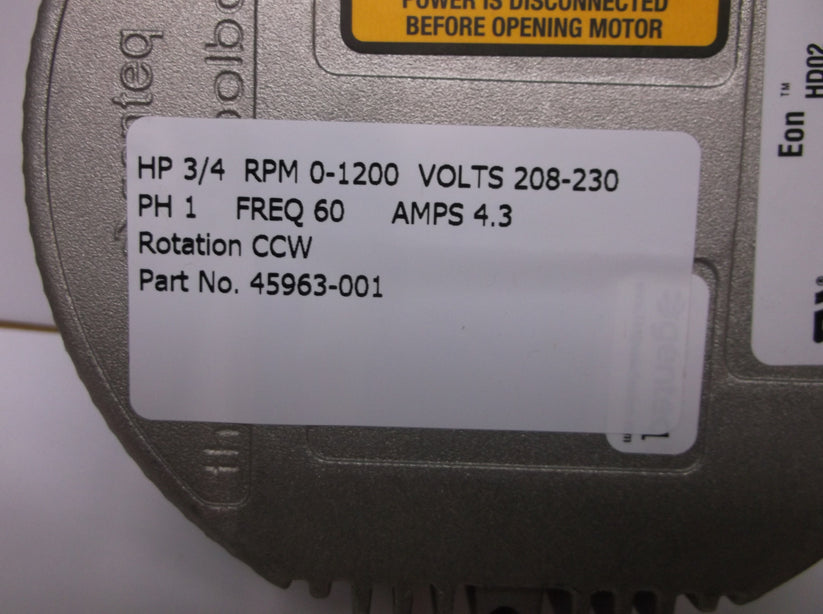

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 208-230 volts
• Phase: 1
• Frequency: 60 Hz
• Amperage: 4.3 amps
• RPM Range: 0-1200 variable speed
• Frame: 48
• Rotation: Counter-clockwise lead end
• Weight: 2 pounds
• Motor Platform: VS 5.0

Standard Information

• Brand: GENTEQ
• Manufacturer Part Number: 45963-101
