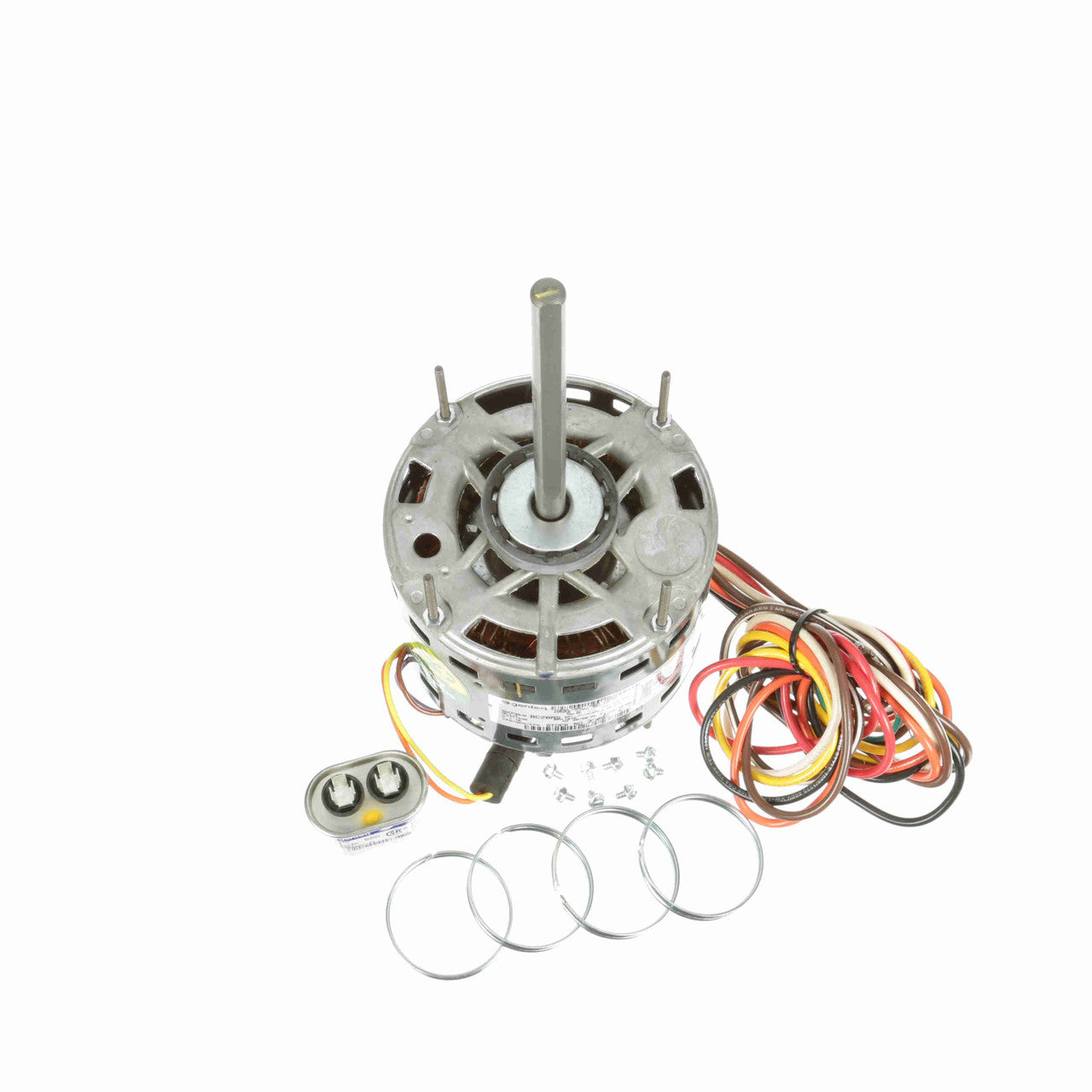

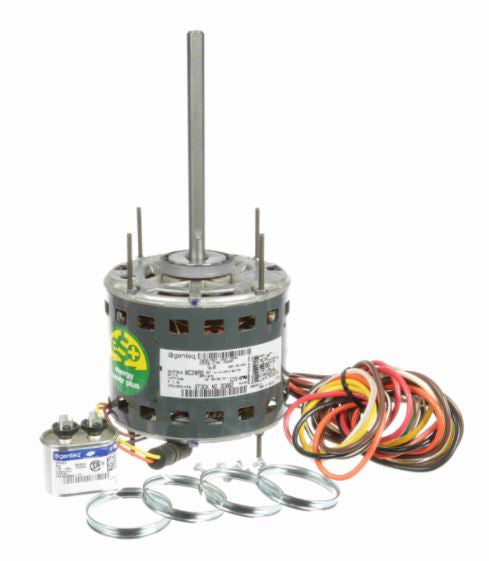

Genteq 3D002 direct drive blower motor 1/4 hp 1075 rpm 277/230 volts

Product Description

The Genteq 3D002 is a Direct Drive Blower Motor designed for HVAC/R applications. This 1/4 HP, 1075 RPM motor operates at 277/230 Volts with a reversible rotation. It features an Open Air Over enclosure, ball bearings, and a 1/2-inch shaft diameter, ensuring continuous air movement for various systems.

• Direct Drive Blower Motor for HVAC/R applications
• 1/4 HP, 1075 RPM, 277/230 Volts operation
• Reversible rotation, Open Ventilated design, and Ball Bearings

Product Highlights

Direct drive blower motor with 1/4 HP, 1075 RPM, and 277/230 Volts, featuring reversible rotation and ball bearings.

Product Information

Standard Information

• Brand: GENTEQ
• Manufacturer Part Number: 3D002
• Country of Origin: Mexico

Technical Specifications

• Brand: Genteq
• MPN: 3D002
• Product Category: HVAC/R Motors > Fan and Blower Motors > Direct Drive Motors
• Horsepower: 1/4
• Voltage: 277/230
• Frequency: 60
• Amperage: 1.10
• RPM: 1075
• Speeds: 4
• Phase: 1
• Enclosure Type: Open Air Over
• Rotation: Reversible
• Mounting Type: Round Belly Band
• Frame Type: 48
• Frame Material: Rolled Steel
• Shaft Diameter: 1/2 in.
• Shaft Extension: 6.50 in.
• Shaft Type: Flat
• Drive End Bearing Type: Ball
• Opposite Drive End Bearing Type: Ball
• Overall Length: 11.89 in.
• Electrical Type: Permanent Split Capacitor
• Duty: Continuous Air Over
• Motor Orientation: Any
• Service Factor: 1
• Overload Protection: Thermally Protected
• Insulation Class: B
• Max Ambient Temperature: 40°C
• UL Certification: Recognized
• CE Certification: N
• CSA Certification: Y
• Poles: 6
• Model Number: 5KCP39JGBC28AS
• Output Kilowatts: 0.19 kW
• Frame Length: 3.82 in.
• A2L Status: A2L Compliant
• Run Capacitor: 5 Mfd-370 Volts
