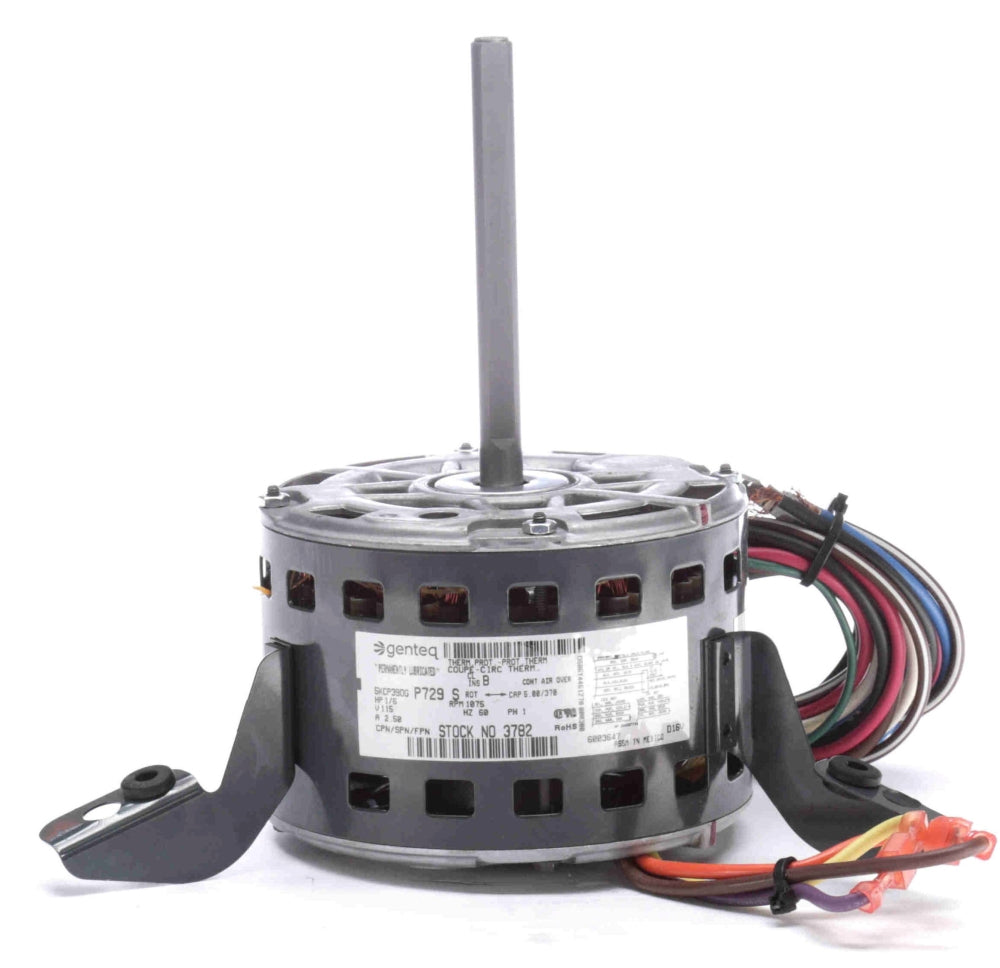

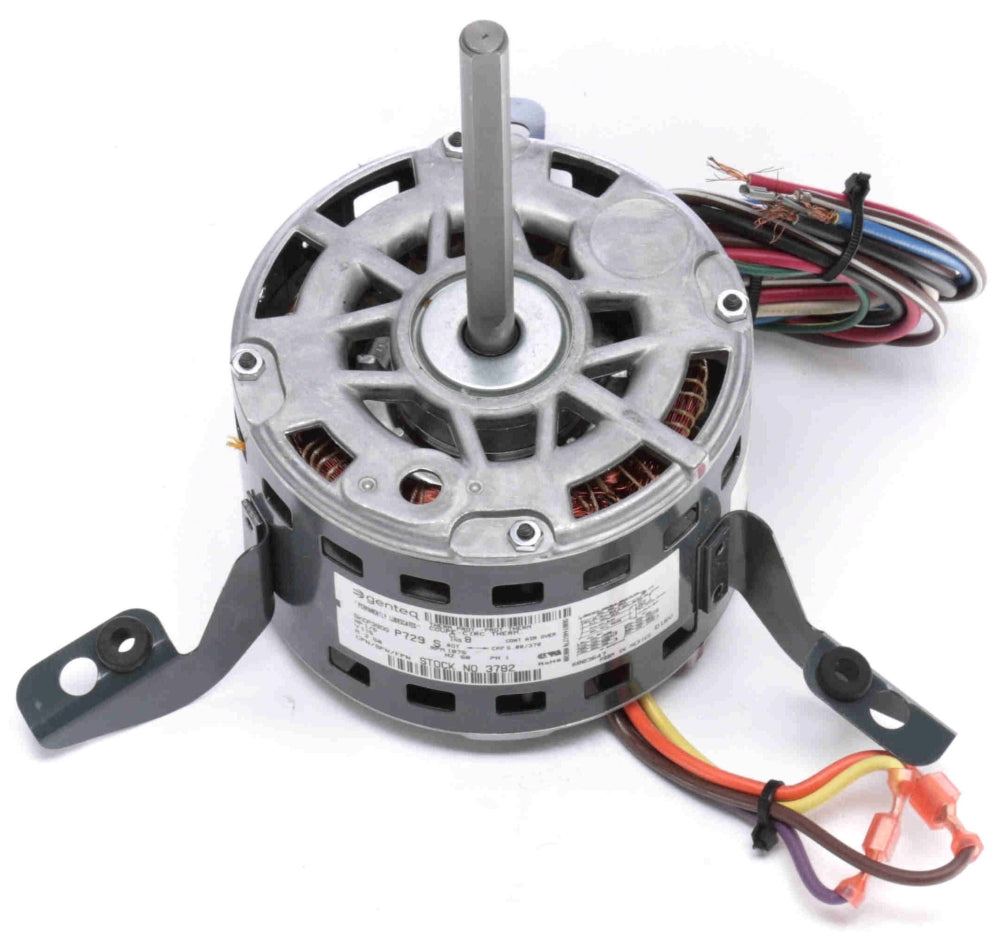

Genteq 3782 Direct Drive Furnace Motor w/ Torsion Flex Mounting 1/6 HP 1075 RPM

Product Description

The Genteq 3782 is a direct drive furnace motor designed for air over applications. The motor has a power rating of one-sixth horsepower and operates at 115 volts AC with a frequency of sixty hertz.

• Rated at 1075 RPM and offers three-speed options.
• Features a torsion flex lug mount for easy installation.
• Includes thermal overload protection for improved motor safety.

Product Highlights

This motor is suitable for furnace blowers and central air handling units. It is reversible and thermally protected, ensuring consistent performance.

Product Information

Standard Information

• Manufacturer: Genteq
• Application: Direct Drive Fan and Blower

Technical Specifications

• Power Rating: 1/6 HP
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 2.5 Amp
• Speed Rating: 1075 RPM
• Insulation Class: B
• NEMA Frame Size: 48
• Weight: 11 Pound
• Mounting: Torsion Flex Lug
• Shaft Type: Flat
• Orientation: Any
• Bearing Type: Sleeve
• Number of Poles: 6
