Product Description

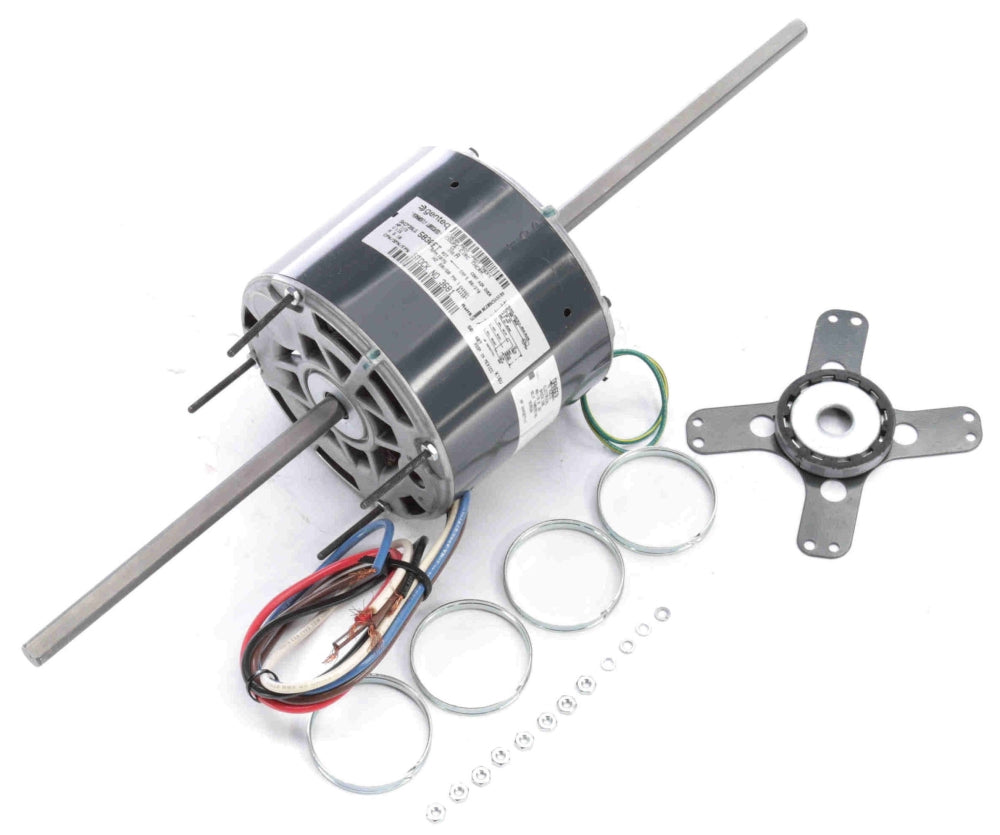

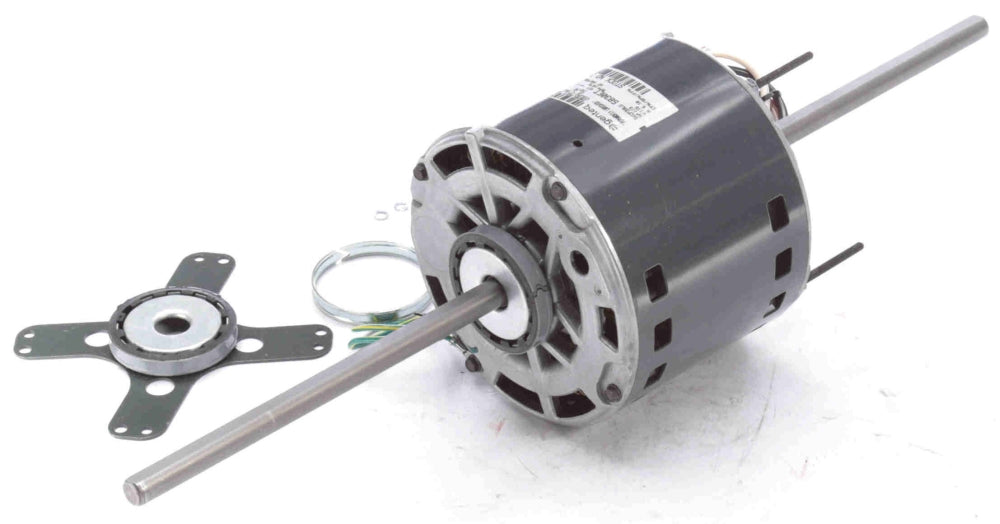

The Genteq 3681 is a reliable fan and blower motor designed for HVAC applications. It features a power rating of one-third horsepower and operates on 115 volts AC with a single phase. This motor is built to deliver a speed of 1075 RPM while maintaining a current load of 5.1 amps.
- Enclosure type: Open air-over
- Continuous duty operation
- Resilient ring mounting
Product Highlights
This motor provides efficient airflow for various ventilation tasks. It is suitable for horizontal applications and operates quietly, making it ideal for residential and commercial environments.
Product Information
Standard Information
Technical Specifications
-
Power Rating: 1/3 HP
-
Voltage Rating: 115 Volt AC 1-Phase
-
Current Rating: 5.1 Amp
-
Speed Rating: 1075 RPM
-
Frequency Rating: 60 Hertz
-
Number of Speeds: 3
-
NEMA Frame Size: 48
-
Insulation Class: A
-
Frame Material: Rolled Steel
-
Shaft Type: Flat
-
Bearing Type: Sleeve
-
Mounting: Resilient Ring
-
Rotation Type: Counter Clockwise
-
Overall Length: 20 inches
-
Shaft Size: 0.5 inches in diameter x 7.5 inches in length
-
Ambient Temperature Rating: 40 Deg C
