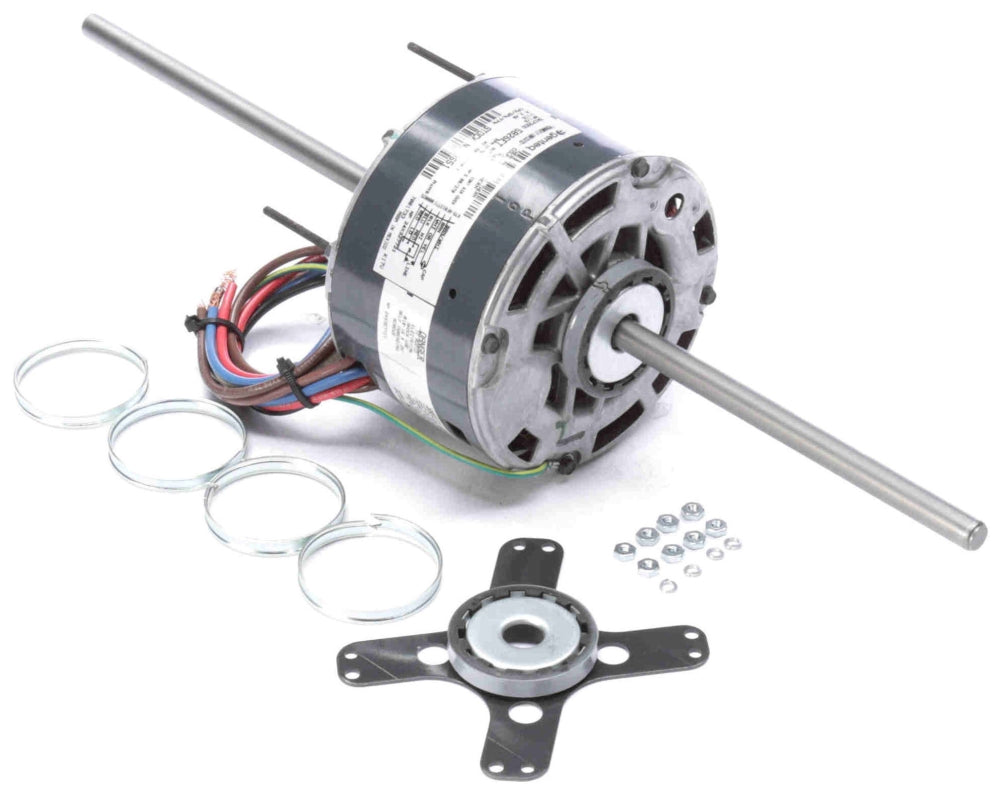

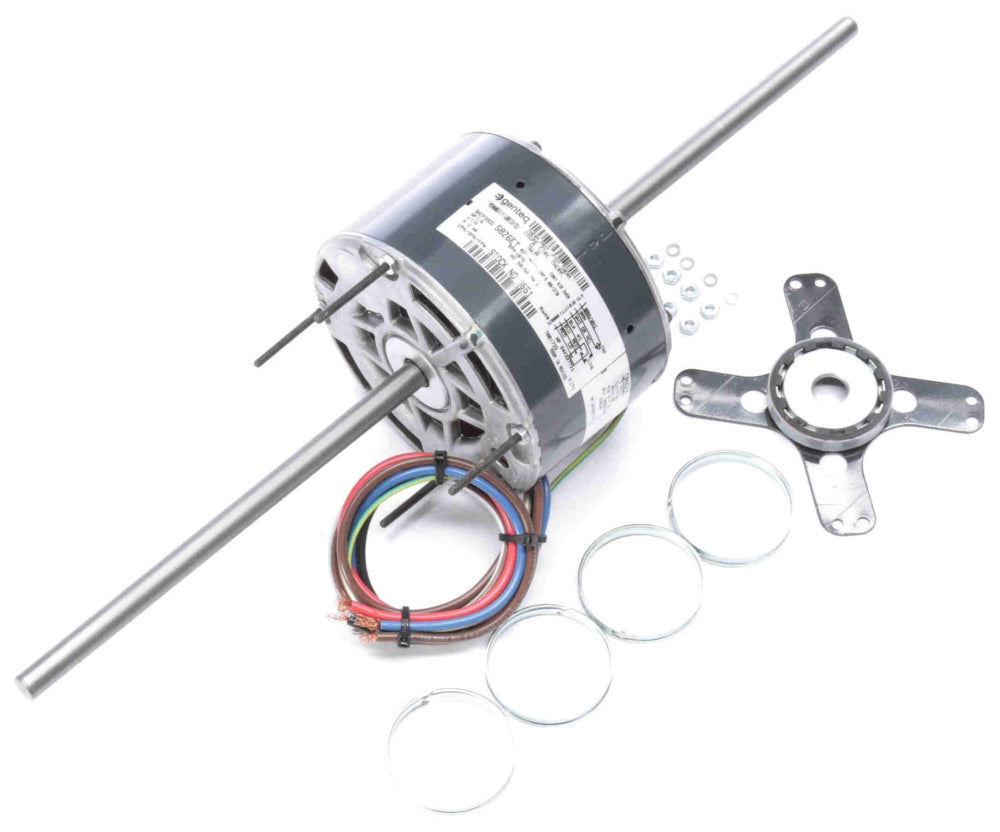

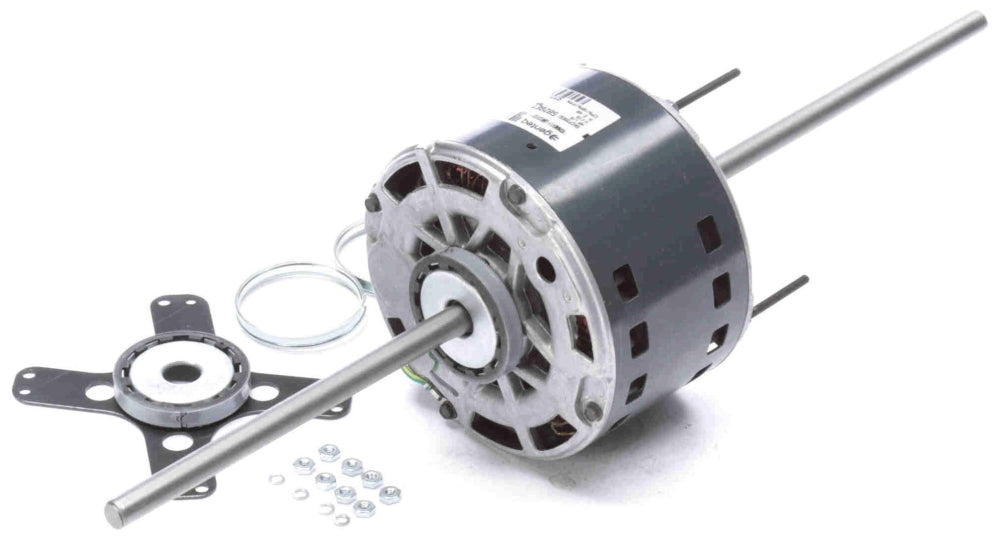

Genteq 3651 1/6 HP 115 VAC 60 Hz 1-Phase Blower Motor

Product Description

The Genteq 3651 is a blower motor designed for HVAC applications. It operates at one-sixth horsepower and uses one hundred fifteen volts with a frequency of sixty hertz. The motor is suitable for various air-moving applications, such as fans and blowers.

• Designed for open air-over enclosure
• Class A insulation for reliability
• Permanent split capacitor and direct drive system

Product Highlights

This motor supports three-speed operation and has a speed rating of one thousand seventy-five RPM. It is designed for horizontal orientation and provides efficient performance.

Product Information

Standard Information

• Product ID: 13914
• Manufacturer: Genteq

Technical Specifications

• Power Rating: 1/6 HP
• Voltage Rating: 115 Volt AC, 1-Phase
• Current Rating (FLA): 2.4 Amp
• Speed Rating: 1075 RPM
• Frequency Rating: 60 Hertz
• NEMA Frame Size: 48
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting Type: Resilient Ring
