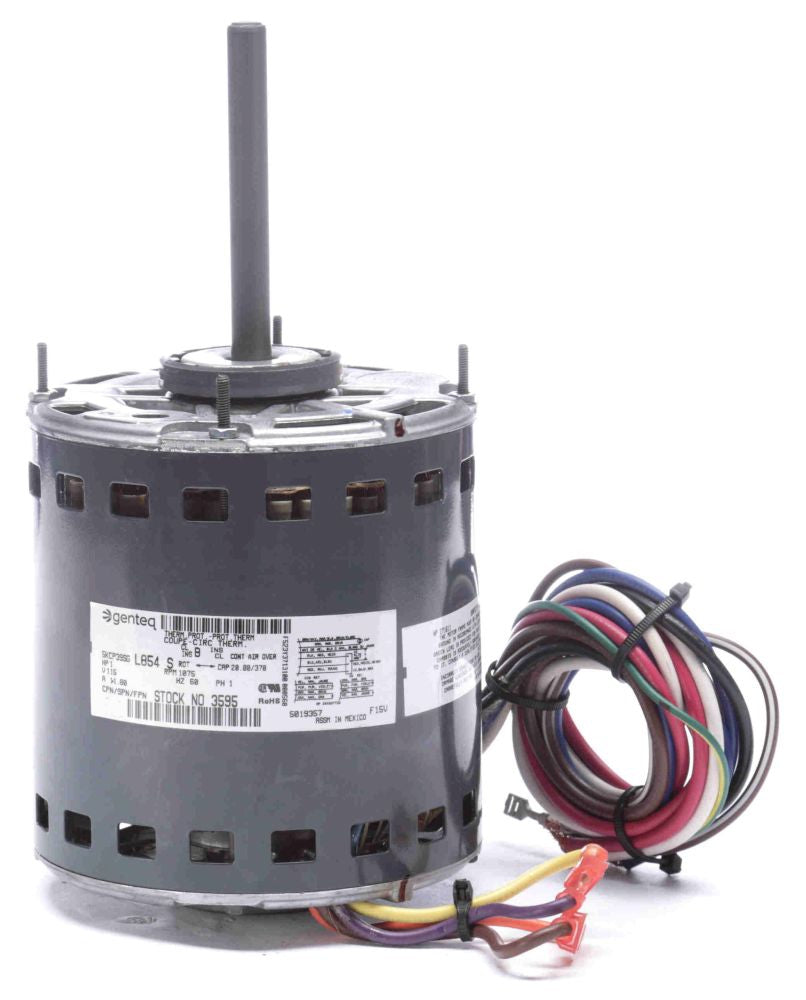

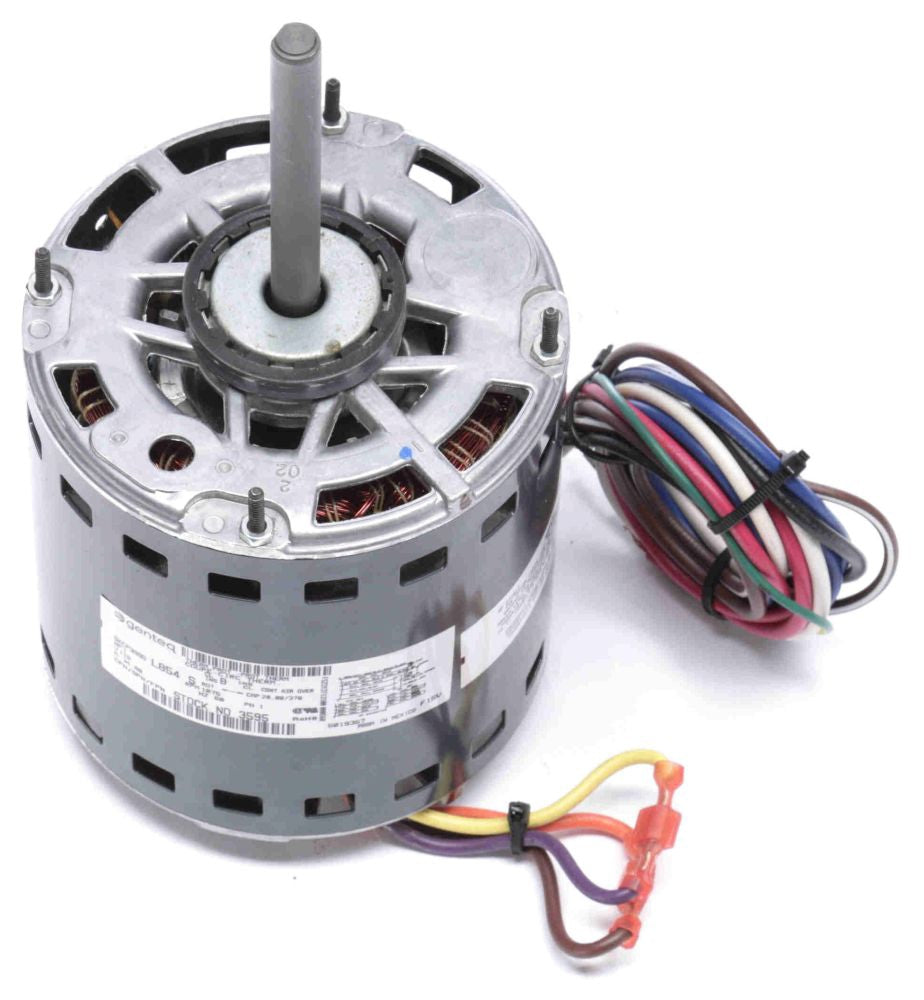

Genteq 3595 1 HP 115 VAC 60 Hz 1-Phase 1075 RPM 3-Speed Blower Motor

Product Description

The Genteq 3595 is a high-performance blower motor designed for HVAC applications, delivering 1 HP power across 3 speeds. Ideal for both fan and blower applications, this motor ensures efficient airflow management. Constructed with a rolled steel frame, it features a resilient ring mount, ensuring durability and reliability.

• Robust 115 VAC, 1-phase, 60 Hz motor with a 1075 RPM speed rating.
• Features a reversible operation with a permanent split capacitor and direct drive configuration.
• Class B insulation and UL, CSA approved for safety and efficiency.

Product Highlights

With a front and rear ball bearing design, the Genteq 3595 motor maintains a consistent and quiet performance even under continuous duty. Its thermal protection aids in the motorinchu2019s longevity, making it suitable for open air-over environments.

Product Information

Standard Information

• Enclosure Type: Open Air-Over
• Mounting: Resilient Ring

Technical Specifications

• Power Rating: 1 HP
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 11.8 Amp
• NEMA Frame Size: 48
• Number of Speeds: 3
• Speed Rating: 1075 RPM
• Reversible: Yes
• Insulation Class: B
• Frame Material: Rolled Steel
