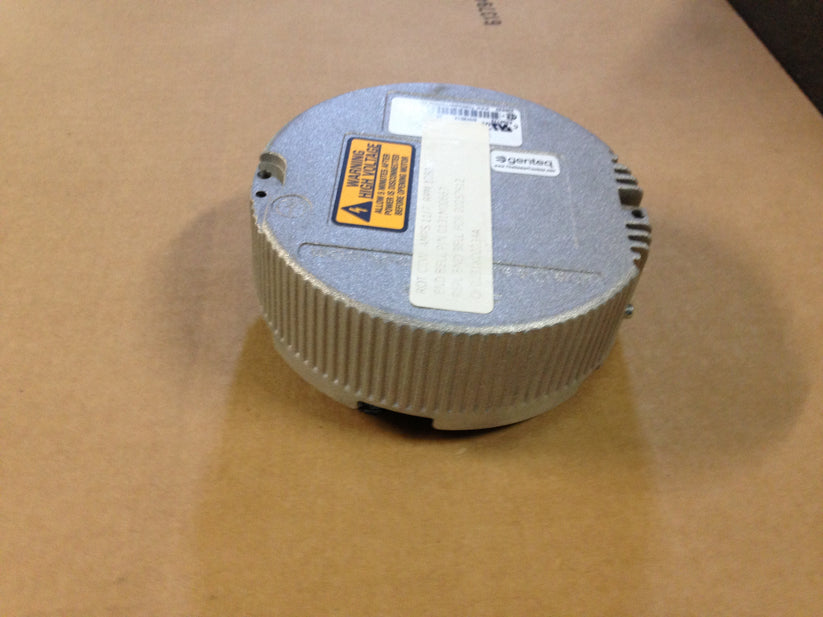

Genteq 0131m00667 End Bell Kit 1HP 120-240V 1050 Rpm

Product Description

The GENTEQ 0131m00667 is a 1 HP end bell kit designed as a replacement end assembly for compatible ECM blower motors used in residential and light commercial HVAC systems. Rated for 120 to 240 volts with a current draw of 11 amps at 120 volts or 7 amps at 240 volts, this kit delivers reliable performance at 1050 RPM with counterclockwise (CCW) rotation. The kit ships complete with one module, one band, and the required hardware, making it a straightforward drop-in service solution. Manufactured in the USA, it is a recognized replacement for OEM end bell assemblies used in matched motor configurations.

This end bell kit is intended for use in residential forced-air HVAC applications where the motor end assembly has failed but the motor housing remains serviceable. HVAC technicians typically use this kit to restore motor function without replacing the entire blower motor assembly. It is a direct replacement for end bell part numbers 20257912 and 0231K00034A, allowing field service without full motor changeout. The compact profile at 2 inches height and 5.4375 inches diameter fits standard motor frame installations in gas furnaces, air handlers, and heat pump blower assemblies.

Key Features

• Complete kit includes module, band, and mounting hardware — no separate component sourcing required
• Dual-voltage rated at 120 to 240 volts for flexible application
• 1050 RPM operating speed with CCW rotation for correct blower airflow direction
• Direct replacement for end bell assemblies 20257912 and 0231K00034A
• Compact dimensions: 2 inches height by 5.4375 inches diameter
• Made in USA

Compatibility

Direct replacement for motors using end bell part number 20257912 or 0231K00034A. Verify motor frame diameter and rotation direction before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing end bell assembly. Confirm that the replacement CCW rotation matches the original motor orientation prior to reassembly. Refer to the equipment manufacturer's service manual for any torque or alignment specifications applicable to the motor housing.

Technical Specifications

• Horsepower: 1 HP
• Voltage: 120-240 volts
• Amperage: 11 amps at 120 volts / 7 amps at 240 volts
• RPM: 1050
• Rotation: CCW (Counterclockwise)
• Height: 2 inches
• Diameter: 5.4375 inches
• Weight: 2 pounds
• Kit Contents: Module (1), Band (1), Hardware (1)
• Country of Origin: USA

Standard Information

• Brand: GENTEQ
• Manufacturer Part Number: 0131m00667
