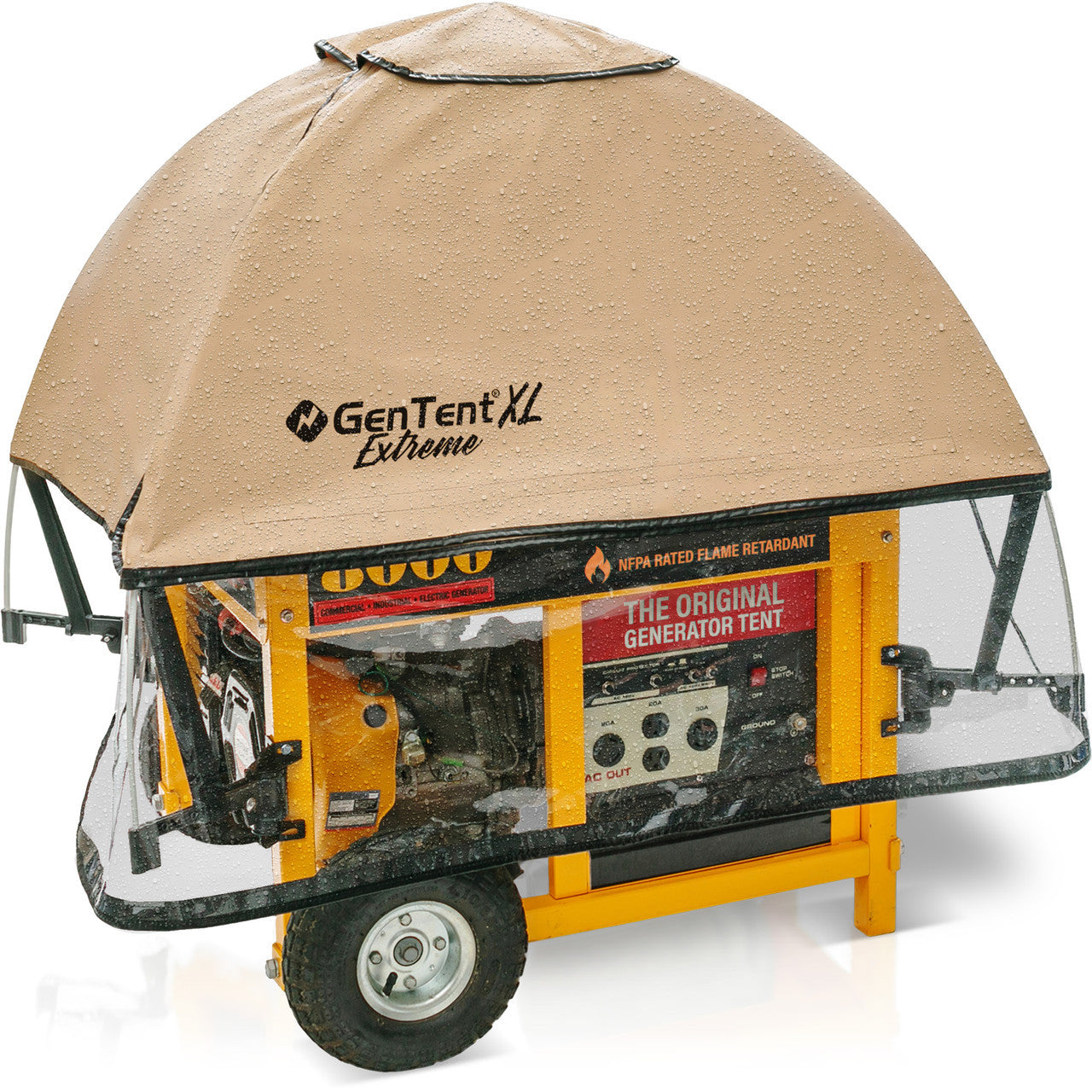

Gentent GTXPFUAE Xl Universal Generator Running Cover

Product Description

The GENTENT GTXPFUAE is an XL Universal Portable Generator Running Cover designed for the Extreme Edition line. It lets technicians and operators safely run open-frame portable generators outdoors in rain, snow, and high winds without interrupting power output. The canopy is constructed from NFPA 701 flame-retardant, waterproof dual-coated rip-stop vinyl-coated polyester with welded seams and UV treatment. It carries a cold crack temperature rating of -45 degrees F to 167 degrees F, making it suitable for severe seasonal conditions. Two clear aprons provide unobstructed access to electrical panels during fueling or load management. Manufactured in the USA, this Extreme Edition unit carries a 3-year limited warranty.

This cover is engineered for larger open-frame portable generators ranging from 10,000 watts to 22,000 watts, with a general frame perimeter of approximately 105 inches to 128 inches. It includes four frame adapters compatible with square or round tubular frames, as well as panel or muffler heat shield blocking configurations for direct clamp mounts. The adapters also allow perimeter extension when needed. Available in Tan with Black Trim (GTXPFUAETN) or Grey with Black Trim (GTXPFUAEGR). The cover is appropriate for residential standby scenarios, job sites, and emergency response situations where continuous generator operation during weather events is required.

Key Features

• Independently lab tested and rated for winds up to 70 MPH forecast conditions
• Rated for hurricane-force precipitation at 12 inches per hour and snow loads up to 18 inches (55 pounds)
• NFPA 701 flame-retardant rating on canopy and all component pieces
• UV-treated, waterproof dual-coated rip-stop vinyl-coated polyester with welded seams
• Temperature rated from -45 degrees F to 167 degrees F for year-round use
• Two clear aprons for panel access and refueling without removing the cover
• Includes four frame adapters for square, round, and extended-perimeter mounting configurations

Compatibility

Designed for larger open-frame portable generators with a wattage range of 10,000 watts to 22,000 watts and a general frame perimeter of approximately 105 inches to 128 inches. Four included frame adapters accommodate square or round tubular frames and various direct clamp mount configurations.

Installation Notes

Installation is a three-step process: clamp the frame adapters to the generator frame, assemble the frame structure, and apply the canopy cover. Power down any connected loads and review the generator manufacturer guidelines before securing mounting hardware to the frame. Outdoor-rated elastic straps and hook-and-loop closures should be fully secured before operating the generator under the canopy. Always position the generator on a stable, level surface outdoors in accordance with local codes and generator manufacturer distance-from-structure requirements.

Technical Specifications

• Compatible Generator Size: 10,000 watts to 22,000 watts open-frame portable
• Compatible Frame Perimeter: 105 inches to 128 inches
• Wind Rating: Up to 70 MPH forecast winds
• Precipitation Rating: 12 inches per hour (hurricane force)
• Snow Load Rating: 18 inches (55 pounds)
• Temperature Rating: -45 degrees F to 167 degrees F
• Flame Rating: NFPA 701 flame retardant
• Canopy Material: Waterproof dual-coated rip-stop vinyl-coated polyester, UV treated, welded seams
• Closure Type: Outdoor-rated elastic straps and hook-and-loop
• Included Accessories: 2 clear aprons, 4 frame adapters
• Country of Origin: USA
• Warranty: 3-year limited

Standard Information

• Brand: GENTENT
• Manufacturer Part Number: GTXPFUAE
