Gentec 198CD-60 HI-FLOWCO2 W/HEATER- CGA320

Product Description

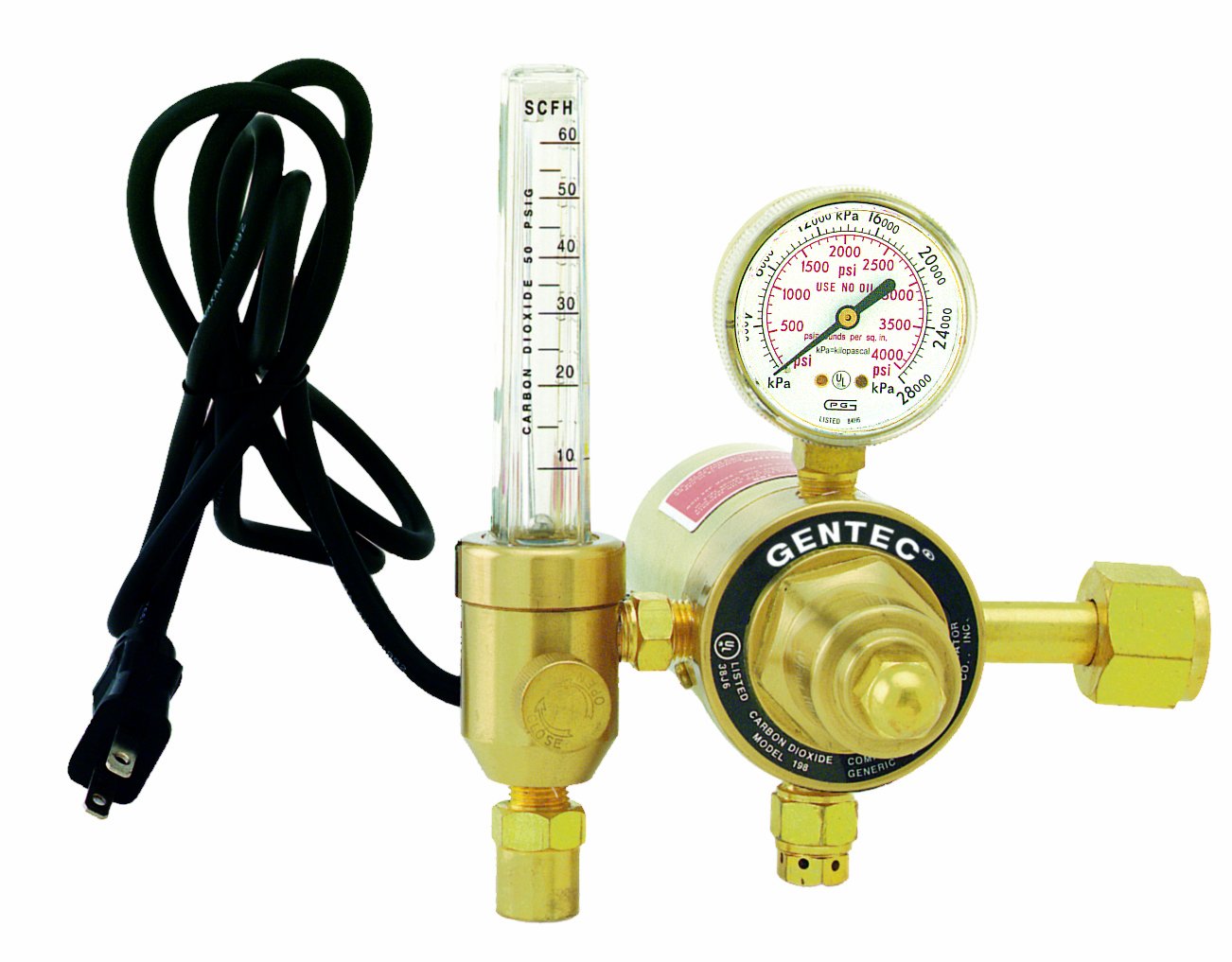

Gentec 198CD-60 is an electrically heated flowmeter regulator designed for carbon dioxide applications. This regulator supports high gas flow rates, reaching up to sixty standard cubic feet per hour without the risk of freezing. The built-in electric heater is thermostatically controlled, ensuring the CO2 remains warm during operation. It operates on standard one hundred ten volts and one hundred ninety watts. The flowmeter is back pressure compensated, which helps maintain accurate readings even when there are restrictions in the line.

• Gas Service: Carbon Dioxide
• Outlet Pressure: 50 PSI
• Inlet Connection: CGA320

Product Highlights

This flowmeter regulator is ideal for various industrial applications, providing reliable performance under demanding conditions.

Product Information

Standard Information

• Manufacturer: Gentec
• Model: 198CD-60

Technical Specifications

• Weight: 6.99 lbs
• Connection Type: 5/8 - 18RH(F)
• Heater Power: 190W
• Voltage: 110VAC
• Body Material: Forged Brass
• Filter Type: Sintered Bronze Inlet Filter
• Duty Cycle: Continuous
• Warning: Use only with non-siphoned standard CO2 cylinders
