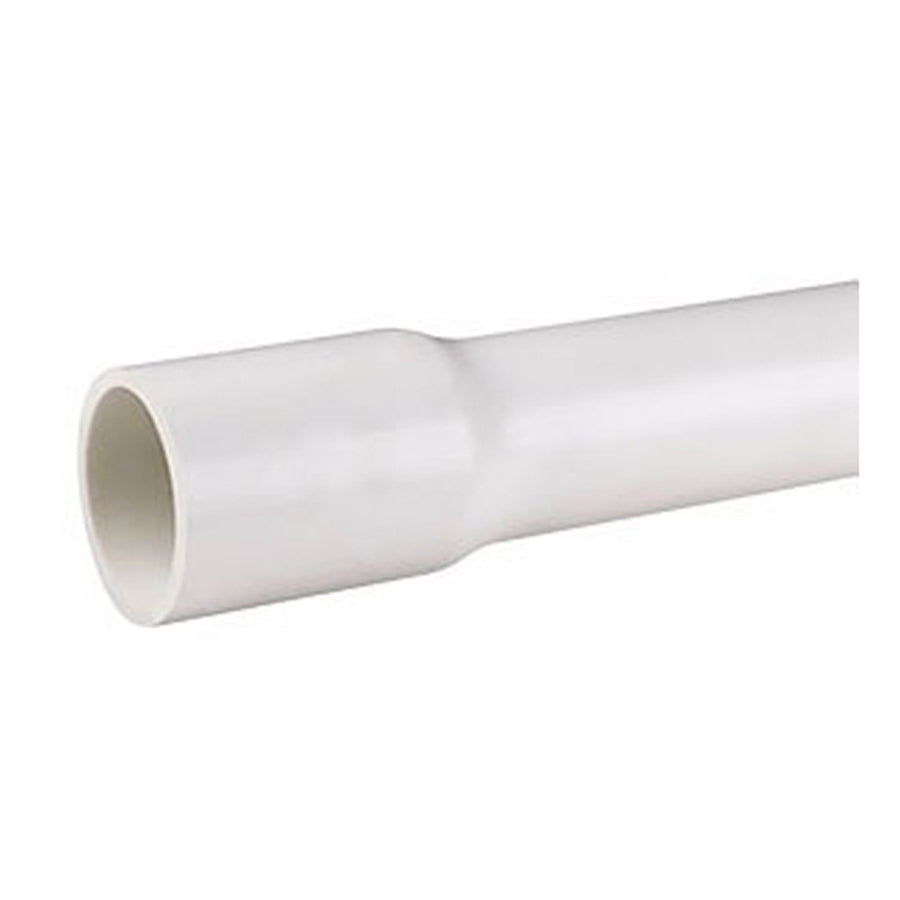

Genova Products 310107 Pvc Pressure Pipe Sch 40 1 in X 10 Ft

Product Description

The GENOVA PRODUCTS 310107 is a Schedule 40 PVC pressure pipe rated at 450 PSI at 73 degrees F, manufactured to ASTM D1785 and listed to NSF standards. It measures 1 inch nominal diameter (Iron Pipe Size) in a 10-foot length with plain ends for solvent-weld connections. This pipe is designed for the distribution of pressurized fluids that are chemically compatible with PVC piping materials. Licensed plumbers, irrigation contractors, and pool service professionals install this pipe in pressurized fluid systems across residential and light commercial applications.

This pipe is suited for a range of pressurized-fluid applications including irrigation systems, underground residential sprinkler systems, water service lines, deionized water lines, and swimming pool installations. The plain-end design pairs with solvent-weld PVC fittings for a reliable, leak-resistant joint. As a Schedule 40 product, wall thickness follows standard IPS sizing, meaning the 1-inch nominal diameter is dimensionally interchangeable with iron pipe of the same nominal size. Note that pressure ratings for Schedule pipe decrease as nominal diameter increases.

Key Features

• Schedule 40 PVC construction rated at 450 PSI at 73 degrees F per ASTM D1785
• 1-inch nominal IPS diameter — dimensionally compatible with standard iron pipe size fittings
• Plain ends designed for solvent-weld joint assembly
• NSF-listed for applicable potable and non-potable water applications
• 10-foot length suitable for residential and light commercial installs
• Compatible with pressurized fluids that are chemically compatible with PVC

Compatibility

Designed for use with Schedule 40 PVC solvent-weld fittings and valves in irrigation, water service, deionized water, and swimming pool piping systems where the fluid is chemically compatible with PVC materials.

Installation Notes

Installation should be performed by a licensed plumber or irrigation contractor in accordance with applicable local codes, IPC requirements, and manufacturer solvent-weld procedures. Shut off and depressurize the system completely before cutting into any existing line. Use the correct PVC primer and solvent cement rated for Schedule 40 pressure pipe, and allow full cure time before pressurizing the system. Do not use this pipe for compressed air, gas service, or fluids that are not chemically compatible with PVC.

Technical Specifications

• Nominal Pipe Size: 1 inch
• Length: 10 feet
• Schedule: 40
• Pressure Rating: 450 PSI at 73 degrees F
• End Connection: Plain End
• Material: PVC
• Material Specification: ASTM D1785
• Applicable Standard: NSF
• Weight: 33 pounds

Standard Information

• Brand: GENOVA PRODUCTS
• Manufacturer Part Number: 310107
