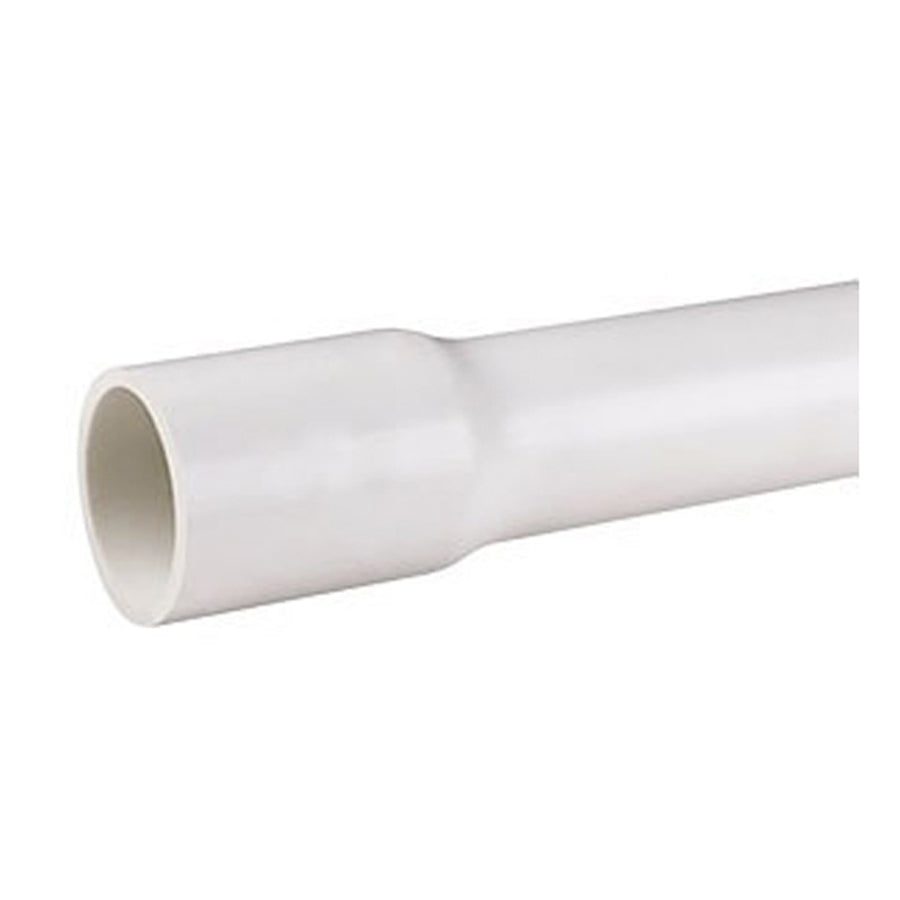

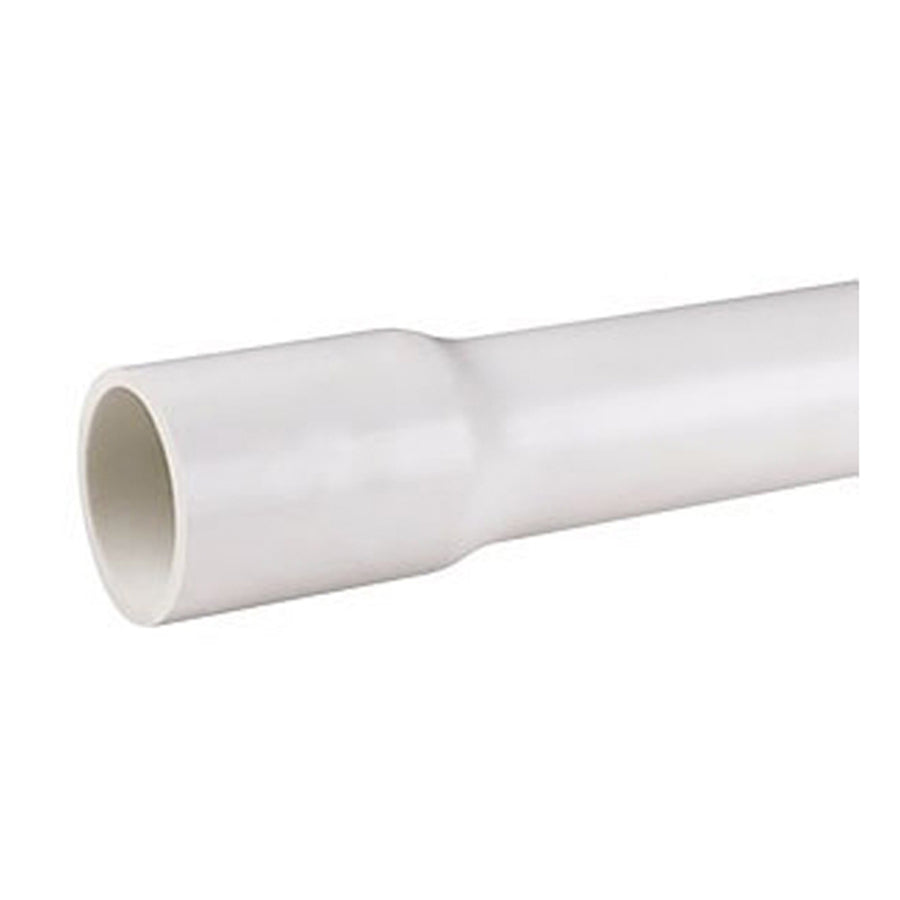

Genova Products 310057 Pvc Pressure Pipe Sch 40 1/2in X 10ft

Product Description

The GENOVA PRODUCTS 310057 is a Schedule 40 PVC pressure pipe rated at 600 PSI at 73 degrees F, supplied in a plain-end, 1/2-inch nominal (IPS) by 10-foot length. Built to ASTM D1785 and NSF standards, this pipe uses solvent-weld joints and is manufactured to Iron Pipe Size dimensions, making it fully compatible with standard IPS fittings. The PVC construction resists corrosion and chemical attack from a wide range of fluids. Plumbers, irrigation contractors, and pool service technicians install this pipe in pressurized fluid distribution systems where the conveyed fluid is chemically compatible with PVC. Wall thickness follows Schedule 40 proportions, providing a consistent pressure rating for this diameter.

This pipe is suited for residential and light commercial applications including underground irrigation and sprinkler systems, potable water service lines, deionized water lines, and swimming pool plumbing installations. The plain-end configuration accepts standard Schedule 40 PVC solvent-weld fittings. Because the pressure rating for Schedule pipe decreases as nominal diameter increases, the 600 PSI rating applies specifically to this 1/2-inch size at 73 degrees F. Verify fluid temperature and chemistry before installation in non-standard service conditions.

Key Features

• 600 PSI pressure rating at 73 degrees F for this 1/2-inch nominal size
• Schedule 40 wall thickness per ASTM D1785
• Plain end accepts standard IPS solvent-weld fittings
• NSF listed — suitable for potable water service and irrigation
• PVC construction resists corrosion and a broad range of fluid chemistries
• 10-foot length reduces field cuts on typical residential runs

Compatibility

Designed for use with standard Schedule 40 PVC IPS solvent-weld fittings and couplings in irrigation systems, underground residential sprinkler systems, water service pipe runs, deionized water lines, and swimming pool installations where conveyed fluids are chemically compatible with PVC.

Installation Notes

Installation is typically performed by licensed plumbers or irrigation contractors in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line completely before cutting or joining pipe. Use PVC primer and solvent cement rated for Schedule 40 pressure applications, and allow full cure time before pressurizing the system. This pipe is rated for pressurized fluid distribution only — do not use for compressed air, gas service, or structural applications.

Technical Specifications

• Nominal Pipe Size: 1/2 inch
• Length: 10 feet
• Schedule: 40
• Pressure Rating: 600 PSI at 73 degrees F
• End Connection: Plain End
• Material: PVC
• Material Specification: ASTM D1785
• Applicable Standard: NSF
• Weight: 17 pounds

Standard Information

• Brand: GENOVA PRODUCTS
• Manufacturer Part Number: 310057
