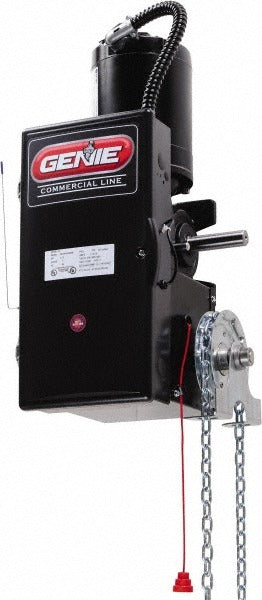

Genie 112632 Hoist Operator Head 1 Hp Heavy Duty with Brake

Product Description

The GENIE 112632 is a 1 HP, single-phase hoist operator head designed for heavy-duty rolling door applications. Built with an integrated brake system, it provides controlled stopping and holding power at the end of each cycle, reducing wear on the door and drive components. The unit ships in a powder-coated black finish, indicating commercial-grade surface treatment suited for exposed mechanical rooms and dock environments. Measuring 34.5 inches tall, 18.5 inches wide, and 15.25 inches in length, this is a substantial piece of equipment weighing 123 pounds and requiring appropriate mounting infrastructure. Licensed technicians and commercial door installers are the primary trade for this type of equipment.

The GENIE 112632 is rated for use with rolling doors up to 24 feet high. This makes it appropriate for commercial and industrial installations such as loading docks, warehouse bays, self-storage facilities, and similar overhead rolling door applications. The integrated brake is essential in these environments where a door of significant size and weight must stop and hold position reliably without drift or free-fall risk. This operator head is a direct-drive style unit intended for permanent overhead mounting above the door opening.

Key Features

• 1 HP single-phase motor for heavy-duty rolling door operation
• Integrated brake for controlled stopping and position holding
• Rated for rolling doors up to 24 feet in height
• Powder-coated black finish for durability in commercial environments
• Compact footprint at 34.5 x 18.5 x 15.25 inches given its power class

Compatibility

Designed for use with rolling doors up to a maximum of 24 feet in height. No additional specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation should be performed by a licensed commercial door technician or qualified electrician familiar with single-phase motor wiring and local electrical codes including NEC requirements. Disconnect and lock out all power to the circuit before mounting or wiring the operator head. At 123 pounds, this unit requires two-person handling and appropriate structural support at the mounting location. Do not attempt to modify the integrated brake assembly or override brake function during installation or testing.
