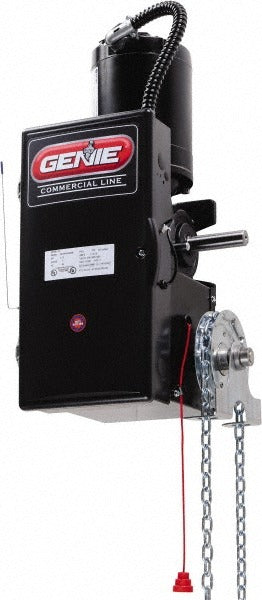

Genie 112632 Hoist Operator Head 1 Hp 3 Phase with Brake

Product Description

The GENIE 112632 is a heavy-duty, three-phase hoist operator head designed for commercial and industrial sectional door applications. Rated at 1 HP, it delivers the torque needed to reliably cycle large, heavy sectional doors in high-demand environments. The unit ships with an integrated brake, providing controlled stopping and holding power during operation. At 109 pounds and finished in powder-coated black, the head is built for long-term performance in demanding service bays, warehouses, and similar facilities. Installation is handled by qualified door technicians or commercial contractors familiar with three-phase electrical systems and commercial overhead door hardware.

This operator head is rated for use with sectional doors up to 24 feet in height. It is suited for commercial sectional door installations where a three-phase power supply is available and high-cycle or heavy door weight requirements exceed the capability of standard residential or light-commercial operators. Typical applications include loading docks, vehicle maintenance facilities, and industrial service entrances.

Key Features

• 1 HP motor output for heavy sectional door operation
• Three-phase power configuration for commercial and industrial installations
• Integrated brake for controlled stopping and door holding
• Rated for sectional doors up to 24 feet in height
• Powder-coated black finish for corrosion and wear resistance
• Compact footprint: 34.5 inches H x 18.5 inches W x 15.25 inches L

Compatibility

Designed for use with sectional doors up to 24 feet in height in commercial and industrial three-phase overhead door systems.

Installation Notes

Installation should be performed by a licensed commercial door technician or qualified electrician familiar with three-phase wiring and local electrical codes. Disconnect and lock out all power to the operator circuit before mounting or wiring the unit. Verify that the available supply voltage and phase configuration match the operator requirements before energizing. Follow all applicable NEC and local code requirements for commercial motor installations.
