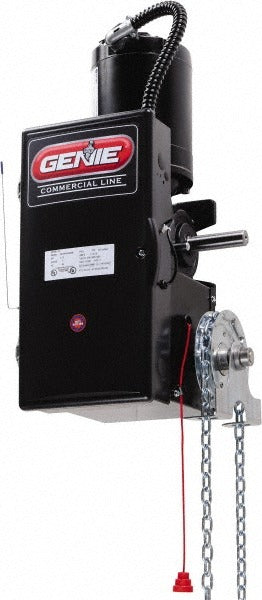

Genie 112632 Hoist Operator Head 1/2 Hp 3 Phase with Brake

Product Description

The GENIE 112632 is a heavy-duty, three-phase hoist operator head designed for commercial and industrial rolling door applications. Rated at 1/2 horsepower, this unit provides the torque and drive capacity needed to cycle large rolling doors reliably under frequent-use conditions. A built-in brake is included, giving the operator positive stopping control and reducing door drift after each cycle. The powder-coated black finish provides corrosion resistance in demanding installation environments. At 102 pounds, this is a substantial unit intended for permanent overhead mounting by qualified door system technicians.

This operator head is rated for rolling doors up to 24 feet in height, making it suitable for commercial warehouses, loading docks, storage facilities, and industrial bays. The three-phase motor configuration is standard in commercial electrical service environments. Installation is handled by commercial door service technicians or licensed electricians responsible for the power supply connection. The unit ships as a single assembly at a package quantity of one.

Key Features

• 1/2 HP three-phase motor suited for heavy-duty commercial rolling door cycles
• Integrated brake for positive door stopping and drift prevention
• Rated for rolling doors up to 24 feet in height
• Powder-coated black finish for durability in commercial environments
• Substantial 102-pound construction for permanent overhead mounting

Compatibility

Designed for use with rolling doors up to a maximum of 24 feet in height. Consult the GENIE 112632 installation documentation to confirm compatibility with specific door manufacturers, slat profiles, and shaft configurations before ordering.

Installation Notes

Installation should be performed by a qualified commercial door technician or licensed electrician familiar with three-phase power wiring and NEC requirements. Disconnect and lock out all electrical power to the operator circuit before beginning any mounting or wiring work. The unit weighs 102 pounds and requires appropriate rigging, lifting equipment, and overhead structural support rated for the load. Verify that the building electrical service provides the correct three-phase voltage and amperage before making final connections.
