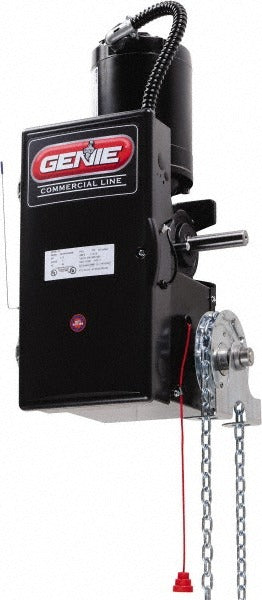

Genie 112632 3/4 Hp 3-phase Garage Door Hoist Operator Head

Product Description

The GENIE 112632 is a heavy-duty, three-phase hoist operator head designed for commercial and industrial garage door applications. Rated at 3/4 horsepower, this unit provides the torque and durability required for high-cycle sectional door installations where single-phase power is not available. An integrated brake ensures controlled stopping and holds the door securely in position when the motor is not running. The powder-coated black finish resists corrosion in demanding environments. At 106 pounds, this is a substantial piece of equipment intended for professional installation by qualified door system technicians.

This operator head is rated for use with sectional doors up to 24 feet in height, making it suitable for warehouses, loading docks, fleet maintenance facilities, and other commercial or light-industrial structures. It is a hoist-style operator, meaning the drive mechanism lifts and lowers the door via a hoist assembly rather than a standard trolley-and-rail configuration. Installations of this type typically require three-phase electrical service, appropriate disconnect hardware, and mounting structure capable of supporting the unit's weight and operational load.

Key Features

• 3/4 HP motor rated for three-phase electrical service
• Integrated brake for controlled stopping and door hold
• Supports sectional doors up to 24 feet in height
• Powder-coated black finish for corrosion resistance in commercial environments
• Heavy-duty hoist operator head construction for high-cycle applications

Compatibility

Designed for use with sectional doors up to 24 feet in height in commercial and industrial hoist operator installations requiring three-phase power.

Installation Notes

Installation should be performed by a licensed garage door technician or qualified electrician familiar with three-phase motor wiring and commercial door system requirements. Disconnect and lock out all electrical power before servicing or mounting the operator head. The mounting structure must be engineered to support the unit weight and dynamic loads during operation. Local electrical codes, including applicable NEC provisions for motor circuits and disconnects, should be followed throughout the installation.
