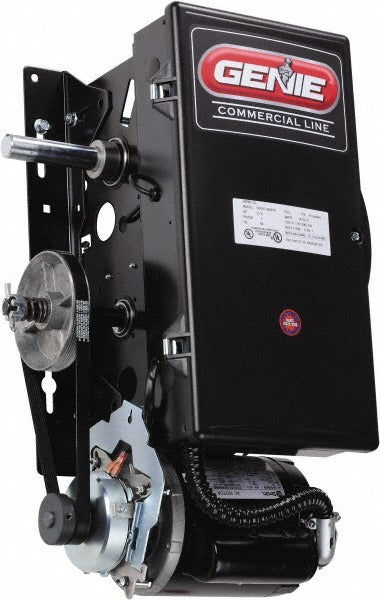

Genie 112631 Jackshaft Garage Door Operator 1/2 Hp

Product Description

The GENIE 112631 is a single-phase, 1/2 HP jackshaft operator head designed for commercial and industrial rolling door applications. It mounts at the side of the door opening and drives the torsion shaft directly, making it the right choice where ceiling space is limited or where a traditional trolley-style operator is not practical. The unit ships with an integrated brake for controlled stopping and holding power. The powder-coated black steel housing is built for standard-duty cycle use. Licensed door system technicians and commercial door installers are the primary trade installing this operator.

This operator head is rated for use with rolling doors up to 24 feet high, covering a wide range of commercial overhead door installations including warehouses, loading docks, service bays, and light industrial facilities. It is a single-phase unit, making it compatible with standard commercial electrical service without requiring three-phase power. The jackshaft configuration keeps the operator clear of the ceiling, maximizing clearance in low-headroom applications.

Key Features

• 1/2 HP single-phase motor for standard-duty rolling door operation
• Jackshaft mounting drives the torsion shaft directly, ideal for low-headroom installations
• Integrated brake included for controlled door stopping and holding
• Powder-coated black finish for durability in commercial environments
• Rated for rolling doors up to 24 feet high

Compatibility

Designed for use with rolling doors with a maximum height of 24 feet. Suitable as an OEM-style jackshaft operator head for standard-duty commercial rolling door systems requiring single-phase power.

Installation Notes

Installation should be performed by a licensed commercial door systems technician in accordance with applicable local codes and the manufacturer instructions. Disconnect and lock out all electrical power to the operator circuit before beginning any wiring or mechanical work. The jackshaft operator must be properly aligned with the torsion shaft before securing fasteners. Verify that door spring tension and hardware are in serviceable condition before commissioning the operator.
