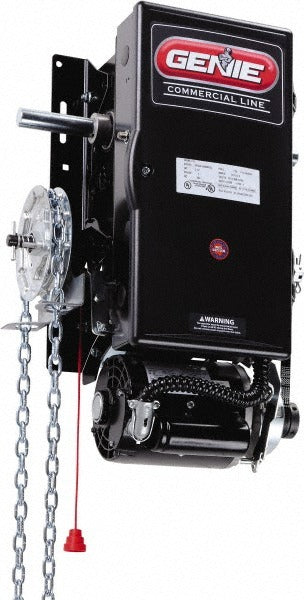

Genie 112631 Hoist Operator Head 1/2 Hp with Brake

Product Description

The GENIE 112631 is a standard-duty hoist operator head designed for rolling door applications in commercial and industrial settings. Rated at 1/2 horsepower on a single-phase electrical supply, this unit mounts at the head of the door opening and drives the rolling door through its full travel cycle. A built-in brake holds the door in position when the motor stops, preventing uncontrolled movement under load. The powder-coated black steel housing provides corrosion resistance in typical shop and warehouse environments. Licensed commercial door technicians and electricians are the primary installers for this class of equipment.

This operator head is rated for use with rolling doors up to 24 feet high, making it suitable for standard commercial overhead door openings found in warehouses, loading docks, garages, and light industrial facilities. The single-phase motor configuration allows installation where three-phase power is not available, which is common in smaller commercial and light industrial buildings. The integrated brake is a key safety feature for high-cycle or high-door applications.

Key Features

• 1/2 HP single-phase motor for standard-duty rolling door operation
• Built-in brake prevents door drift and holds position when power is removed
• Rated for rolling doors up to 24 feet in height
• Powder-coated black finish for corrosion and wear resistance
• Compact head unit measuring 29.75 inches tall, 19 inches wide, and 14 inches in length

Compatibility

Designed for use with rolling doors up to a maximum of 24 feet in height. Consult door manufacturer specifications and local code requirements to confirm suitability for the specific door assembly and opening conditions.

Installation Notes

Installation should be performed by a qualified commercial door technician in conjunction with a licensed electrician for the electrical connection. Disconnect and lock out all power to the operator circuit before beginning any wiring or mounting work. The operator must be secured to a structurally sound header assembly capable of supporting the combined weight of the unit and the door load. Verify compliance with applicable local mechanical and electrical codes prior to energizing the unit.
