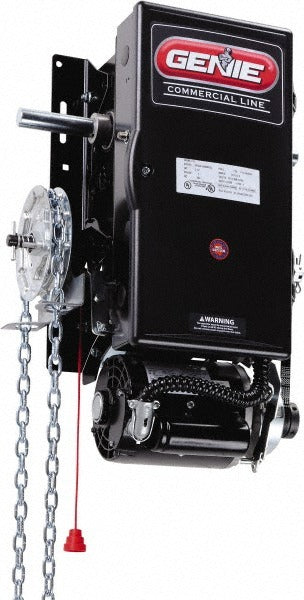

Genie 112631 Hoist Operator Head 1/2 Hp 3 Phase with Brake

Product Description

The GENIE 112631 is a 1/2 HP, three-phase hoist operator head designed for standard-duty commercial and industrial garage door applications. It includes an integrated brake for controlled stopping and holding of the door in position. The unit features a powder-coated black finish for corrosion resistance and durability in warehouse, loading dock, and light industrial environments. Licensed commercial door technicians and overhead door contractors are the primary installers of this type of operator. Key physical specs include a 29.75-inch height, 19-inch width, and 14-inch length, with a shipping weight of 93 pounds.

This operator head is rated for use with rolling doors up to 24 feet high, making it suited for standard commercial overhead rolling door installations. Typical applications include warehouse bay doors, loading dock entrances, and commercial facility access points where three-phase power is available. The three-phase motor configuration is common in commercial buildings with three-phase electrical service, offering smoother operation and lower current draw compared to single-phase alternatives under comparable load conditions.

Key Features

• 1/2 HP three-phase motor for standard-duty commercial rolling door operation
• Integrated brake for controlled door stopping and position holding
• Rated for rolling doors up to 24 feet high
• Powder-coated black finish for durability in industrial environments
• Compact footprint: 29.75 inches tall, 19 inches wide, 14 inches long

Compatibility

Designed for use with rolling doors up to 24 feet high in standard-duty commercial overhead door applications requiring a three-phase hoist operator head.

Installation Notes

Installation should be performed by a licensed overhead door contractor or qualified commercial electrician familiar with three-phase wiring and local codes. Disconnect and lock out all power to the door circuit before mounting or wiring the operator head. Verify that the building electrical service matches the motor phase and voltage requirements prior to connection. Confirm door hardware, shaft, and drive components are compatible with the operator before final installation.
