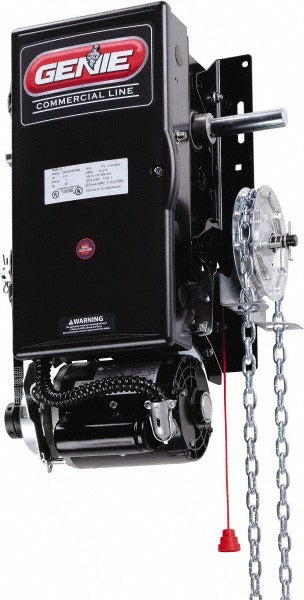

Genie 112631 Hoist Operator Head 1/2 Hp 3 Phase with Brake

Product Description

The GENIE 112631 is a 1/2 HP, 3-phase standard-duty hoist operator head designed for motorized rolling door applications. Built for commercial and industrial garage door installations, this unit includes an integrated brake for controlled stopping and load holding. The powder-coated black finish provides corrosion resistance in demanding environments. At 93 pounds, this is a robust assembly intended for professional installation on rolling doors up to 24 feet high. Licensed door system technicians and commercial door contractors are the typical installers for this class of operator.

The GENIE 112631 is suited for standard-duty commercial rolling door systems. It is rated for use with rolling doors with a maximum height of 24 feet, making it appropriate for loading dock doors, warehouse access doors, and similar commercial-grade applications that require 3-phase motor power. The integrated brake is a critical feature for doors operating on inclines or in applications where controlled stopping is required.

Key Features

• 1/2 HP 3-phase motor for commercial rolling door operation
• Integrated brake for controlled stopping and load holding
• Rated for rolling doors up to 24 feet high
• Powder-coated black finish for durability in commercial environments
• Standard-duty classification suitable for moderate-cycle commercial applications

Compatibility

Designed for use with rolling doors with a maximum height of 24 feet. Consult system documentation to confirm compatibility with the specific door assembly and drive configuration before installation.

Installation Notes

Installation should be performed by a licensed commercial door technician or qualified electrician familiar with 3-phase power systems. Disconnect and lock out all electrical power to the circuit before beginning installation or servicing. Three-phase wiring must comply with applicable NEC requirements and local electrical codes. Verify that the structural mounting surface is rated to support the operator weight and door load before securing the unit.
