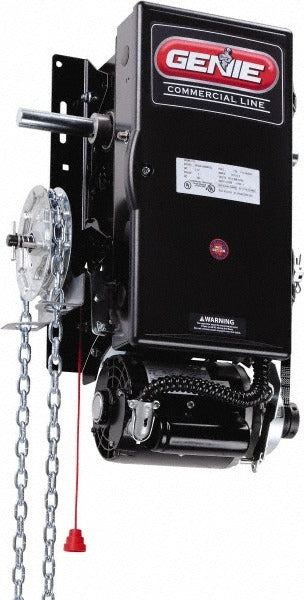

Genie 112631 Hoist Operator Head 1/2 Hp 3 Phase Brake

Product Description

The GENIE 112631 is a standard-duty hoist operator head designed for commercial and industrial garage door applications. Rated at 1/2 horsepower and powered by a 3-phase motor, this unit provides the sustained torque and thermal headroom required for high-cycle door operation in demanding environments. The integrated brake allows for controlled door stopping and holds the door in position when the drive is not engaged. The black powder-coated steel housing resists corrosion and wear. This operator head is installed by commercial door technicians and industrial electricians working in facilities requiring reliable sectional door automation.

This operator head is rated for use with sectional doors up to 24 feet high. It is suited for warehouses, loading docks, manufacturing facilities, and other commercial settings where 3-phase power is available and standard-duty cycle performance is acceptable. The 3-phase input makes this unit appropriate for facilities with existing 3-phase electrical infrastructure, eliminating the need for phase converters in qualifying installations.

Key Features

• 1/2 HP 3-phase motor provides consistent torque for standard-duty sectional door operation
• Integrated brake enables controlled stopping and door position holding
• Rated for sectional doors up to 24 feet high
• Black powder-coated finish for corrosion resistance in commercial environments
• Compact footprint: 29.75 inches tall, 19 inches wide, 14 inches in length

Compatibility

Designed for use with sectional doors up to a maximum height of 24 feet. Compatible with standard commercial hoist operator mounting configurations. Verify existing headroom clearance, trolley track gauge, and electrical service specifications before installation.

Installation Notes

Installation should be performed by a licensed commercial door technician in coordination with a qualified electrician for 3-phase wiring termination. Disconnect and lockout all power to the operator and door system before beginning installation or service. Follow applicable NEC requirements for motor branch circuit sizing and overcurrent protection when wiring the 3-phase supply. At 92 pounds, the unit requires appropriate lifting equipment and a two-person crew for safe overhead mounting.
