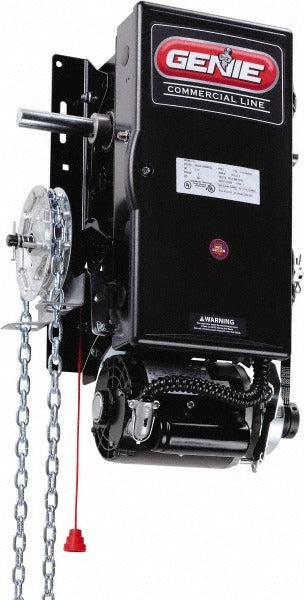

Genie 112631 Hoist Operator Head 0.5 Hp Sectional Door

Product Description

The GENIE 112631 is a standard-duty hoist operator head designed for commercial and industrial garage door applications. Rated at 0.5 horsepower and built for single-phase power, this unit provides the drive and braking control needed to operate heavy sectional doors. The integrated brake mechanism ensures the door holds position when the operator is not actively running, reducing drift and improving safety. The powder-coated black finish provides corrosion resistance in typical garage and loading dock environments. Installation is handled by qualified door system technicians or mechanical contractors familiar with hoist-style operators.

This operator head is designed for use with sectional doors up to 24 feet high. It is suited for commercial overhead door installations where a hoist-style drive is specified — such as high-cycle warehouses, loading docks, or industrial bays. The unit ships as a standalone operator head and is intended for integration into a complete door system with appropriate hardware, wiring, and controls selected for the application.

Key Features

• 0.5 HP single-phase motor for reliable door lifting force
• Integrated brake holds door position when operator is at rest
• Powder-coated black finish for corrosion resistance
• Supports sectional doors up to 24 feet in height
• Compact head unit dimensions suitable for standard header space

Compatibility

Designed for use with sectional doors up to 24 feet high. Confirm door weight, cycle requirements, and mounting configuration before specifying this operator head for a given installation.

Installation Notes

Installation should be performed by a licensed door system technician or qualified mechanical contractor. Disconnect and lock out all power to the door system before beginning work on the operator head or associated wiring. Verify that the structural header and mounting surface can support the combined weight of the operator and door hardware. Follow applicable local codes and the manufacturer's wiring and mounting instructions for proper setup.
