GENESIS CABLE-HONEYWELL 47620312 Thermostat Cable

Product Description

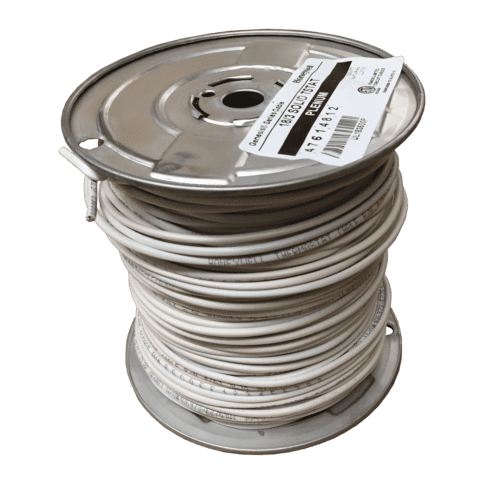

The GENESIS CABLE-HONEYWELL 47620312 is a thermostat cable designed for signal transmission between thermostats and heating or cooling systems. This cable has four solid conductors and is intended for indoor use. It features a plenum-rated jacket, providing safety in air-handling spaces. The cable is made with bare copper conductors and comes spooled for easy deployment.

• 18 AWG solid conductors
• Plenum (CL2P) rated jacket
• Rated for 150 Volts and a temperature range of negative twenty to sixty degrees Celsius

Product Highlights

This cable is built for effective signal delivery and complies with safety standards for indoor applications.

Product Information

Standard Information

• Brand: Genesis
• Manufacturer Part Number: 47620312

Technical Specifications

• Product Model: 47620312
• American Wire Gauge: 18 AWG
• Cable Rating: Plenum
• Jacket Type: Plenum
• Number of Conductors: 4
• Shielding: No
• Solid or Stranded: Solid
• Length: 250 feet
• Color: Natural
• Package Type: Reel
• Country of Origin: US
• Indoor/Outdoor: Indoor
• Voltage Rating: 150 Volt
• Conductor Material: Bare Copper
• Jacket Material: 0.015 Inch PVC
• Insulation Material: 0.006 Inch PVC
• Color Code: Red, White, Green, Blue
• Temperature Rating: -20 to 60 Degrees Celsius
• Outer Diameter: 0.157 Inch
• Approval: ETL, CSA 22.2, NFPA 262
• Capacitance: 22.8 Picofarad/Foot
• Impedance: 67 Ohm
• DC Resistance: 6.52 Ohm per 1000 Foot at 20 Degrees Celsius
• RoHS Compliant: True
