Genesis Cable 63601101 cat6 riser solid copper white 1000ft utp 23awg ethernet cable

Product Description

The Genesis Cable 63601101 is a Cat6 Riser solid copper cable designed for enhanced networking. This 1000ft unshielded twisted pair cable features 4 twisted solid 23 AWG copper conductor pairs, delivering voice and data transmission performance. Its riser rating (CMR) and white jacket make it suitable for diverse environments. The cable is also UV-resistant for longevity in sun-exposed installations.

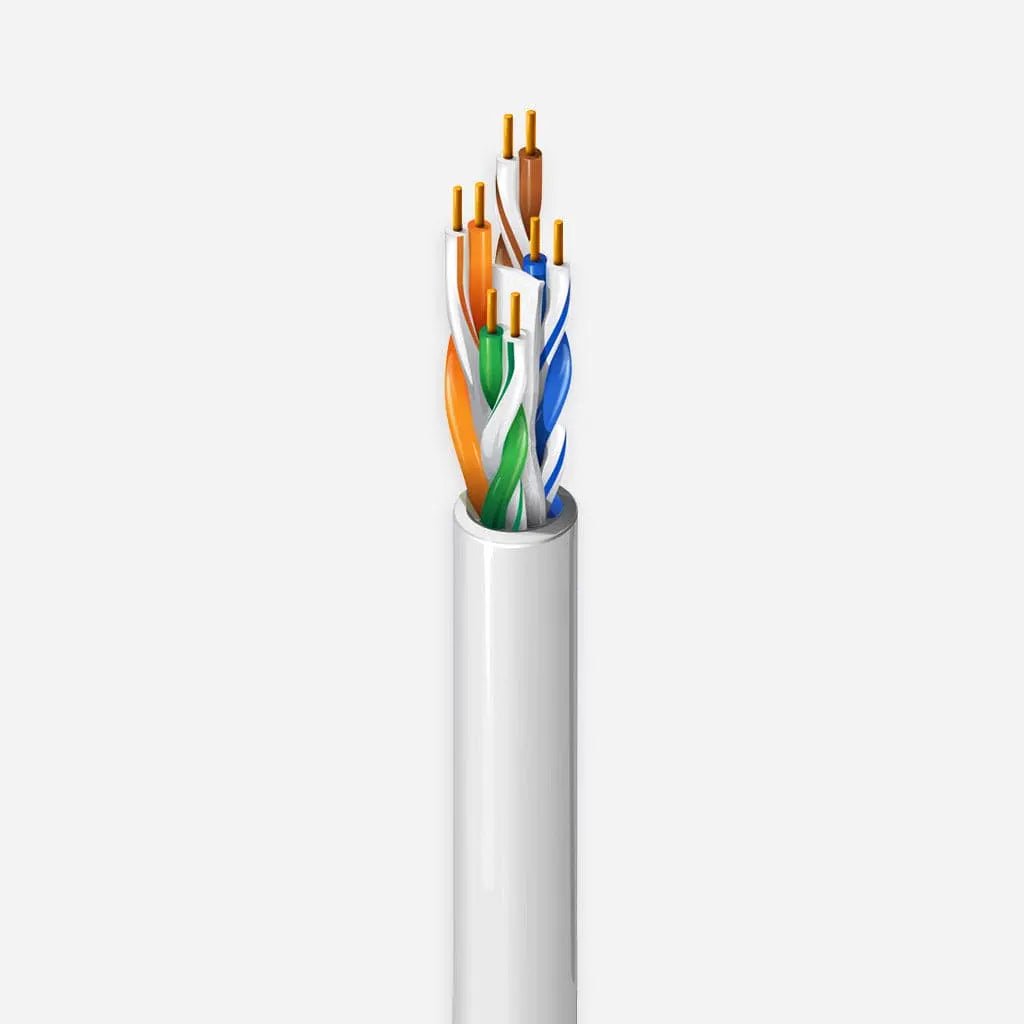

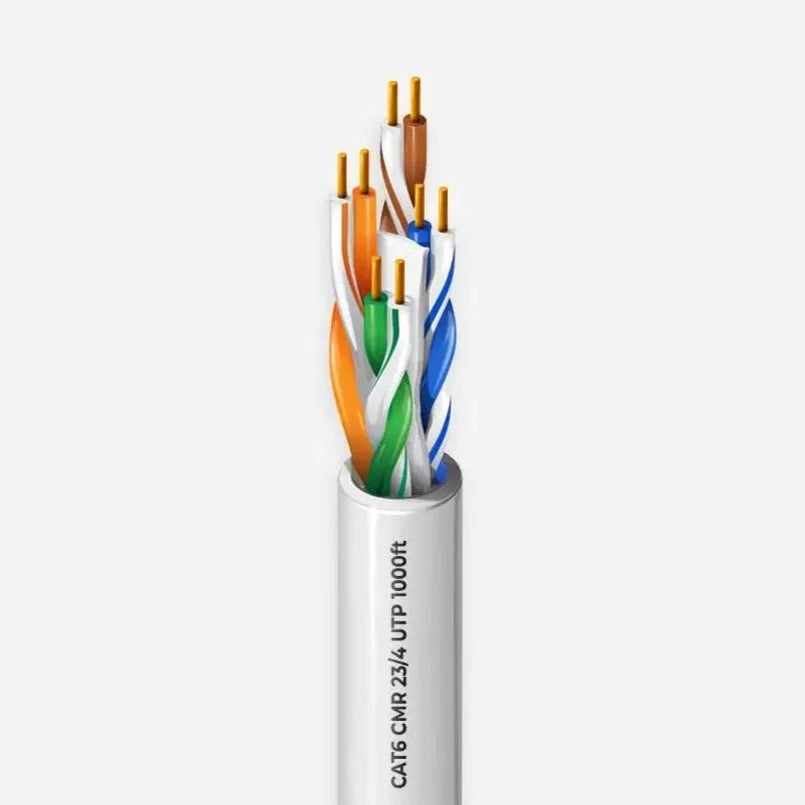

• 4 solid 23 AWG copper conductor pairs
• Category 6 performance
• Riser Rated (CMR)

Product Highlights

This 1000ft Genesis Cable is UV-resistant and fully compatible with network devices, ensuring reliable connections for networking solutions.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 63601101
• Country of Origin: Vietnam

Technical Specifications

• Color: White
• Product Type: Ethernet networking cable
• Brand: Genesis

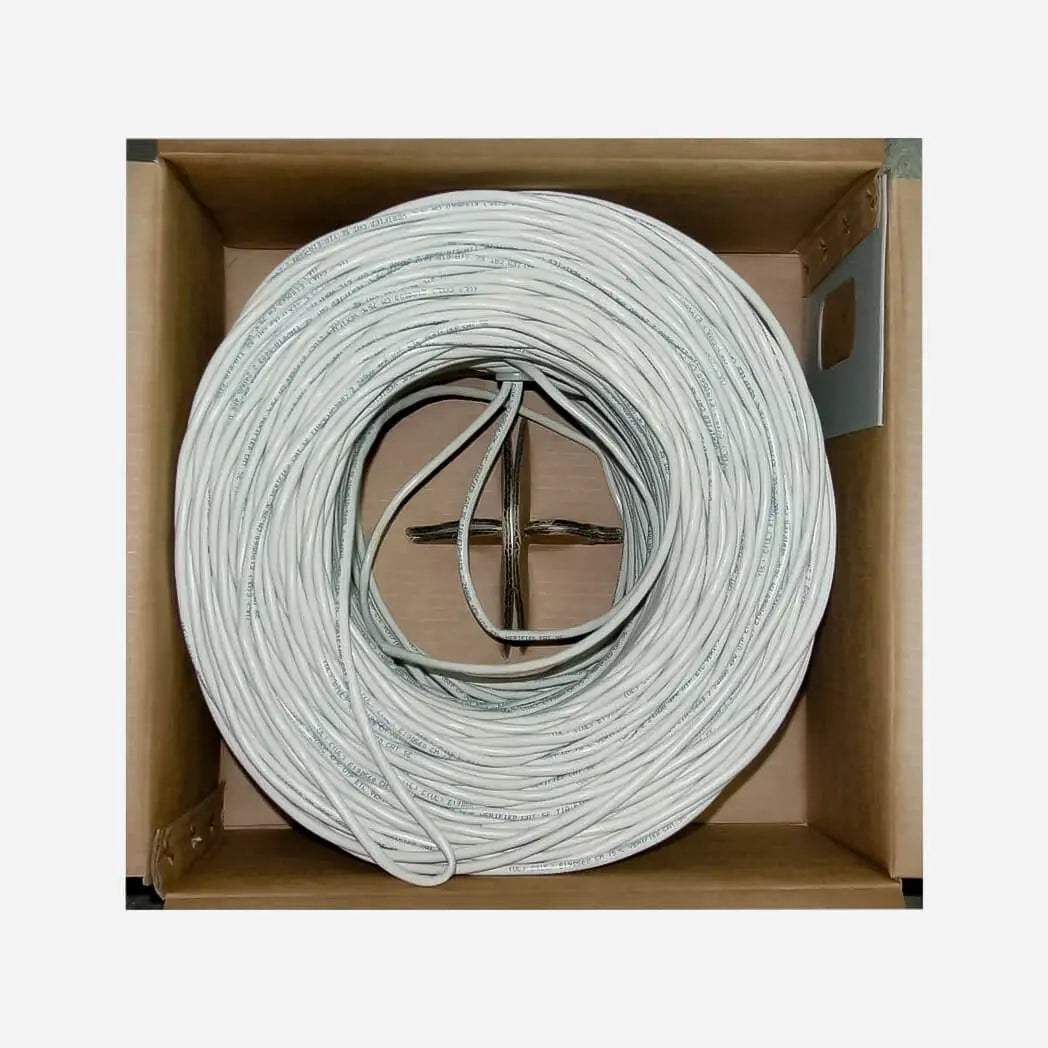

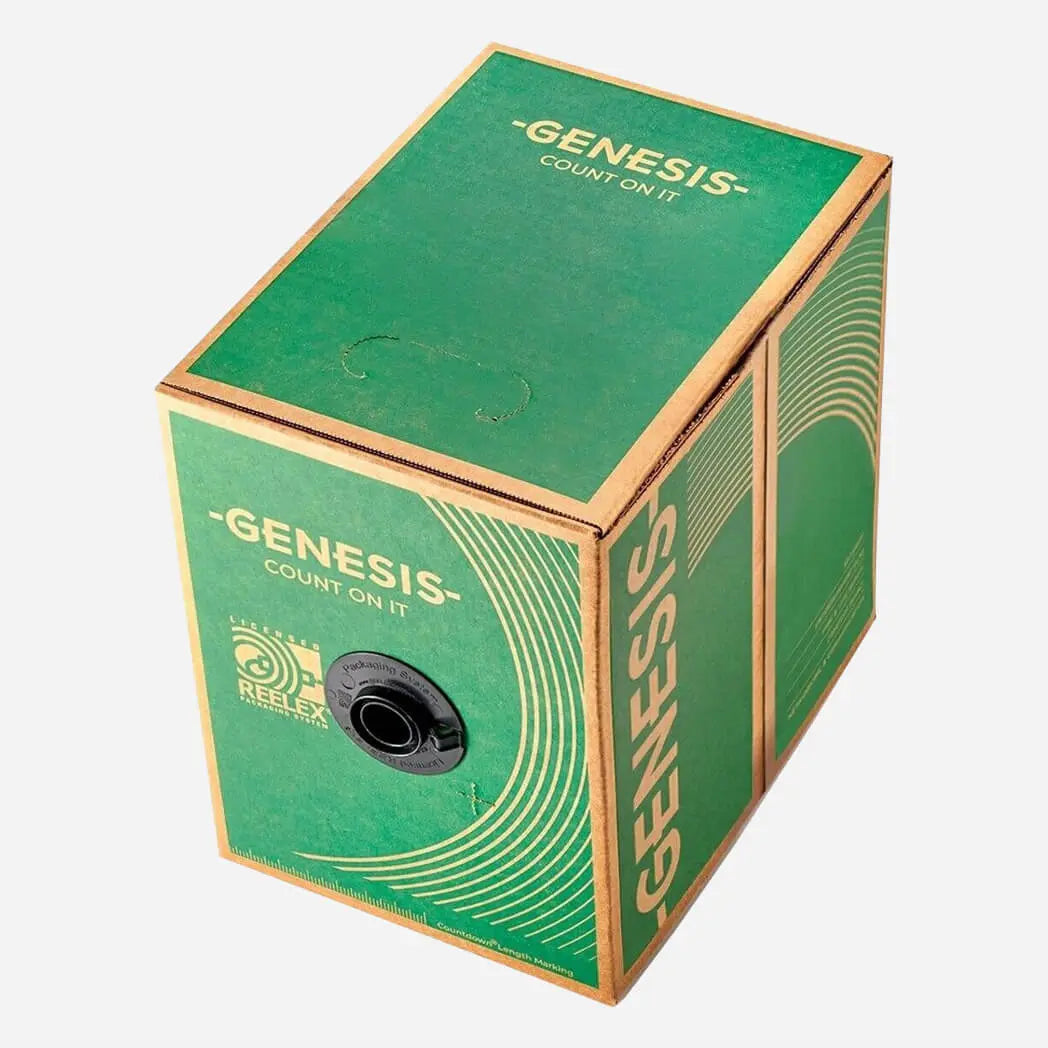

• Package: Reel in a box
• Category: 6
• Spaces: Riser
• Gauge: 23 AWG
• Jacket: PVC
• Insulation Material: PE
• Frequency: 400MHz
• No. of Pairs: 4 Twisted
• Shielding: Unshielded U/UTP
• Conductor: Copper
• Conductor Material: Bare Copper
• Certification Standards: UL Listed, ETL, TIA Compliant
• Construction Conductor Type: 23 AWG Solid Bare Copper Color Code Pair
• Conductor Count: 8 (4 pairs) Blue & White/Blue 1
• Insulation: Polyethylene Orange & White/Orange 2
• Spacer: No Green & Green/White 3
• RipCord: Yes
• Overall Outer Diameter: 0.205"
• Temperature: -20°C to 75°C
• Operating Voltage: 300V max.
• RoHS Compliant: Yes
• Velocity of Propagation: 69% nominal
• DC Resistance: 9.38 Ohms/100m max. @ 20°C
• Resistance Unbalance: 5% max. @ 20°C
• Capacitance: 5.6 nF/100m max. @ 20°C
• Capacitance Unbalance: 330 pF/100m max. @ 20°C
• Propagation Delay: 570 ns/100m max. @ 20°C
• Delay Skew: 45 ns/100m max. @ 20°C
• Cable Type: Category 6
• Cable Length: 1000 ft
• Connector Type on First End: Bare Wire
• Connector Type on Second End: Bare Wire
• Jacket Type: CMR, FT4, Riser
• Device Supported: Network Device
• American Wire Gauge: 23 AWG
• Number of Pairs: 4
• Features: Sunlight Resistant
• Product Material: Bare Copper
• Material Details: Bare Copper - Conductor
• Sheath Color: White
• Type: Network Cable
• MPN: 63601101
• Item Length: 1000 ft
• Wire Gauge: 23
• Country of Origin: United States
