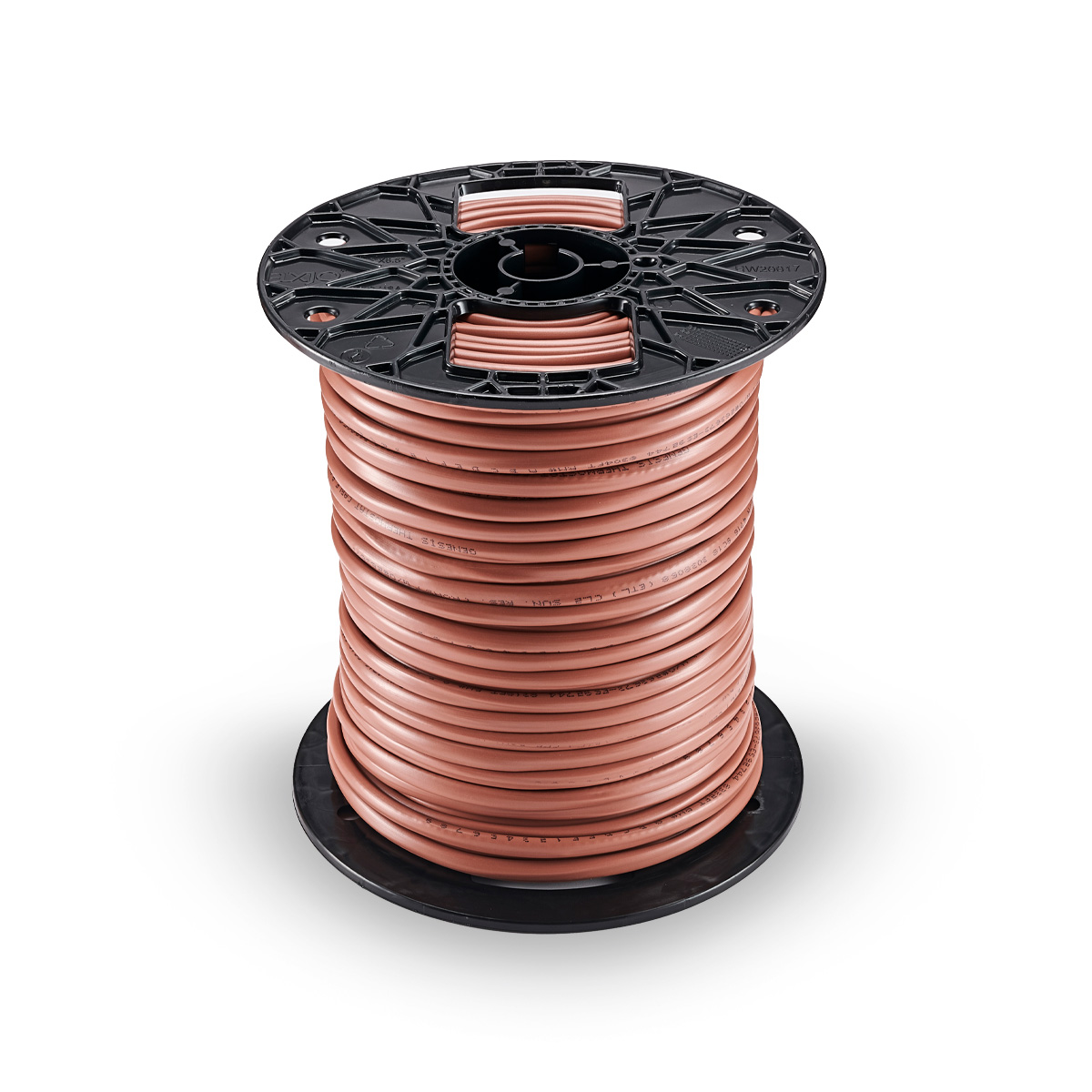

Genesis Cable 47160307 thermostat cable, general purpose 250 feet REPLACEMENT 47160307

Product Description

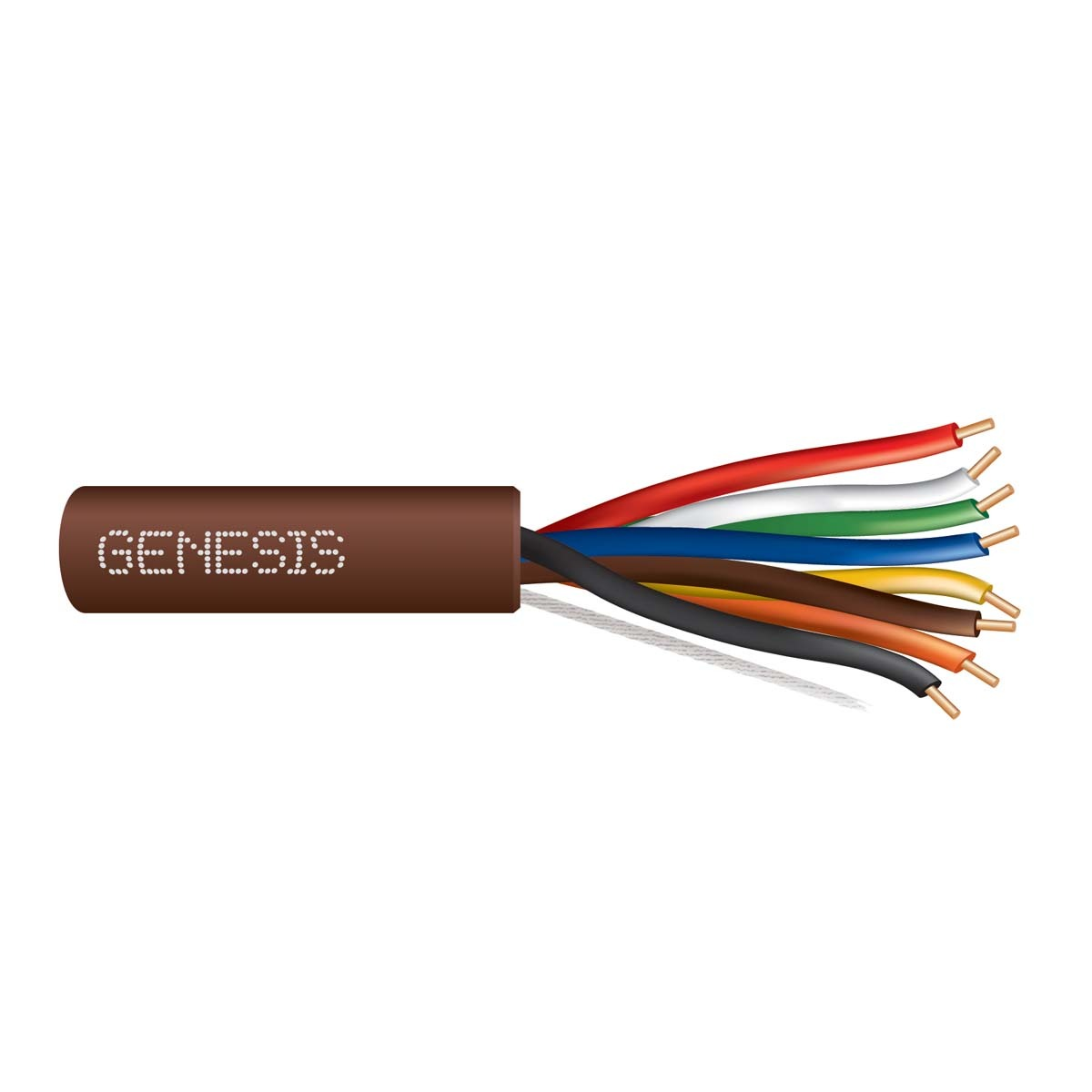

The Genesis Cable 47160307 is a general-purpose rated thermostat cable suitable for installation in metal raceways, solid bottom metal cable trays with solid metal covers, and within buildings. This unshielded cable guarantees reliable signal transmission between thermostats and heating/cooling systems. It is also suitable when exposed to sunlight.

• Features bare copper conductors for excellent conductivity and low voltage drop.
• Includes polypropylene insulation and a PVC jacket.
• Offers a durable rip cord for efficient jacket stripping and removal.

Product Highlights

This thermostat cable features sequential length marking for easy tracking of usage and is rated for 150 Volts and -20 °C to 60 °C.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 47160307
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 8
• Stranding: Solid
• Shielding: Unshielded
• Voltage Rating: 300 V
• Number of Conductors: 8
• Conductor Material: Copper
• Conductor Size: 18 AWG
• Outside Diameter: 0.204 in
• Length: 250 ft
• Insulation Thickness: 0.006 in
• Jacket Thickness: 0.015 in
• Solid/Stranded: Solid
• Resistance: 6.5 Ohm
• Capacitance: 25 pF/ft
• Impedance: 100 Ohm
• Insulation Material: PP
• Jacket Material: PVC
• Temperature Rating: -20 to 60 deg C
• Package Type: Reel
• ADI Part Number: WG-47160307
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 47160307
• Product Model: 47160307
• Product Name: 47160307 Control Cable
• Product Type: Thermostat Cables
• American Wire Gauge: 18AWG
• Armored: No
• Cable Rating: General Purpose
• Jacket Type: General Purpose
• TAA Compliant: Yes
• Cable Length: 250'
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
