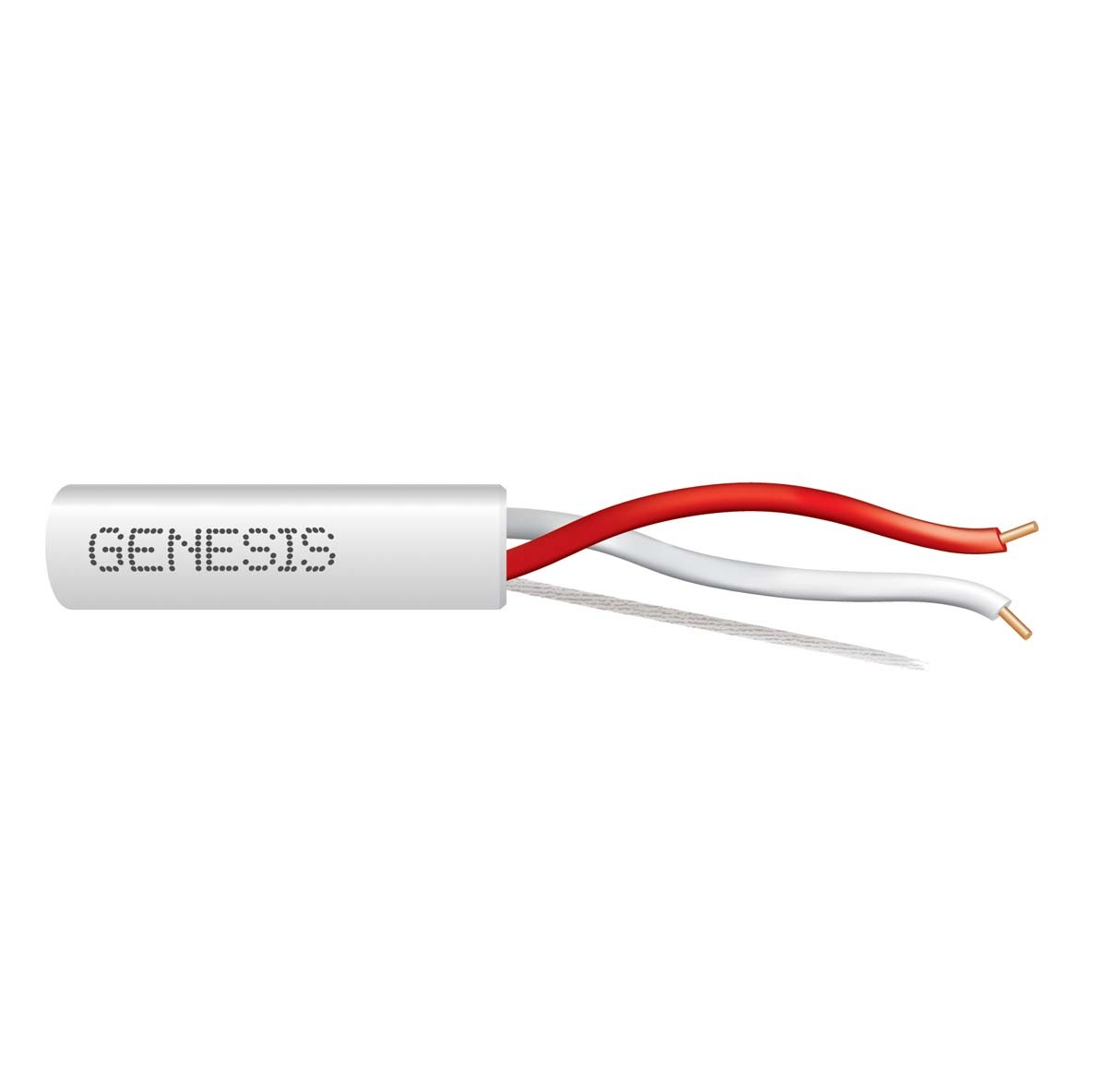

Genesis Cable 47104801 thermostat cable, general purpose 18 AWG 2/C 500 ft

SKU: 47104801
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$372.99
$372.99
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Genesis Cable 47104801 is a general-purpose-rated thermostat cable suitable for installation in metal raceways, solid bottom metal cable trays, and within buildings. It features bare copper conductors for excellent conductivity and low voltage drop. The cable is sunlight resistant and REACH/RoHS compliant.

  • Bare copper conductors for excellent conductivity
  • Polypropylene insulation
  • Durable rip cord for efficient jacket stripping

Product Highlights

This thermostat cable ensures reliable signal transmission between thermostats and heating/cooling systems. It is suitable for indoor use and has sequential length marking for easy tracking.

Product Information

Standard Information

  • Brand: Genesis Cable
  • Manufacturer Part Number: 47104801
  • Country of Origin: United States

Technical Specifications

  • Size (AWG or kcmil): 18 AWG
  • No. of Conductors: 2
  • Stranding: Solid
  • Shielding: Unshielded
  • Nominal Total Weight (lbs/1000'): 14
  • Rated for: -20 °C to 75 °C
  • Rated for Volts: 150 Volts
  • Insulation Material: Polypropylene
  • Jacket Material: PVC
  • Number of Conductors: 2
  • Outside Diameter: 0.136 in
  • Series: Genesis
  • Temperature Rating: -20 to 60 deg C
  • Voltage Rating: 300 VAC
  • Standard & Approvals: UL 13, NEC 725, UL 1685
  • Conductor Size: 18 AWG
  • Conductor Type: Solid Bare Copper
  • Cable Rating: General Purpose
  • Conductor Material: Bare Copper
  • Jacket Type: General Purpose
  • Number of Pairs: 1
  • American Wire Gauge: 18AWG
  • Cable Length: 500'
  • Environmental Certification: RoHS
  • Indoor/Outdoor: Indoor
  • type: General Purpose
  • temperature rating: -20 To 75 Deg C
