Genesis Cable 46065504 fire alarm shielded cable, plenum

Product Description

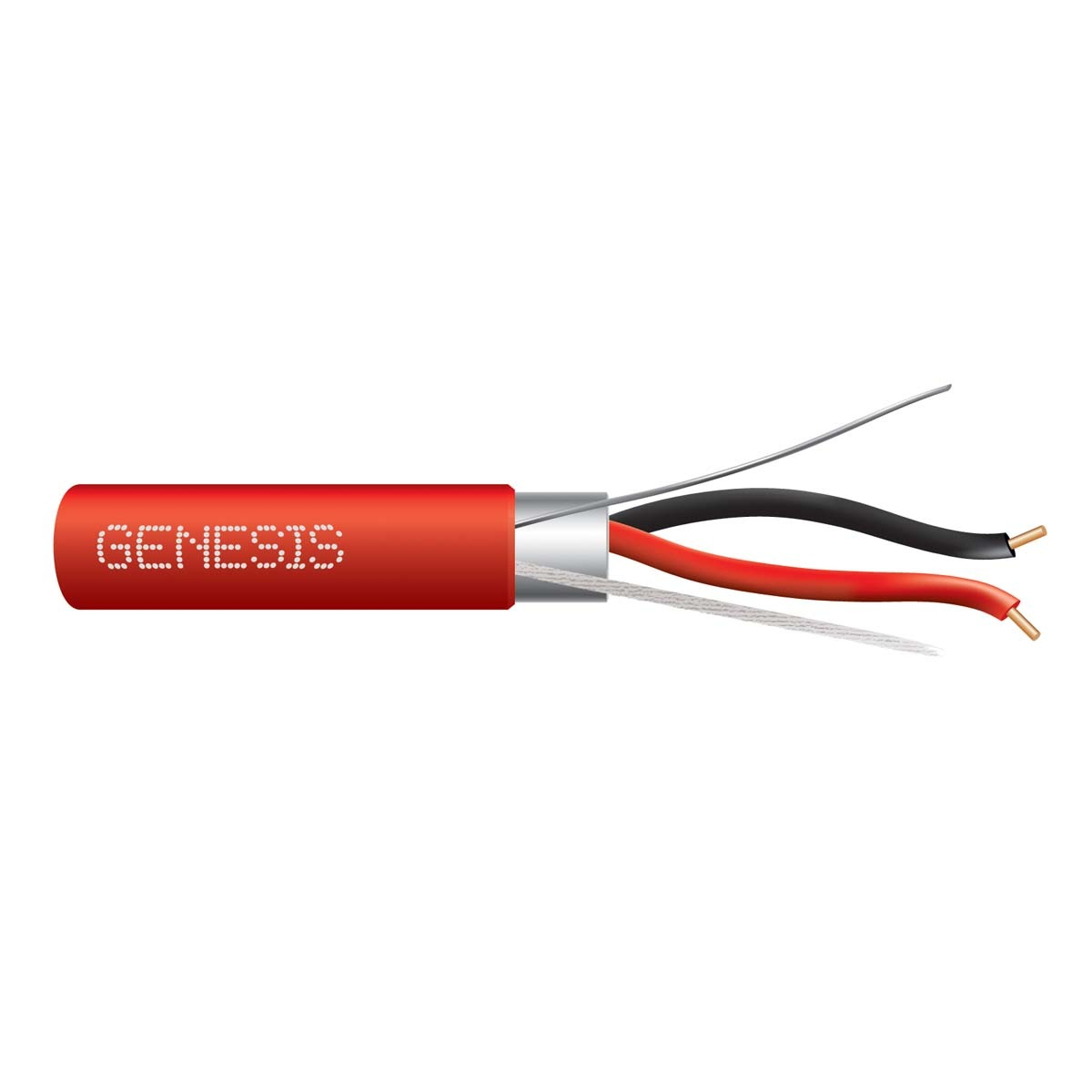

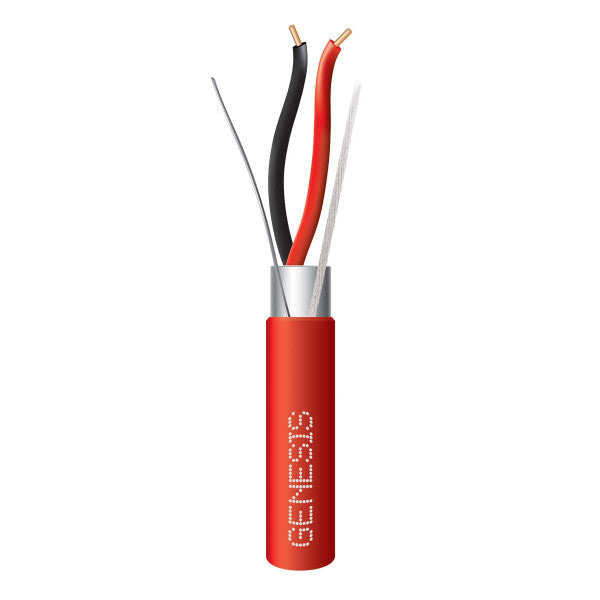

The Genesis Cable 46065504 is a plenum-rated shielded fire alarm cable suitable for installation in fabricated ducts, environmental air spaces, risers, and within buildings. This cable features bare copper conductors and low-smoke PVC insulation with a foil shield over all conductors and a plenum PVC jacket.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Foil shield over all conductors.

Product Highlights

This cable has a durable rip cord for efficient jacket stripping and removal, and is rated for 300 Volts and -20 °C to 75 °C.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 46065504
• Country of Origin: USA

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 2
• Stranding: Solid
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 25
• Cable Rating: Plenum
• Cable Listing: FPLP, CL3P, FT6
• Wire Gauge (AWG): 16
• Number of Strands: 1
• Conductor Material: Bare Copper
• Conductor Insulation Material: Plenum PVC
• Insulation Colors: Black, Red
• Shielding Type: Overall Foil
• Rip Cord: Yes
• Jacket Material: Plenum PVC
• Nominal Outer Diameter: 0.177 in.
• Rated Voltage (Max): 300 Volts
• DC Resistance (Max): 4.1 Ohms / 1000 ft. at 20 °C
• Capacitance (Nominal): 40.4 pF / ft.
• Impedance (Nominal): 38 Ohms
• Velocity of Propagation: 67%
• Temperature Rating (Max): 75 °C
• Temperature Rating (Min): -20 °C
• Product Length: 500 ft
• Length Per Unit: 500 ft.
• Package Quantity: 1
• Cable Packaging: Pull Box
• Device Supported: Fire Alarm
• Connector on Second End: Bare Wire
• Product Type: Control Cable
• Material: Polyvinyl Chloride (PVC) - Jacket
• Connector on First End: Bare Wire
• Conductor Count: 2
• Insulation Material: LS-PVC

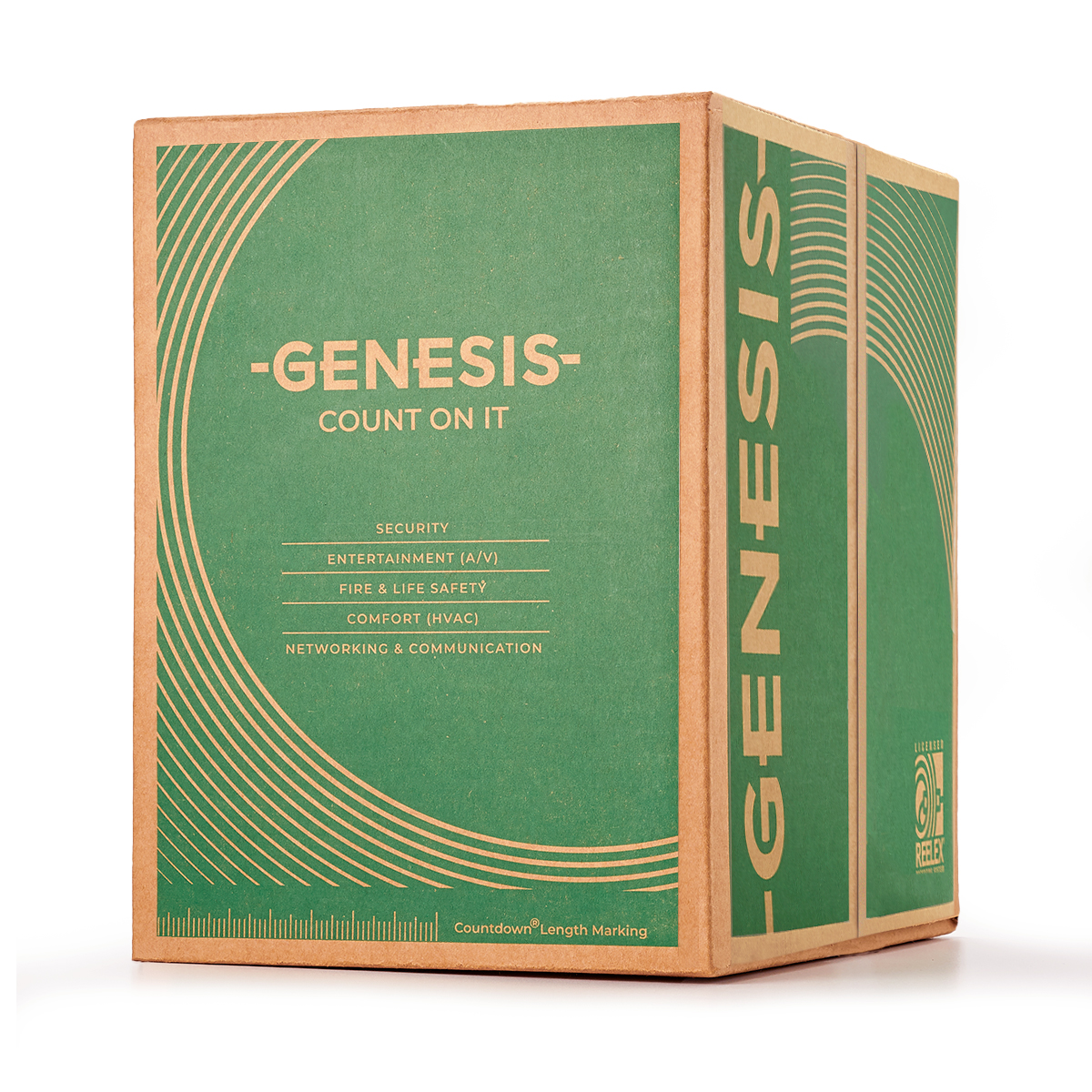

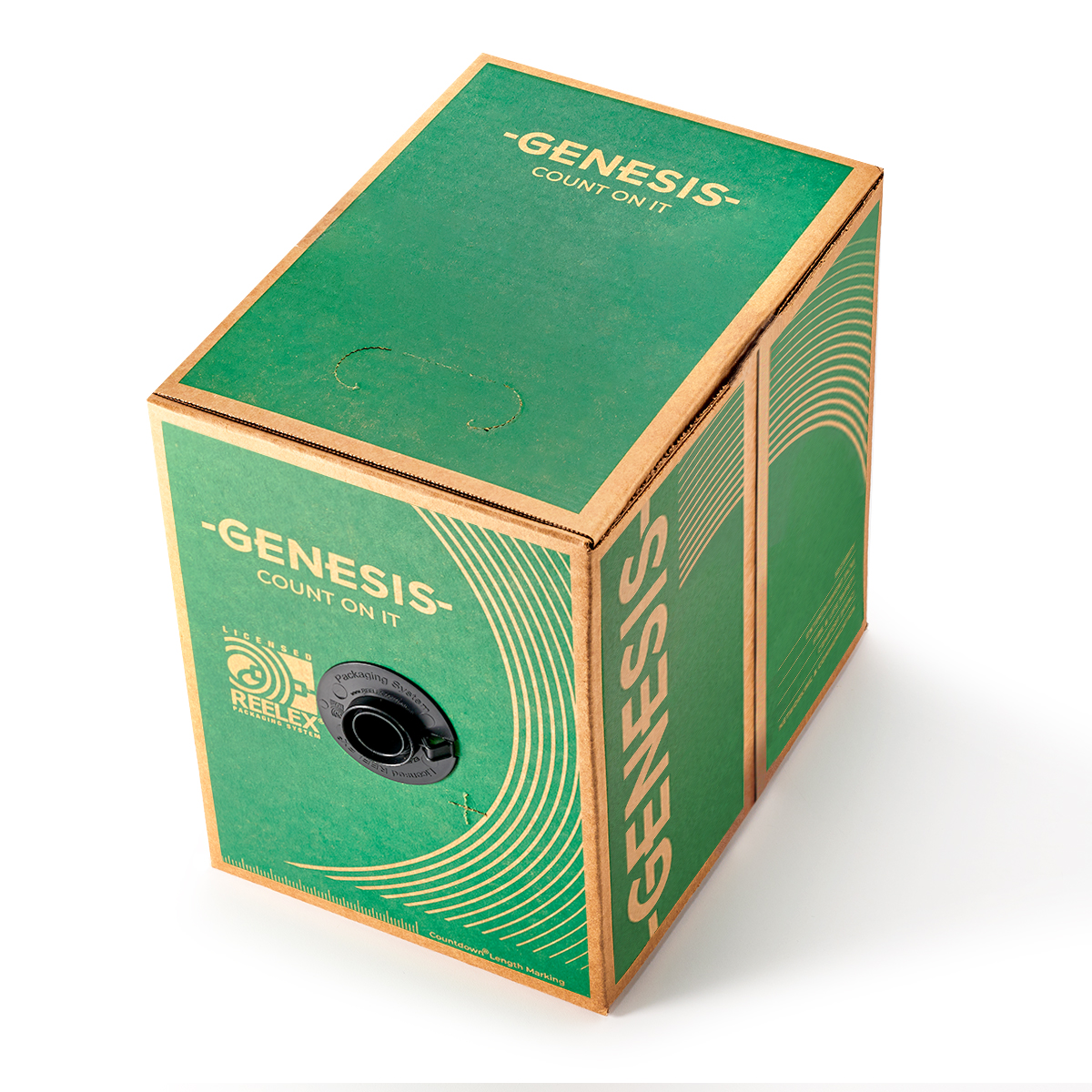

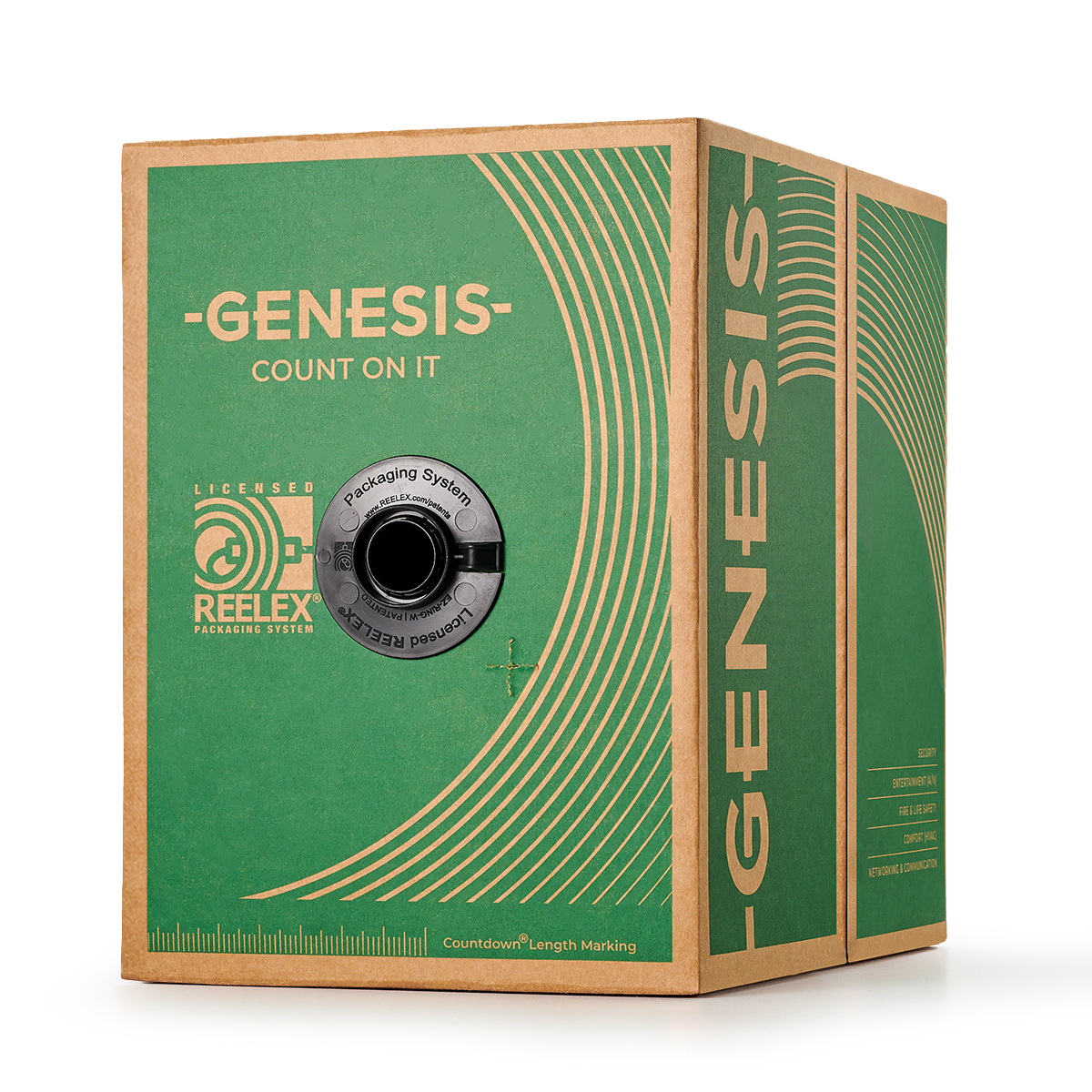

• Package Type: REELEX Pull Box
• Environmental Certification: RoHS
• Environmentally Friendly: Yes
• Indoor/Outdoor: Indoor
• TAA Compliant: Yes
