Product Description

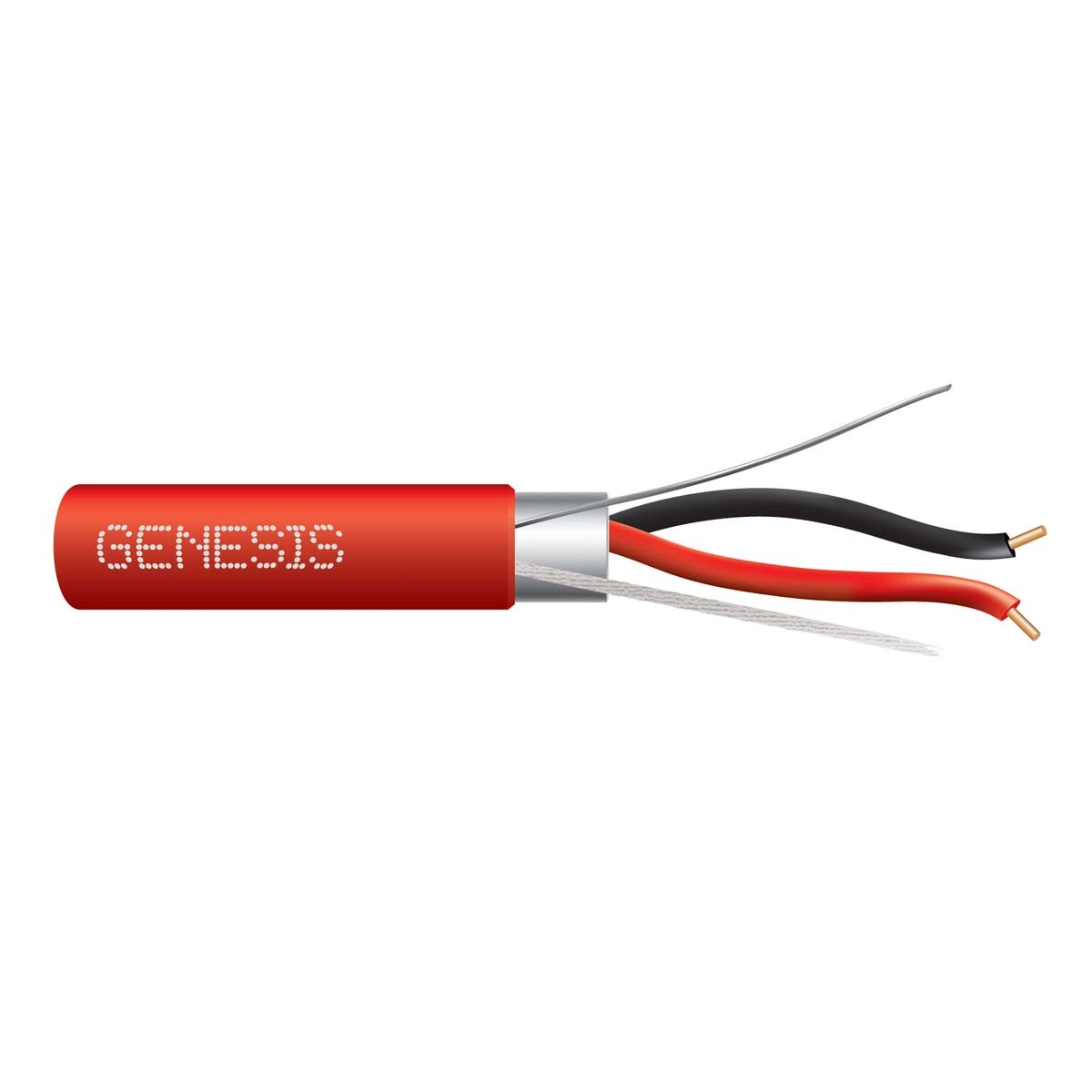

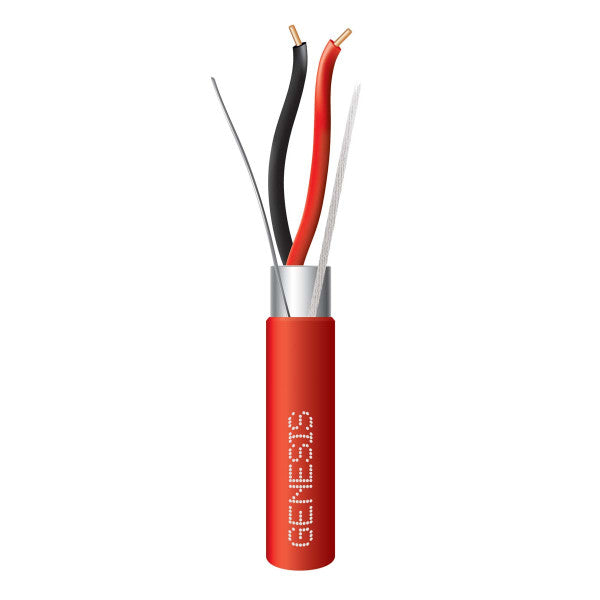

The Genesis Cable 46061104 is a 16/2 solid overall shielded cable with a length of 1000 feet. This cable is designed to ensure uninterrupted fire protection and exceeds the demands of rigorous fire safety codes and regulations. It is UL listed and made in the USA.
- Features bare copper conductors for excellent conductivity and low voltage drop
- Low-Smoke PVC insulation and a plenum PVC jacket
- Foil shield over all conductors
Product Highlights
This shielded fire alarm cable is suitable for use in ducts, environmental air spaces, risers, and within buildings. It features a durable rip cord for efficient jacket stripping and removal.
Product Information
Standard Information
-
Brand: Genesis Cable
-
Manufacturer Part Number: 46061104
-
Country of Origin: USA
Technical Specifications
-
Brand: Honeywell
-
Manufacturer: Genesis Cable
-
Model / MPN: 46061104
-
Product Type: 16/2 Wire
-
Product Group: Electronics
-
UPC: 619172017084
-
MPN: 46061104
-
ADI Part Number: WG-46061104
-
Packaged Quantity: 1
-
Product Model: 46061104
-
Product Name: 46061104 - 16 AWG 2C Sol Shielded Plenum, Red, 1000 ft. Pull Box
-
American Wire Gauge: 16AWG
-
Armored: No
-
Cable Rating: Plenum
-
Conductor Count: 2
-
Conductor Material: Bare Copper
-
Core/Cladding Diameter: 16/2
-
Jacket Material: LS-PVC
-
Jacket Type: Plenum
-
Number of Conductors: 2
-
Number of Pairs: 1
-
Shielding: Yes
-
Solid or Stranded: Solid
-
TAA Compliant: Yes
-
Cable Length: 1000'
-
Insulation Material: LS-PVC
-

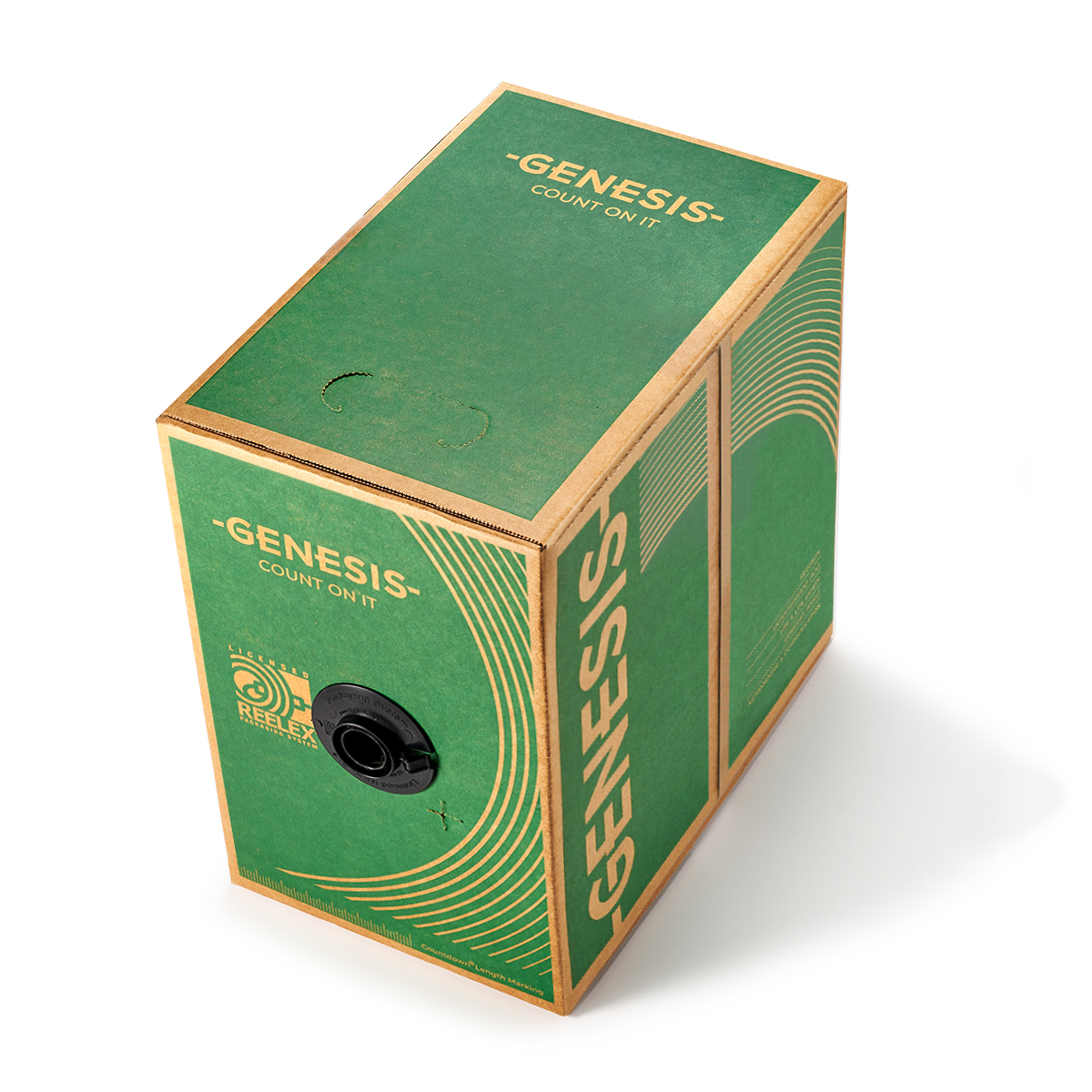

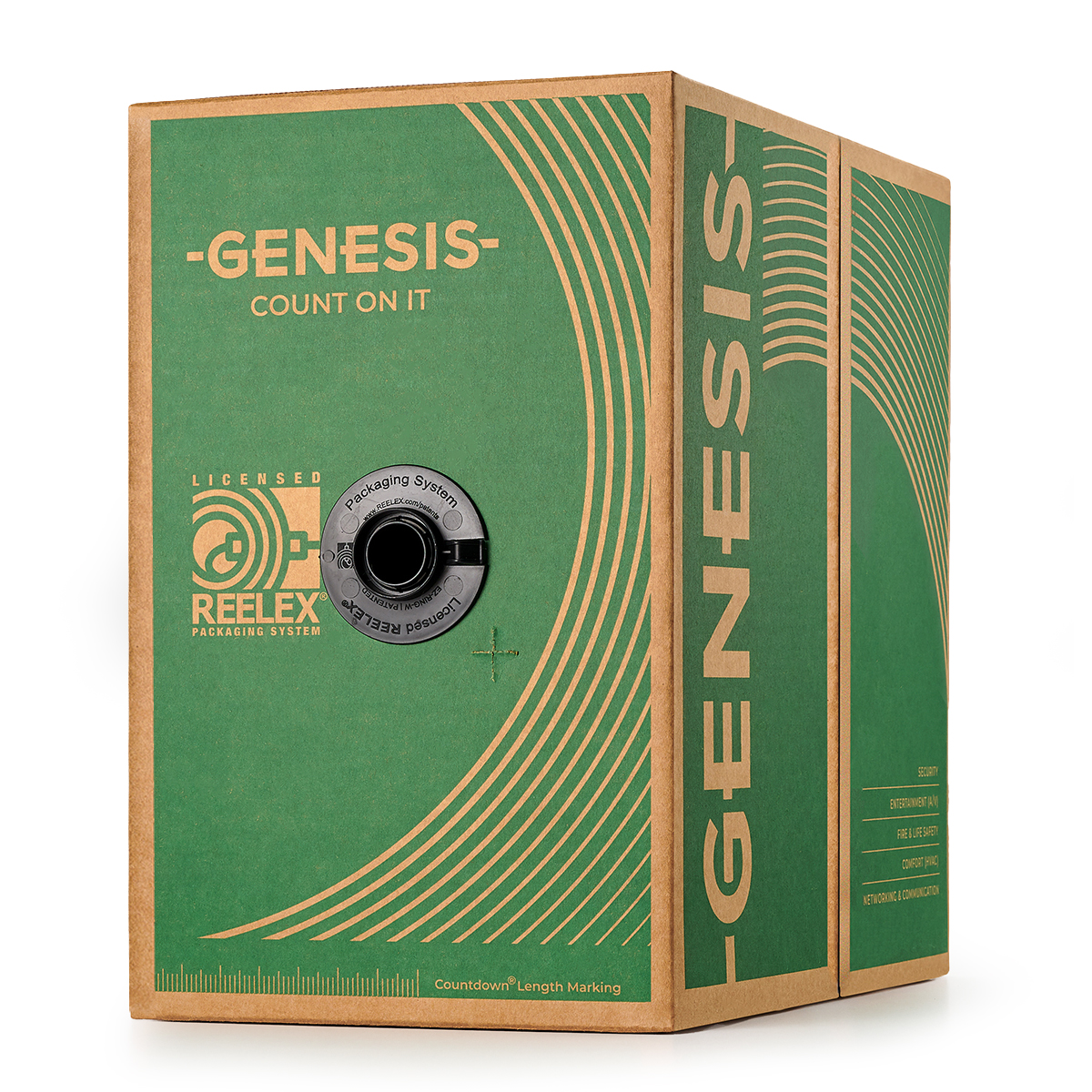

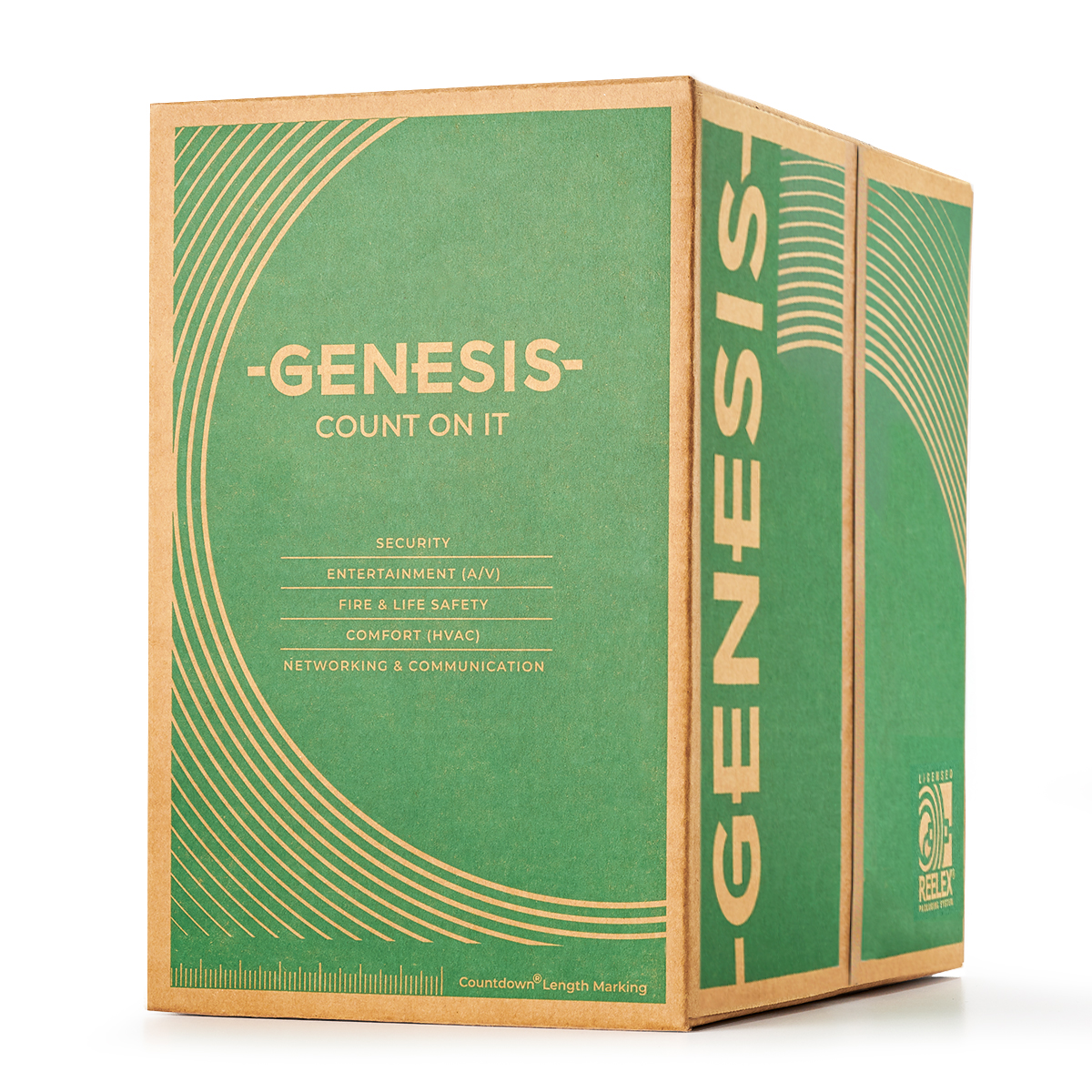

Package Type: REELEX Pull Box
-
Environmental Certification: RoHS
-
Indoor/Outdoor: Indoor
-
Nominal Total Weight (lbs/1000'): 25
-
Connector on Second End: Bare Wire
-
Device Supported: Fire Alarm
-
Material: Polyvinyl Chloride (PVC) - Jacket
-
Connector on First End: Bare Wire
-
Supplier Part Number: 46061104
-
Short Code: 58862
-
Discontinued: N
-
Type: Solid
-
Length: 1000Ft.
-
Insulation: Plenum PVC (0.009" nom.)
-
Insulation Colors: Black, Red
-
Lay Length: 2.75" nom.
-
Overall Diameter: 0.177" nom.
-
Operating Voltage: 300 Volts max.
-
DC Resistance: 4.1 Ohms/1000' at 20°C
-
Capacitance: 40.4 pF/ft. nom.
-
Impedance: 38 Ohms nom.
-
Temperature: -20°C to 75°C
-
Flame Rating: NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
-
RoHS Compliant: Yes
-
Country of Origin: USA
